Connector Identification

CONNECTOR IDENTIFICATION DIRECTORY

Connector	See
A/C Clutch Relay	Fig 1-Fig 2
Auto Shutdown (ASD) Relay	Fig 34
Camshaft Sensor	Fig 4
Crankshaft Sensor	Fig 5
Distributor Connector	Fig 6
Engine Coolant Temperature (ECT) Sensor	Fig 8
Evaporative Purge Solenoid	Fig 9
Exhaust Gas Recirculation (EGR) Solenoid	Fig 7
Fuel Pump	Fig 10
Fuel Pump Relay	Fig 11
Idle Air Control (IAC) Motor	Fig 12
Ignition Coil	Fig 13
Intake Air Temperature (IAT) Sensor	Fig 14
Manifold Absolute Pressure (MAP) Sensor	Fig 15
Oxygen Sensor	Fig 16
Radiator Fan Relay	Fig 17-Fig 18
Torque Converter Clutch (TCC) Relay	Fig 19
Torque Converter Clutch (TCC) Solenoid	Fig 20
Throttle Position Sensor (TPS)	Fig 21
Transmission Solenoid	Fig 22
Powertrain Control Module (PCM)	Fig 23

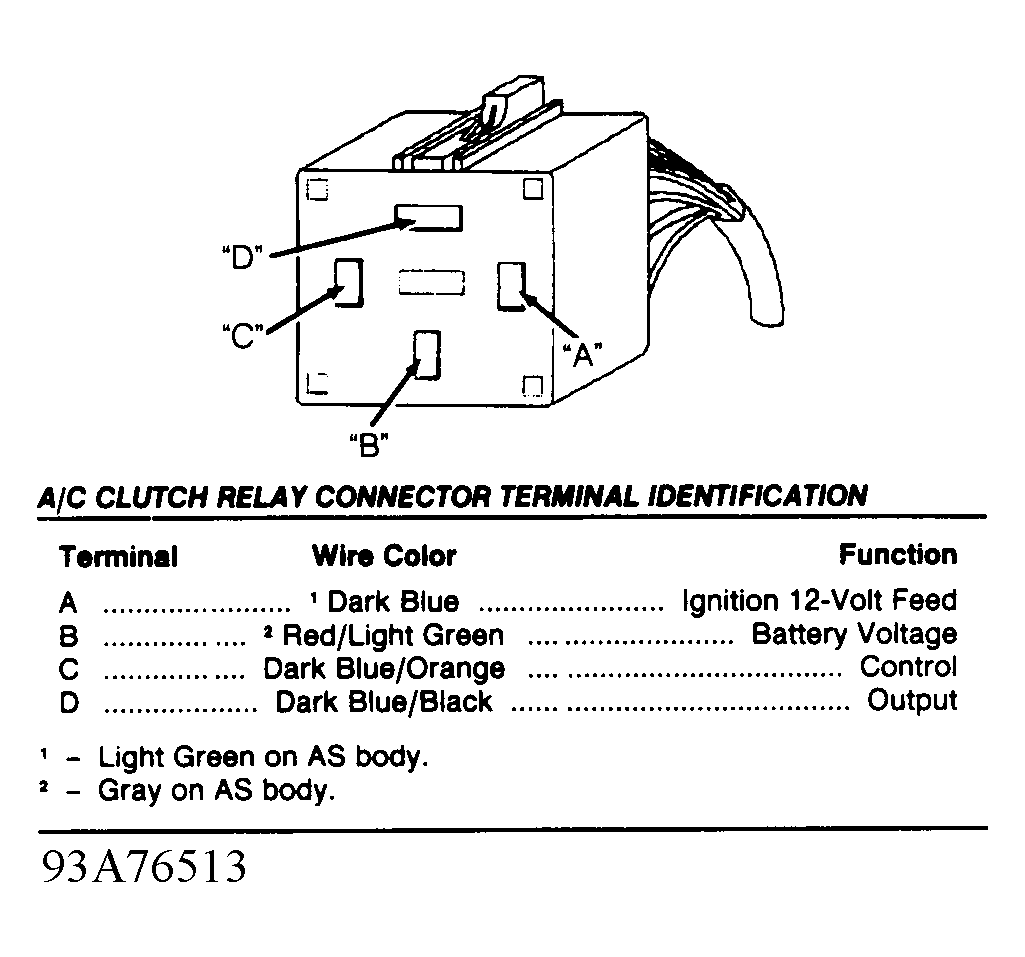

Fig 1: A/C Clutch Relay Connector Terminal ID (Except Dakota)

Courtesy of CHRYSLER CORP.

A/C CLUTCH RELAY CONNECTOR TERMINAL ID (EXCEPT DAKOTA)

Terminal

Wire Color

Function

⁽¹⁾ Dark Blue

Ignition 12-Volt Feed

⁽²⁾ RedLight Green

Battery Voltage

Dark Blue/Orange

Control

Dark Blue/Black

Output

⁽¹⁾	Light Green on AS body.

⁽²⁾	Gray on AS body.

Fig 2: Identifying A/C Clutch Relay Connector Terminals (Dakota)

Courtesy of CHRYSLER CORP.

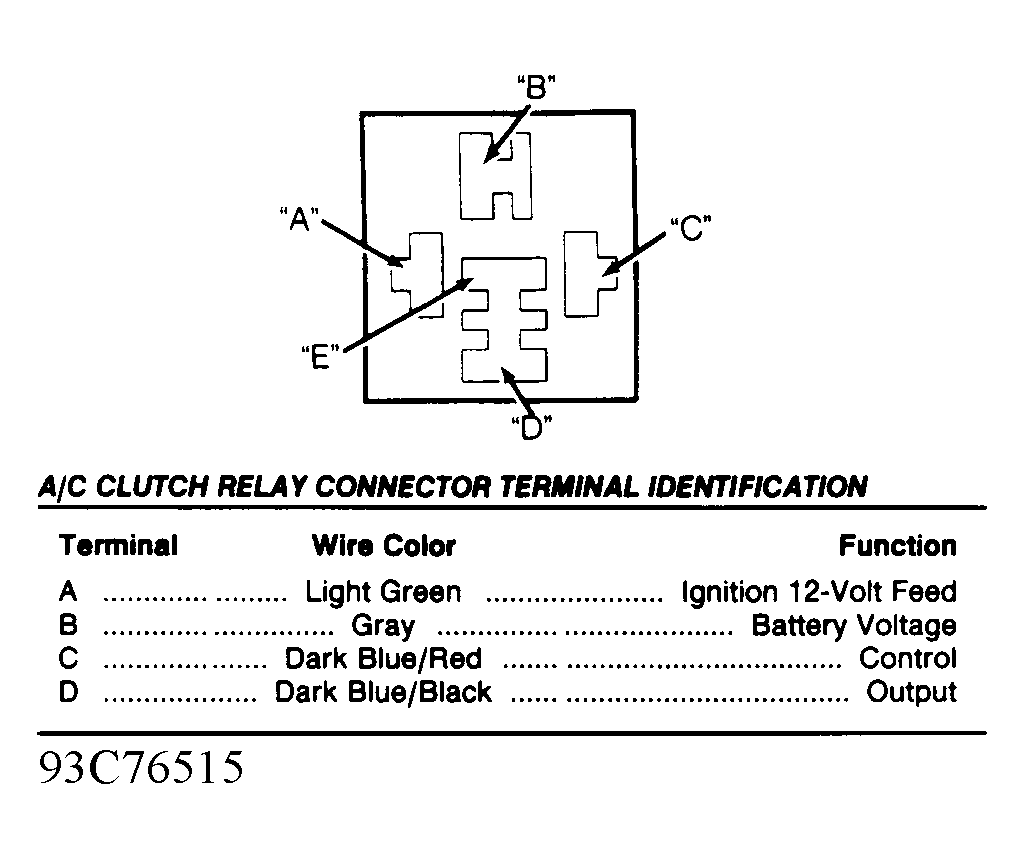

A/C CLUTCH RELAY CONNECTOR TERMINAL IDENTIFICATION (DAKOTA)

Terminal	Wire Color	Function
A	Light Green	Ignition 12-Volt Feed
B	Gray	Battery Voltage
C	Dark Blue/Red	Control
D	Dark Blue/Black	Output

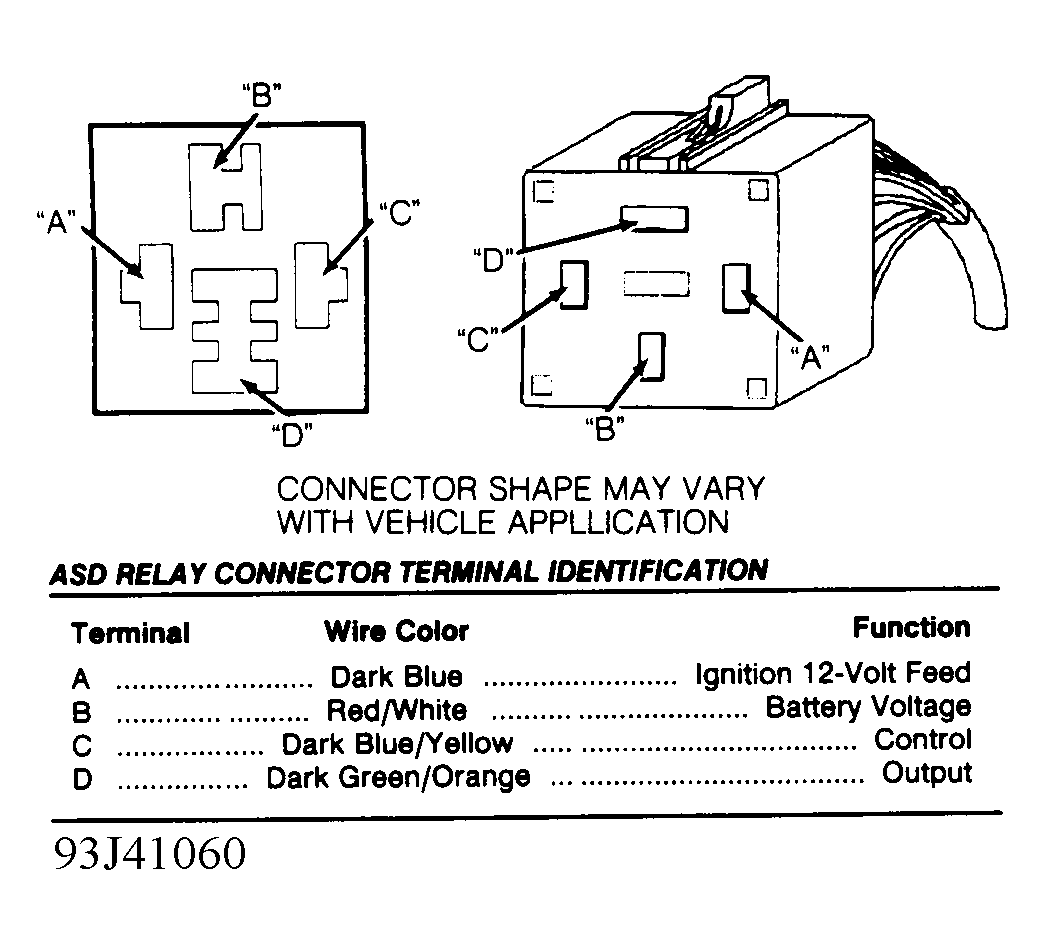

Fig 3: Identifying ASD Relay Connector Terminals

Courtesy of CHRYSLER CORP.

ASD RELAY CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
A	Dark Blue	Ignition 12-Volt Feed
B	Red/White	Battery Voltage
C	Dark Blue/Yellow	Control
D	Dark Green/Orange	Output

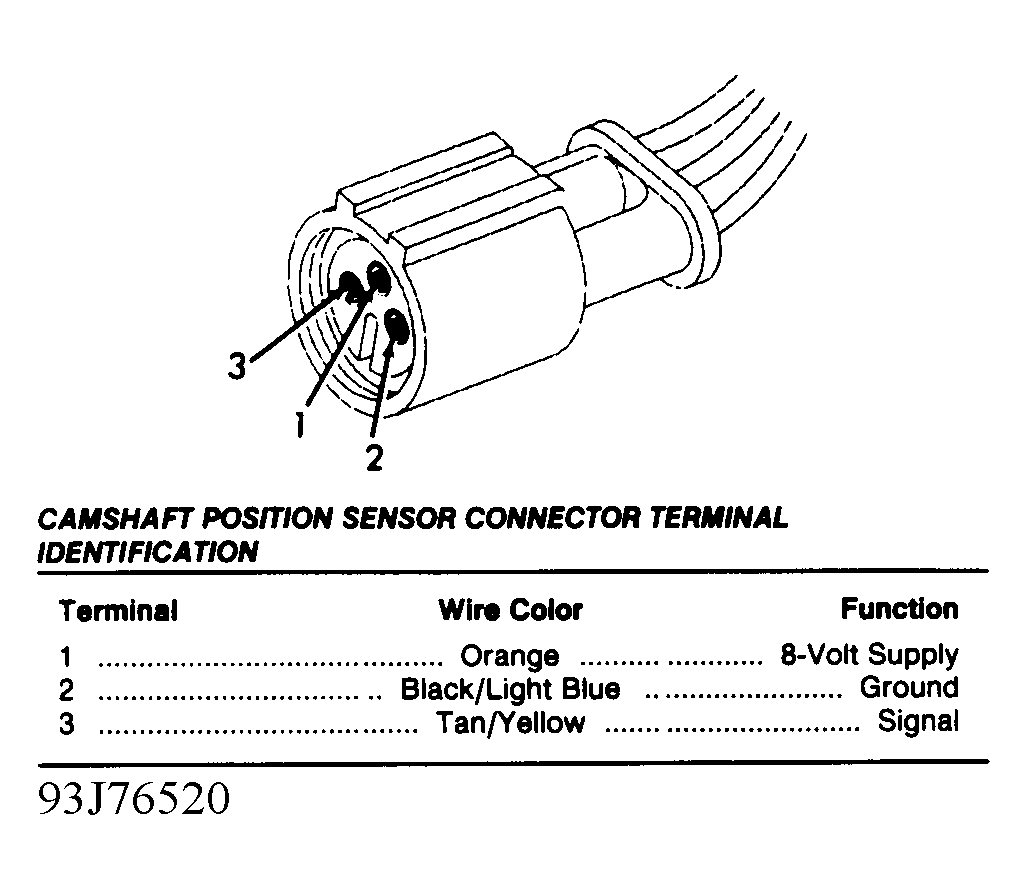

Fig 4: Identifying Camshaft Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

CAMSHAFT POSITION SENSOR CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Orange	8-Volt Supply
2	Black/Light Blue	Ground
3	Tan/Yellow	Signal

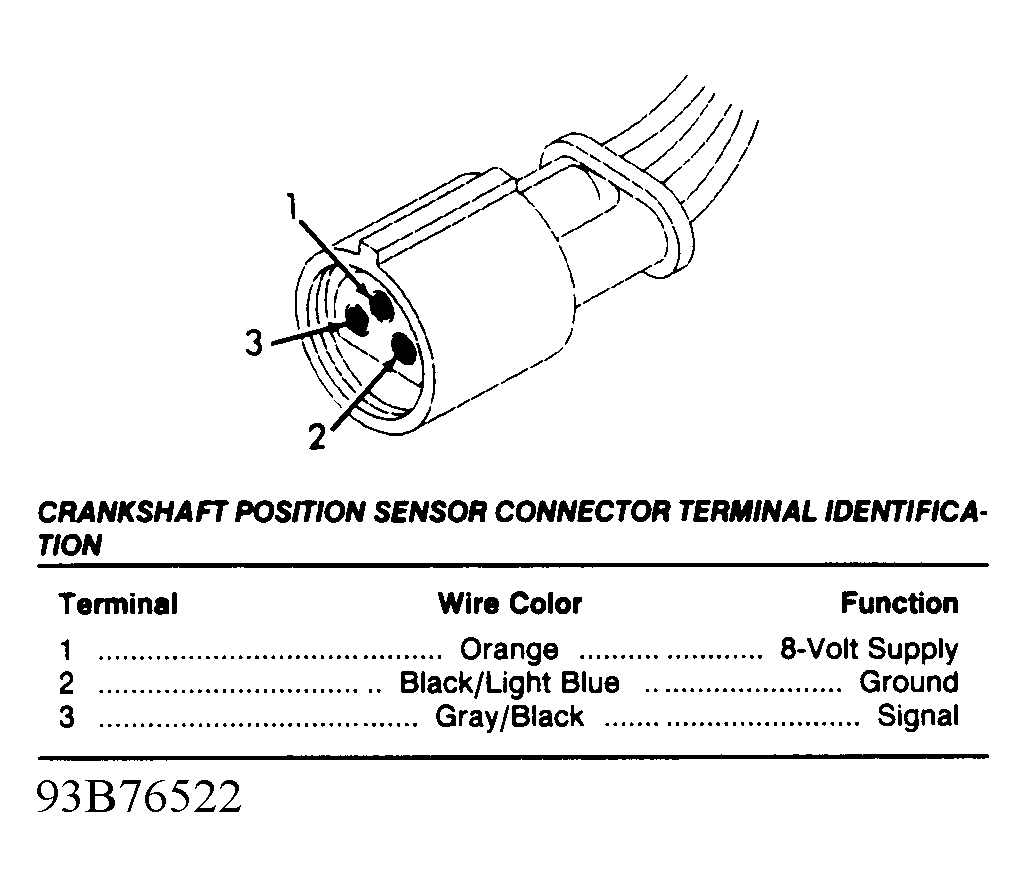

Fig 5: Identifying Crankshaft Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

CRANKSHAFT POSITION SENSOR CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Orange	8-Volt Supply
2	Black/Light Blue	Ground
3	Gray/Black	Signal

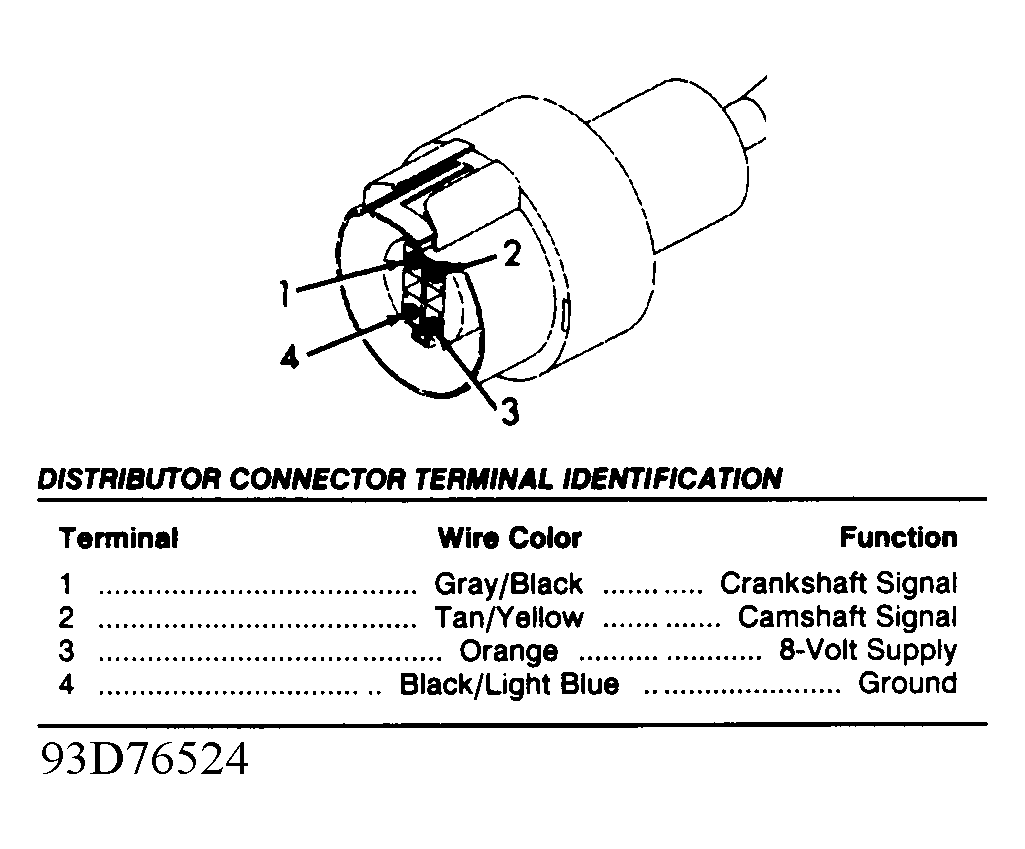

Fig 6: Identifying Distributor Connector Terminals

Courtesy of CHRYSLER CORP.

DISTRIBUTOR CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Gray/Black	Crankshaft Signal
2	Tan/Yellow	Camshaft Signal
3	Orange	8-Volt Supply
4	Black/Light Blue	Ground

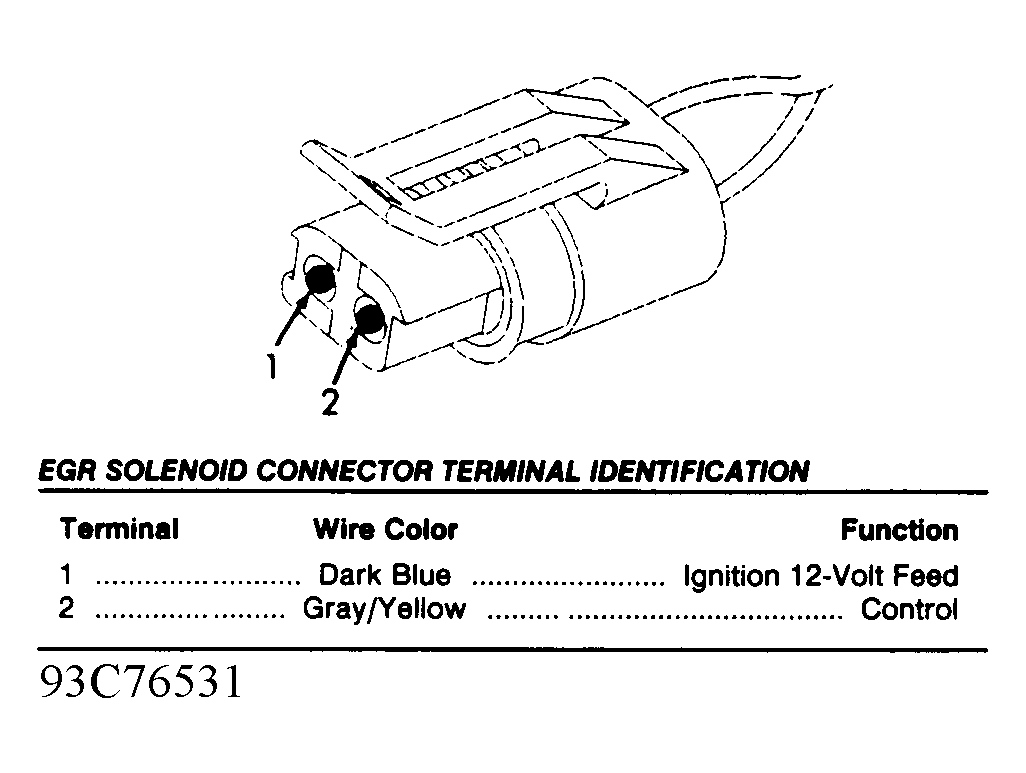

Fig 7: Identifying EGR Solenoid Connector Terminals

Courtesy of CHRYSLER CORP.

EGR SOLENOID CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Dark Blue	Ignition 12-Volt Feed
2	Gray/Yellow	Control

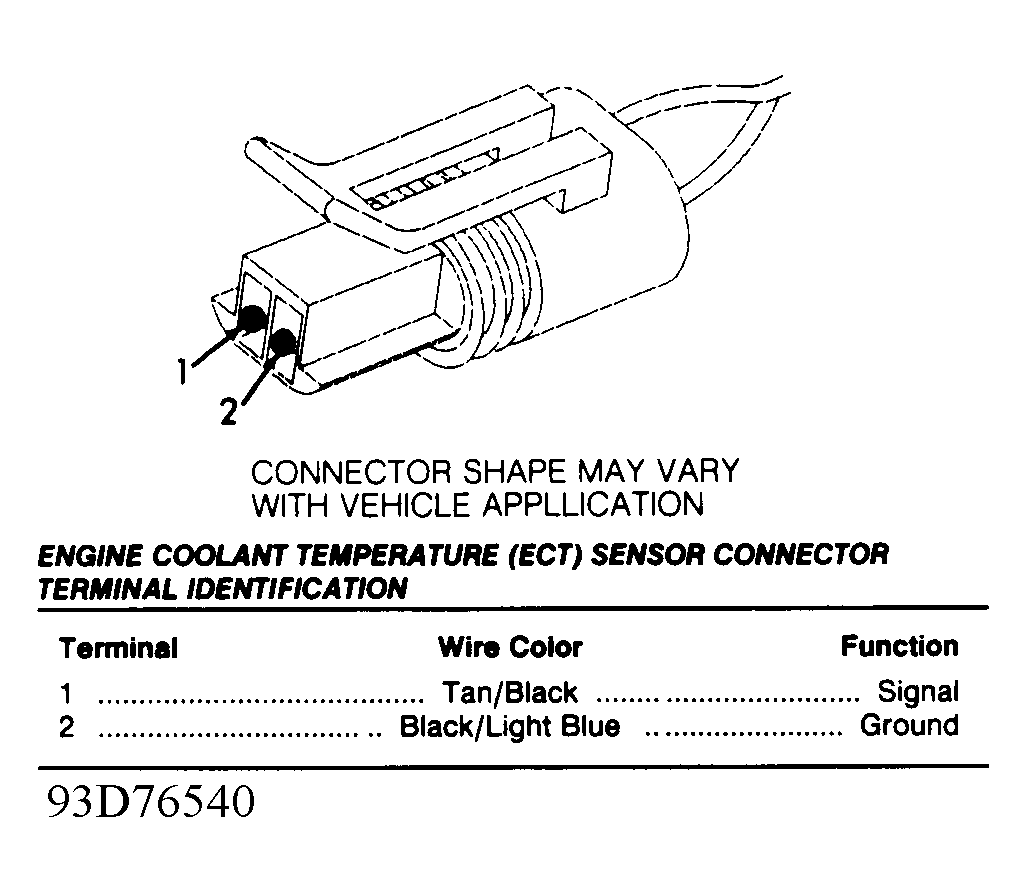

Fig 8: Engine Coolant Temp. (ECT) Sensor Connector Terminal ID

Courtesy of CHRYSLER CORP.

ENGINE COOLANT TEMPERATURE (ECT) SENSOR CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Tan/Black	Signal
2	Black/Light Blue	Ground

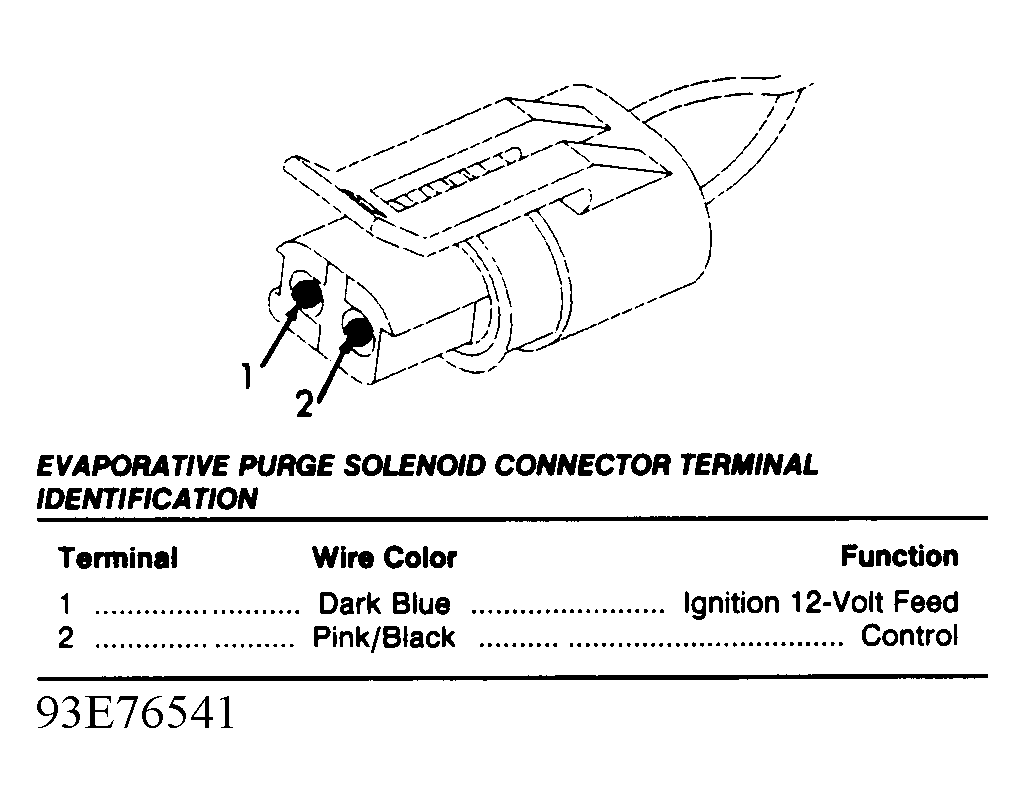

Fig 9: Identifying Evaporative Purge Solenoid Connector Terminals

Courtesy of CHRYSLER CORP.

EVAPORATIVE PURGE SOLENOID CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Dark Blue	Ignition 12-Volt Feed
2	Pink/Black	Control

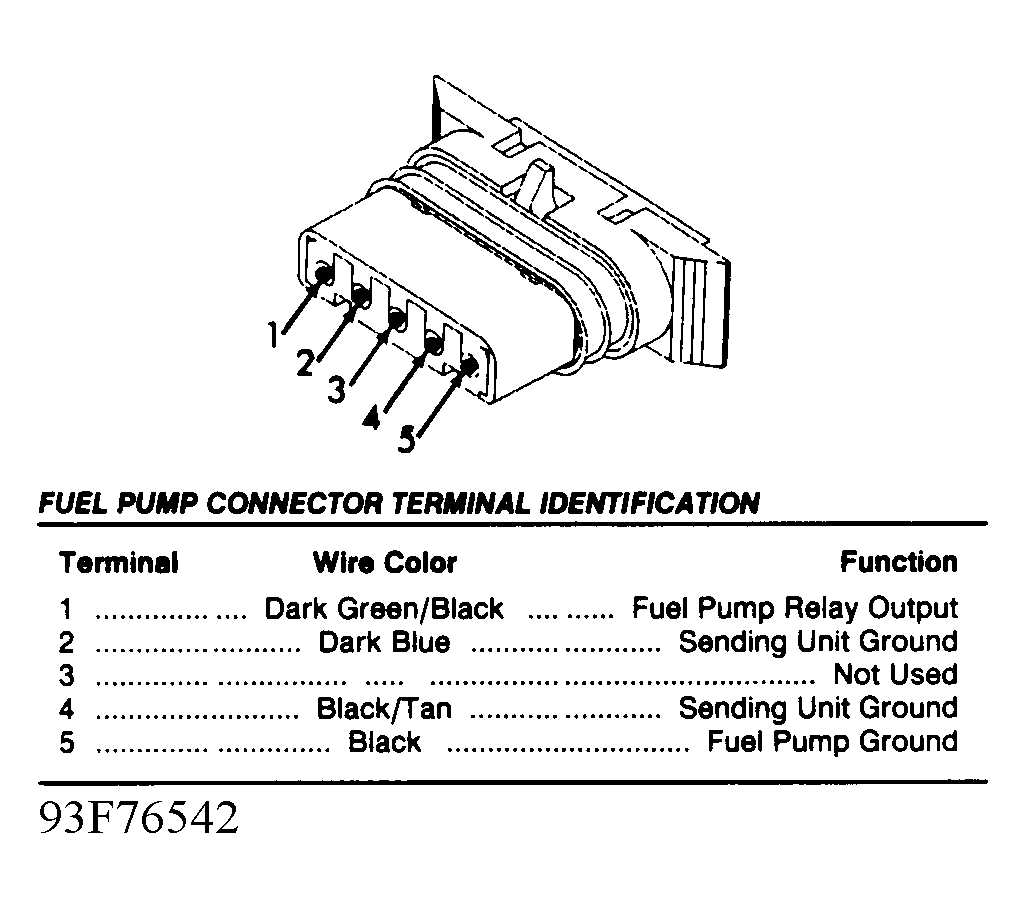

Fig 10: Identifying Fuel Pump Connector Terminals

Courtesy of CHRYSLER CORP.

FUEL PUMP CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Dark Green/Black	Fuel Pump Relay Output
2	Dark Blue	Sending Unit Ground
3	n/a	Not Used
4	Black/Tan	Sending Unit Ground
5	Black	Fuel Pump Ground

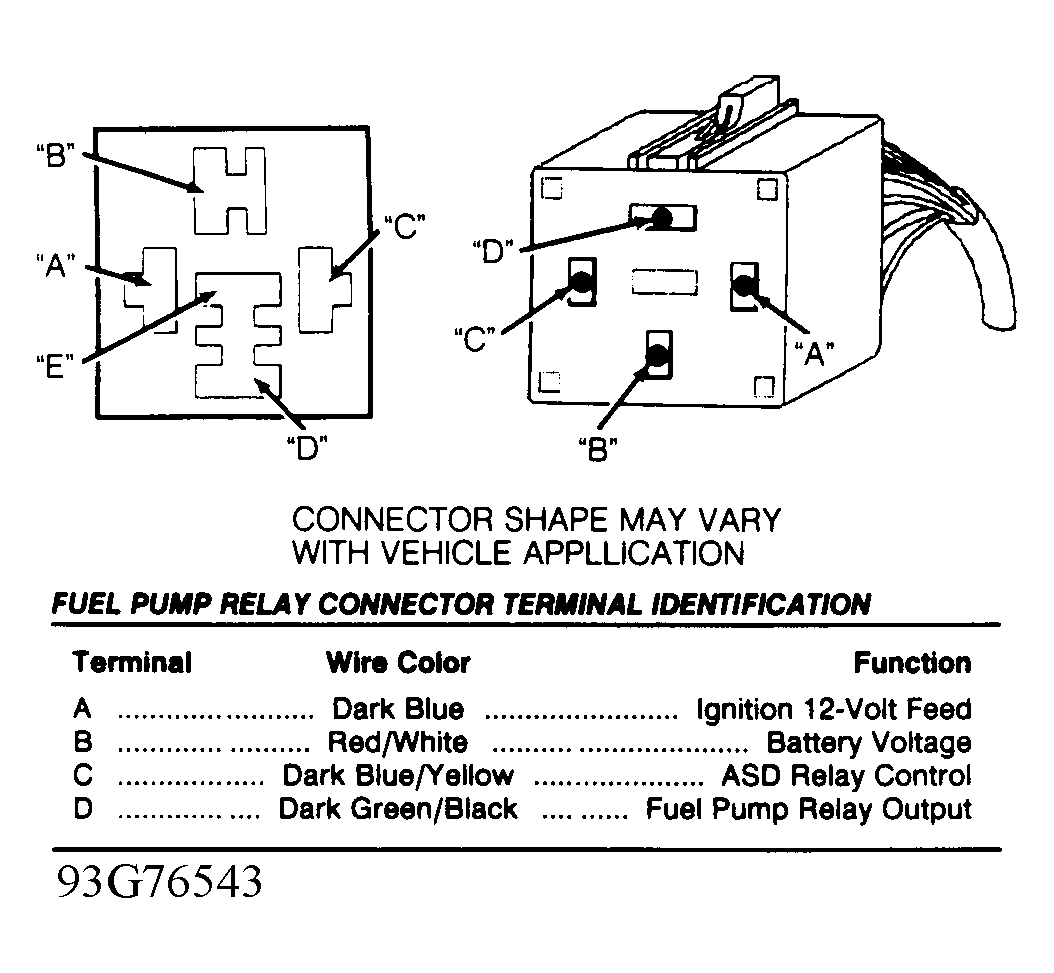

Fig 11: Identifying Fuel Pump Relay Connector Terminals

Courtesy of CHRYSLER CORP.

FUEL PUMP RELAY CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
A	Dark Blue	Ignition 12-Volt Feed
B	Red/White	Battery Voltage
C	Dark Blue/Yellow	ASD Relay Control
D	Dark Green/Black	Fuel Pump Relay Output
E	n/a	Not Used

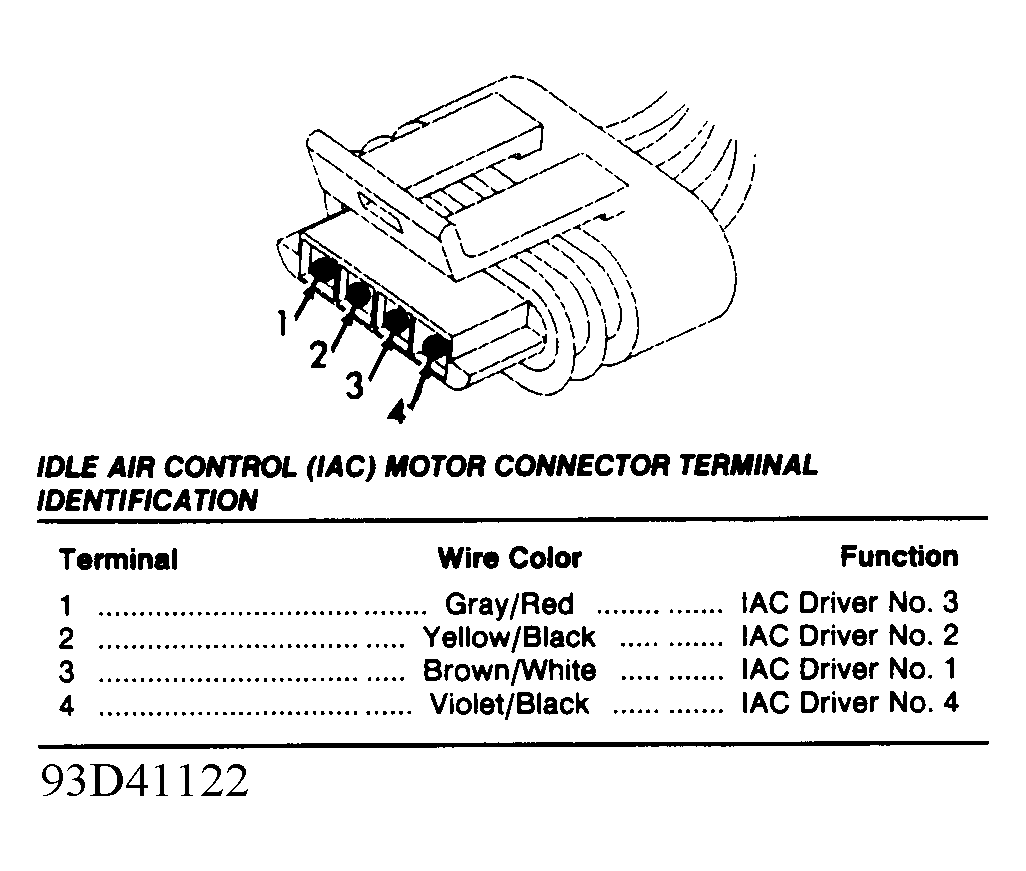

Fig 12: Identifying Idle Air Control (IAC) Motor Connector Terminals

Courtesy of CHRYSLER CORP.

IDLE AIR CONTROL (IAC) MOTOR CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Gray/Red	IAC Driver No. 3
2	Yellow/Black	IAC Driver No. 2
3	Brown/White	IAC Driver No. 1
4	Violet/Black	IAC Driver No. 4

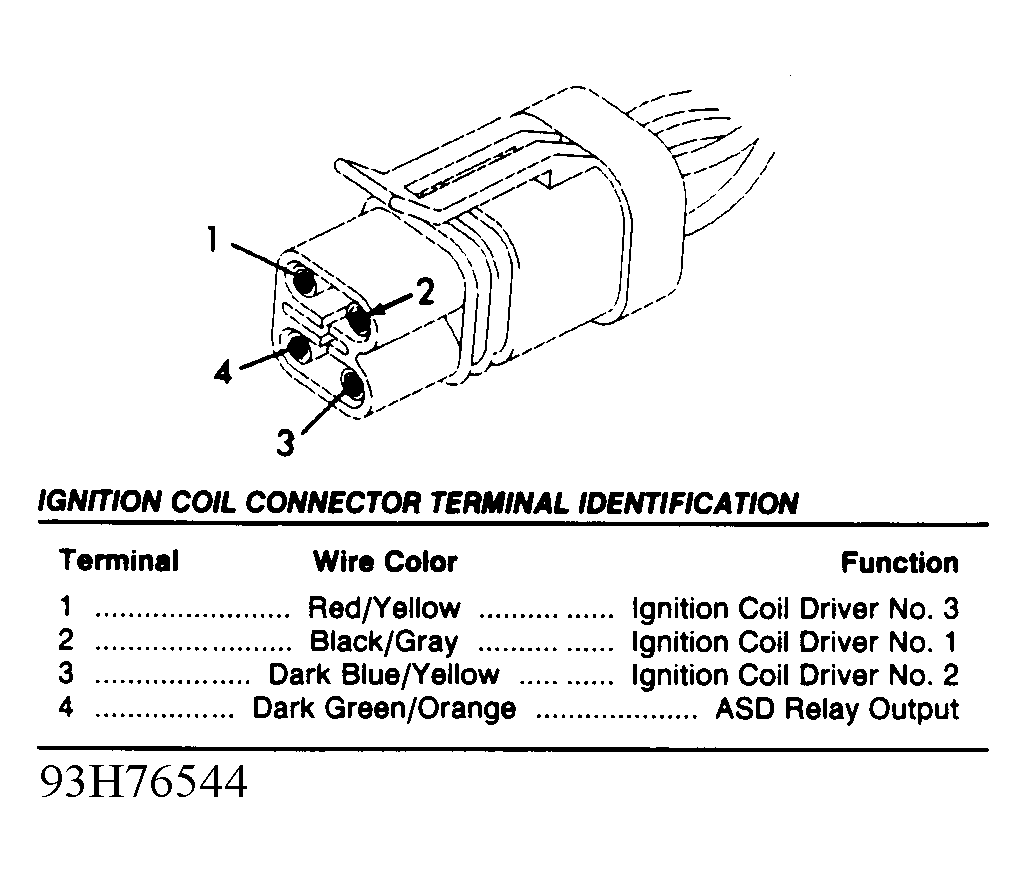

Fig 13: Identifying Ignition Coil Connector Terminals

Courtesy of CHRYSLER CORP.

IGNITION COIL CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Red/Yellow	Ignition Coil Driver No. 3
2	Black/Gray	Ignition Coil Driver No. 1
3	Dark Blue/Yellow	Ignition Coil Driver No. 2
4	Dark Green/Orange	ASD Relay Output

Fig 14: Identifying Intake Air Temperature Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

INTAKE AIR TEMPERATURE SENSOR CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Black/Red	Signal
2	Black/Light Blue	Ground

Fig 15: Identifying Manifold Absolute Pressure (MAP) Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

MAP SENSOR CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Black/Light Blue	Ground
2	Dark Green/Red	Signal
3	Violet/White	5-Volt Supply

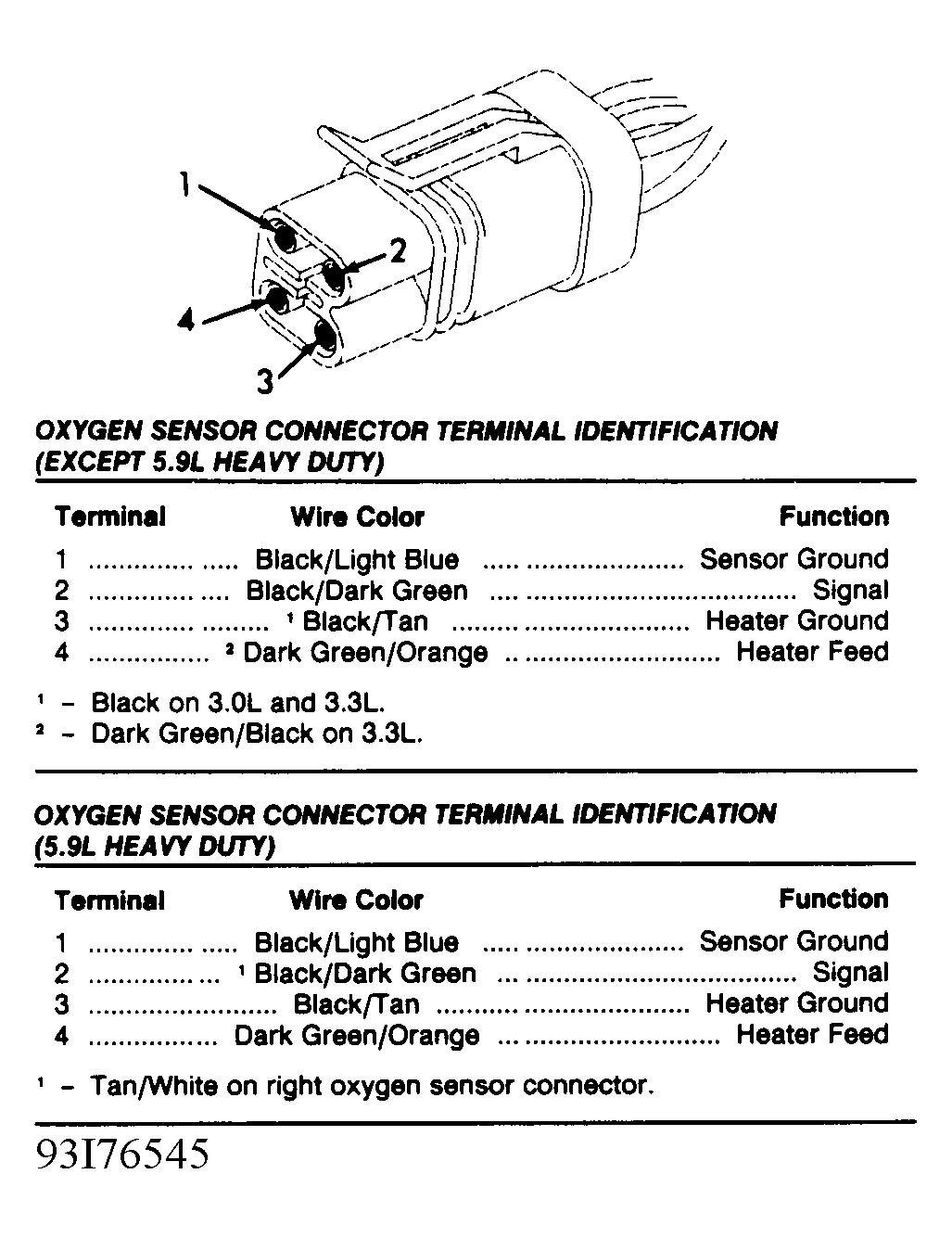

Fig 16: Identifying Oxygen Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

OXYGEN SENSOR CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Black/Light Blue	Sensor Ground
2	Black/Dark Green	Signal
3	Black/Tan	Heater Ground
4	Dark Green/Orange	Heater Feed

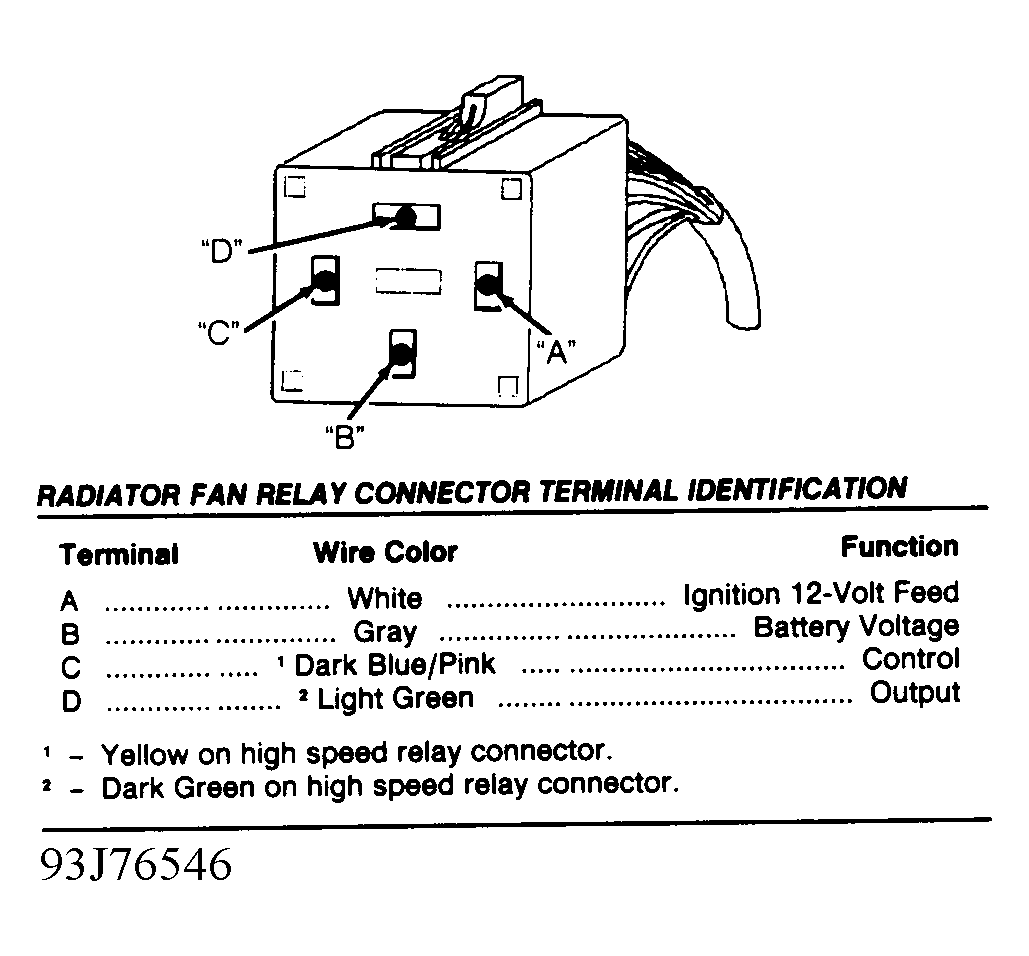

Fig 17: Identifying Radiator Fan Relay Connector Terminals (AS Body)

Courtesy of CHRYSLER CORP.

RADIATOR FAN RELAY CONNECTOR TERMINAL IDENTIFICATION (AS BODY)

Terminal

Wire Color

Function

White

Ignition 12-Volt Feed

Gray

Battery Voltage

⁽¹⁾ Dark Blue/Pink

Control

⁽²⁾ Light Green

Output

⁽¹⁾	Yellow on high speed relay connector.

⁽²⁾	Dark Green on high speed relay connector.

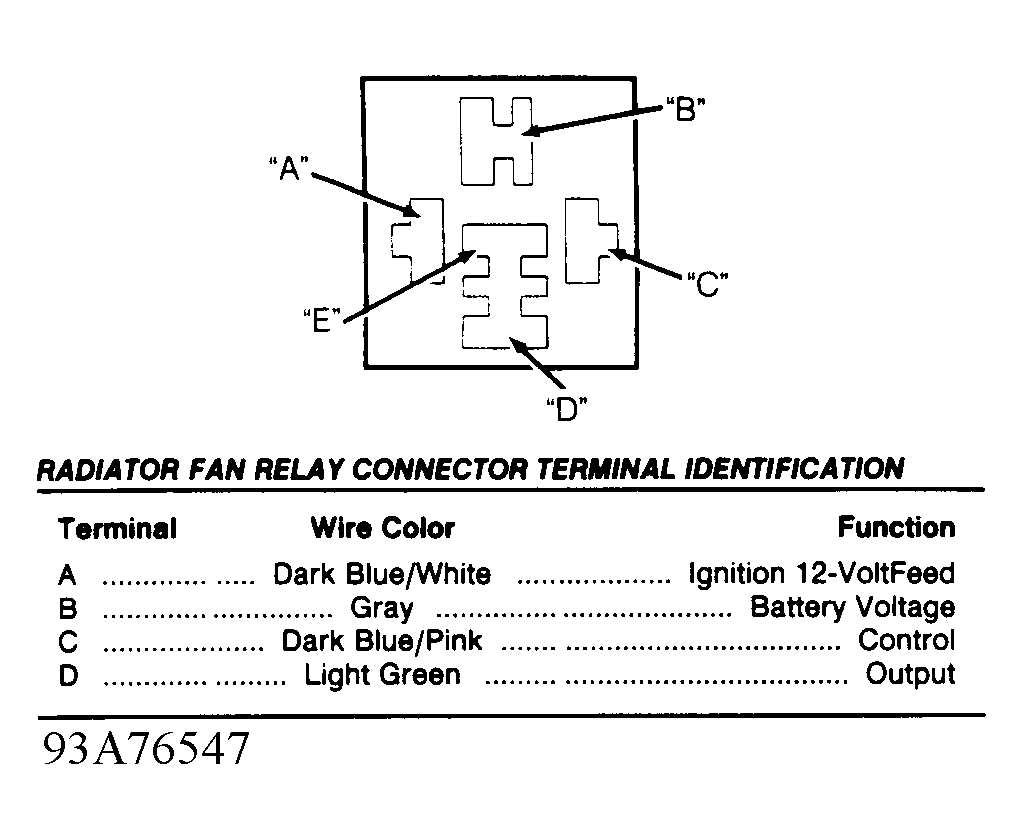

Fig 18: Identifying Radiator Fan Relay Connector Terminals (AN Body)

Courtesy of CHRYSLER CORP.

RADIATOR FAN RELAY CONNECTOR TERMINAL ID (AN BODY)

Terminal	Wire Color	Function
A	Dark Blue/White	Ignition 12-Volt Feed
B	Gray	Battery Voltage
C	Dark Blue/Pink	Control
D	Light Green	Output
E	n/a	Not Used

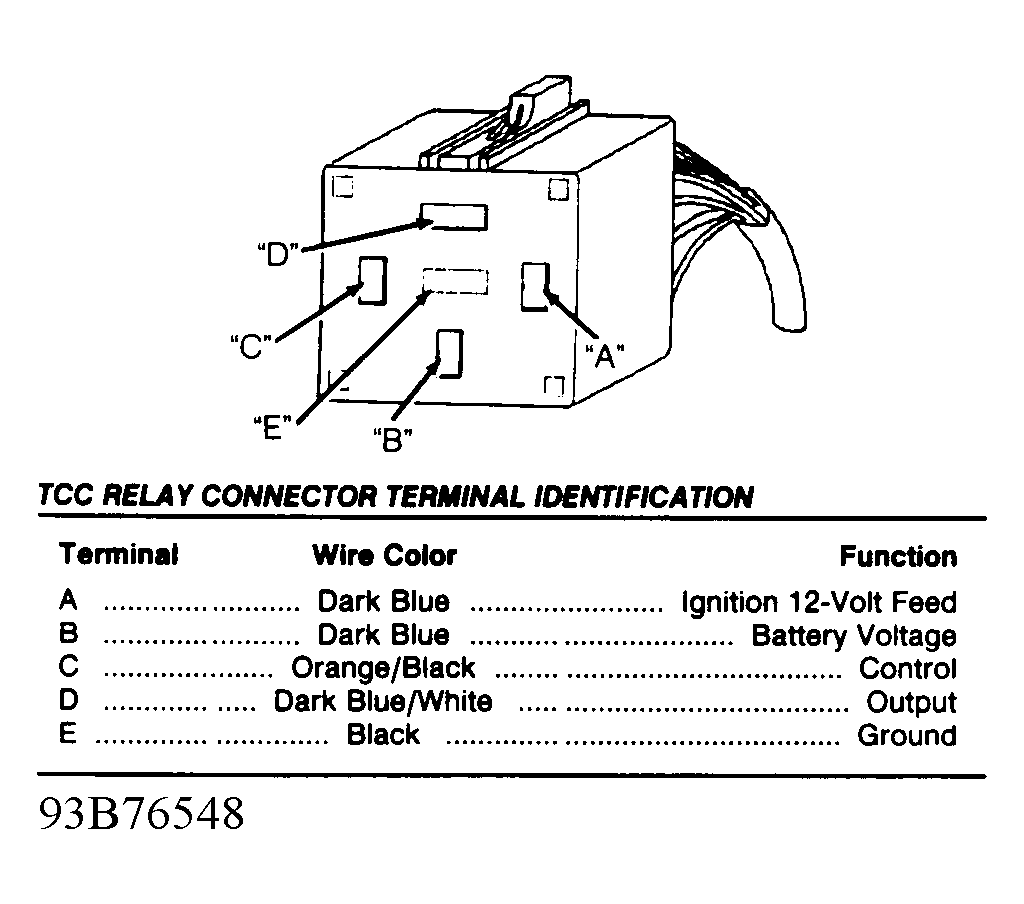

Fig 19: Identifying Torque Converter Clutch (TCC) Relay Connector Terminals

Courtesy of CHRYSLER CORP.

TCC RELAY CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
A	Dark Blue	Ignition 12-Volt Feed
B	Dark Blue	Battery Voltage
C	Orange/Black	Control
D	Dark Blue/White	Output
E	Black	Ground

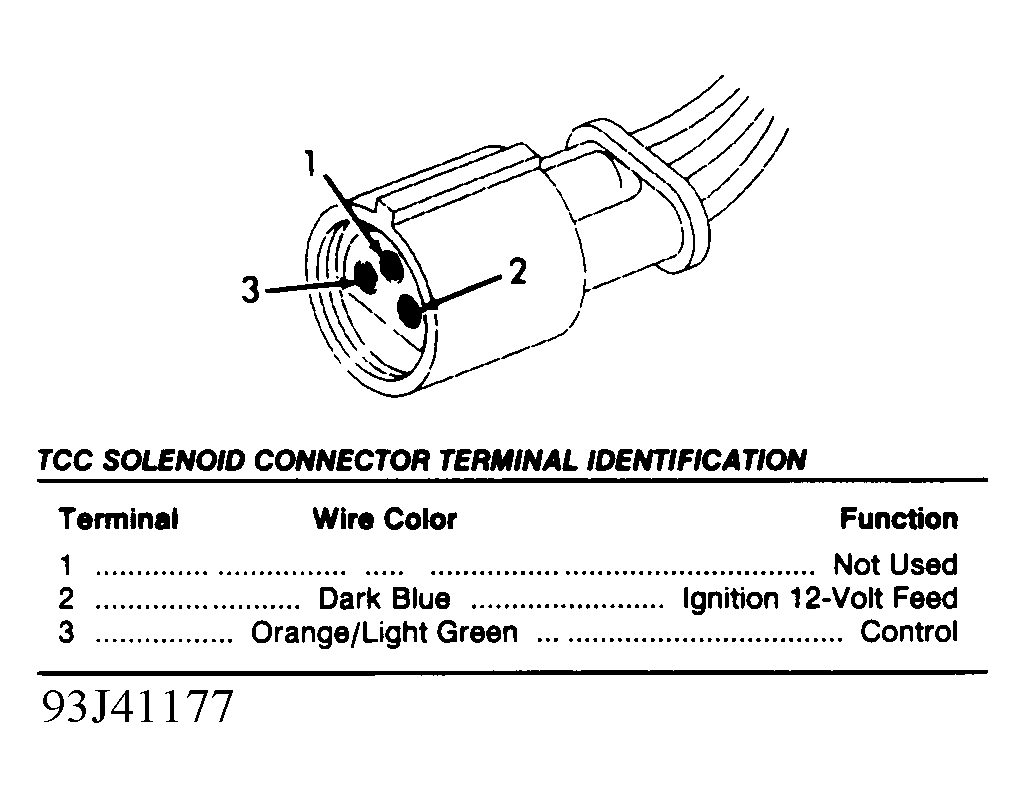

Fig 20: Identifying Torque Converter Clutch (TCC) Solenoid Connector Terminals

Courtesy of CHRYSLER CORP.

TCC SOLENOID CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	n/a	Not Used
2	Dark Blue	Ignition 12-Volt Feed
3	Orange/Light Green	Control

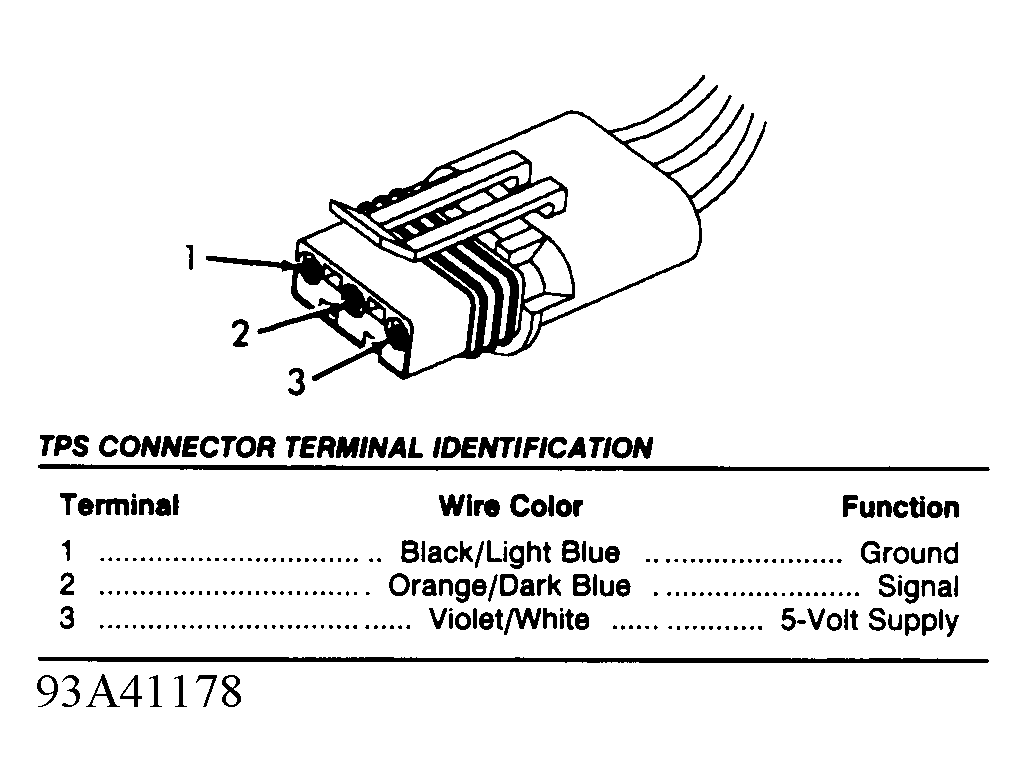

Fig 21: Identifying Throttle Position Sensor (TPS) Connector Terminals

Courtesy of CHRYSLER CORP.

TPS CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Black/Light Blue	Ground
2	Orange/Dark Blue	Signal
3	Violet/White	5-Volt Supply

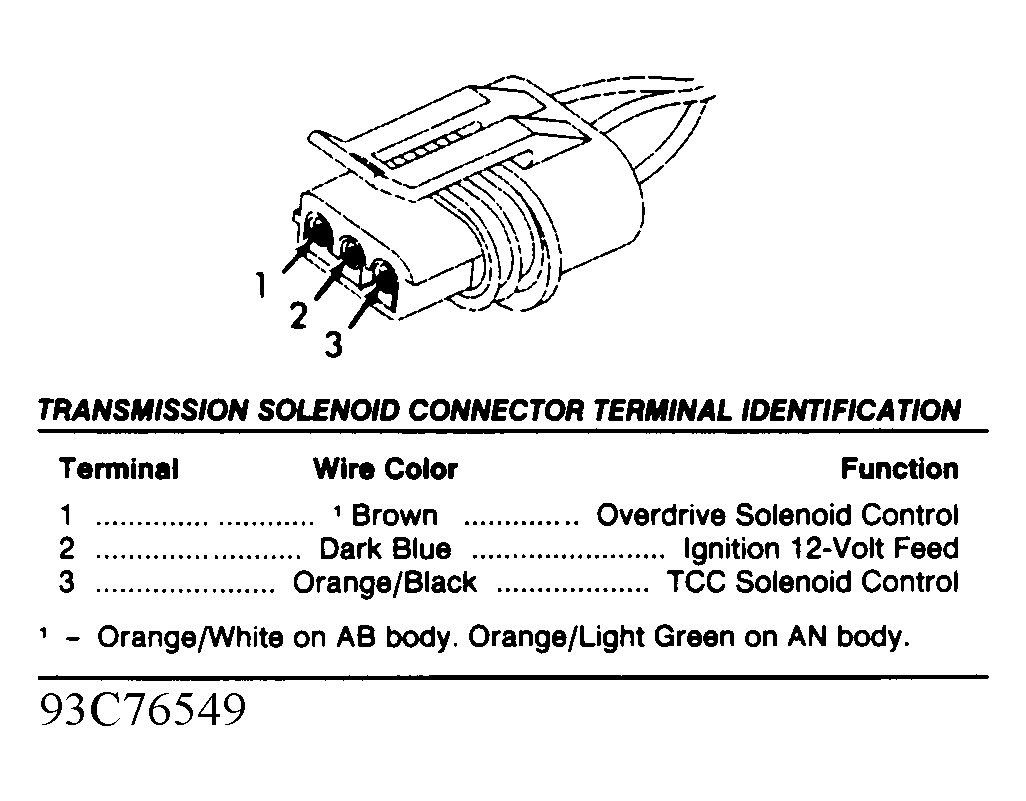

Fig 22: Identifying Transmission Solenoid Connector Terminals

Courtesy of CHRYSLER CORP.

TRANSMISSION SOLENOID CONNECTOR TERMINAL IDENTIFICATION

Terminal

Wire Color

Function

⁽¹⁾ Brown

Overdrive Solenoid Control

Dark Blue

Ignition 12-Volt Feed

Orange/Black

TCC Solenoid Control

⁽¹⁾	Orange/White on AB body. Orange/Light Green on AN body.

Fig 23: Powertrain Control Module Connector Terminal Identification

Courtesy of CHRYSLER CORP.

CAUTION: When battery is disconnected, vehicle computer and energy systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. See TESTS W/O CODES - GASOLINE and COMPUTER RELEARN PROCEDURES articles in the GENERAL INFORMATION Section before disconnecting battery.
