Chime Test 2B - Chime Sounds With Driver's Door Open
NOTE:
Perform CHIME TEST 2A
before proceeding with this test. For connector terminal identification, refer to CONNECTOR IDENTIFICATION
. For wiring diagrams, refer to WIRING DIAGRAMS
. Perform, after each repair, VERIFICATION TEST VER-1A - VERIFICATION PROCEDURE
.
CAUTION:
Always turn ignition switch to OFF position prior to disconnecting any module connector.

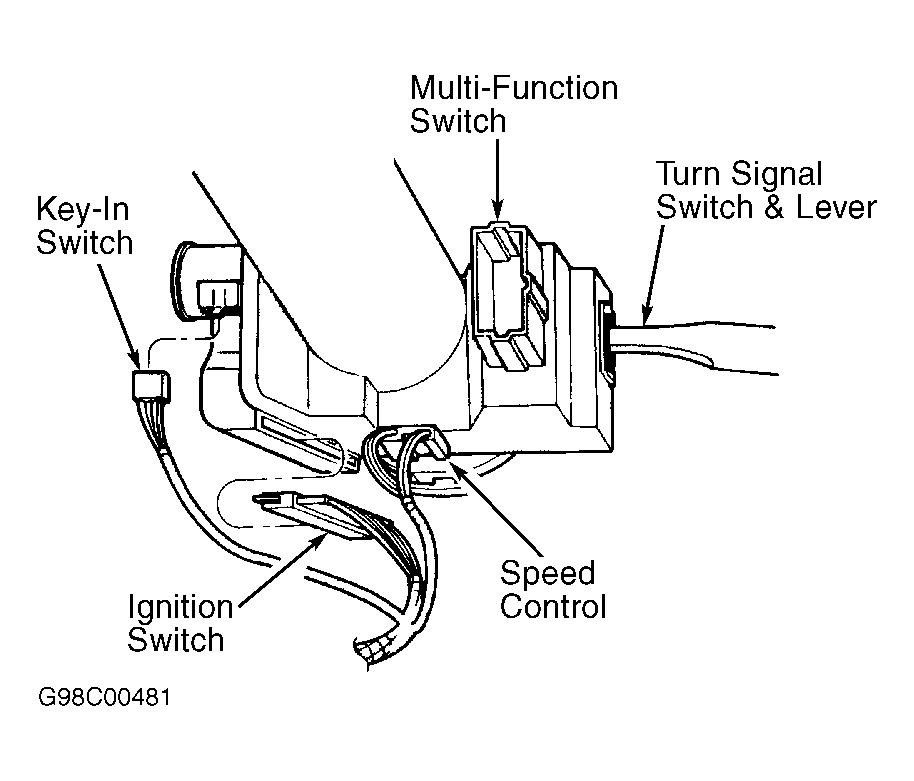

- Disconnect key-in ignition switch connector. See Fig 1 . Using scan tool, read key-in ignition switch status. If scan tool displays KEY-IN IGNITION SW: KEY-IN, go to next step. If scan tool does not display KEY-IN IGNITION SW: KEY-IN, replace ignition switch. See STEERING COLUMN SWITCHES article in this Section.
- Turn ignition off. Disconnect Central Timer Module (CTM). CTM is located behind right kick panel. Remove ignition key. Ensure all lights and accessories are off. Close all doors. Go to next step.
- Using external ohmmeter, measure resistance between ground and terminal No. 9 (Light Blue wire) on CTM connector "A". If resistance is less than 10 ohms, repair Light Blue wire between CTM and ignition switch for short to ground. If resistance is 10 ohms or more, replace CTM.
