Connector Identification
NOTE:
The following terminals are shown as viewed from harness side of connector. Only connectors with 3 or more terminals (pins) are included. For circuit identification and wiring diagram, see DURANGO
wiring diagrams in WIRING DIAGRAMS article.
CONNECTOR IDENTIFICATION
| Connector | Illustration |
|---|---|

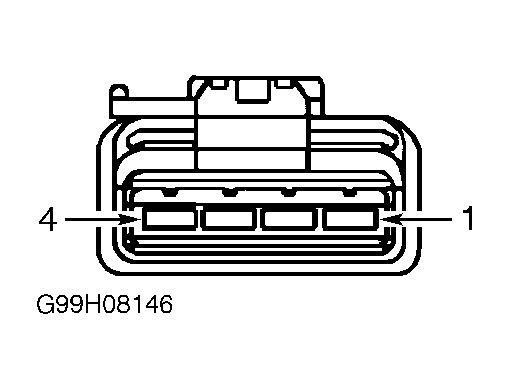

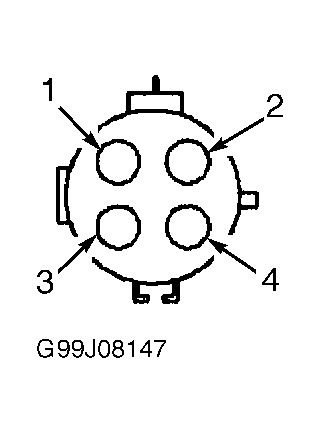

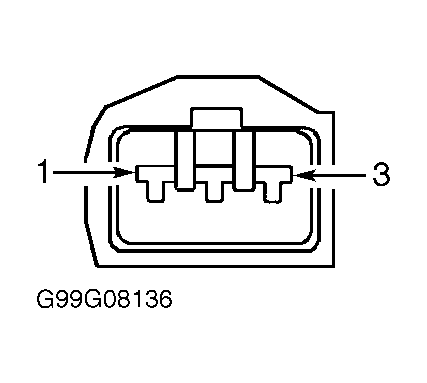

| Accelerator Pedal Position Sensor | Fig 1 |

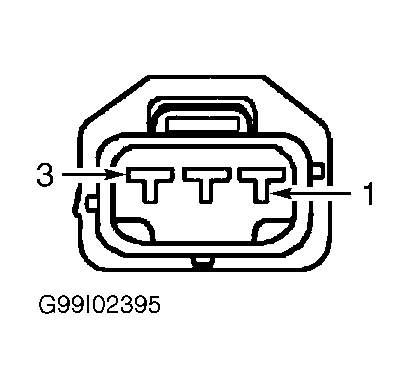

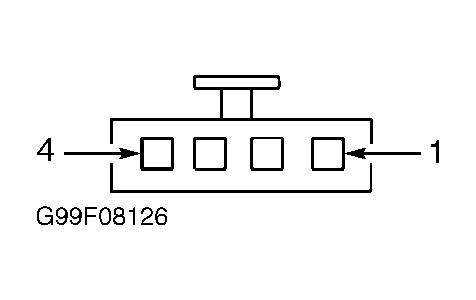

| Brakelight Switch | Fig 2 |

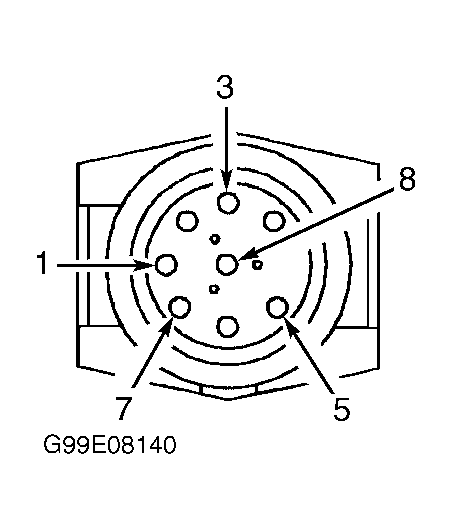

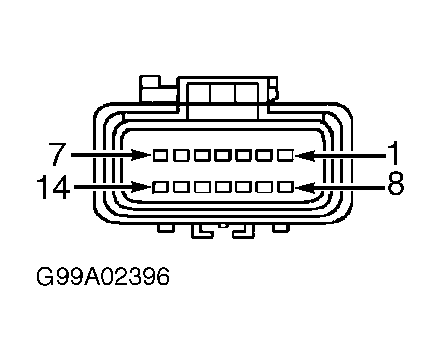

| Camshaft Position Sensor | Fig 3 |

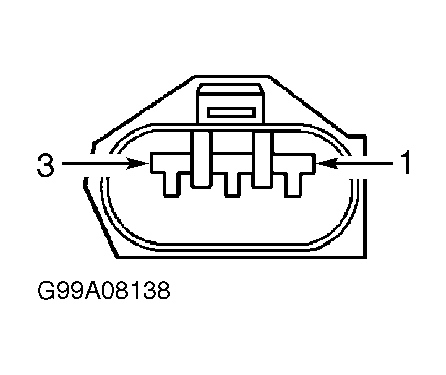

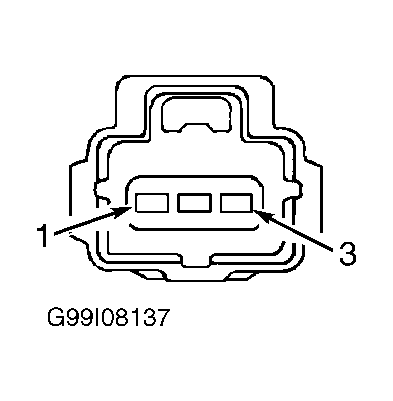

| Controller Anti-Lock Brakes | Fig 4 |

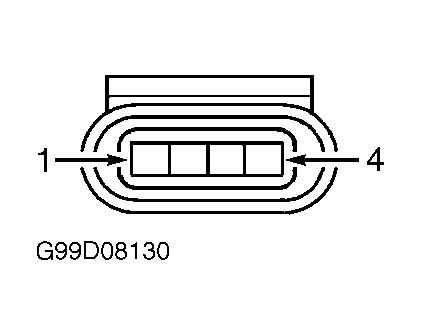

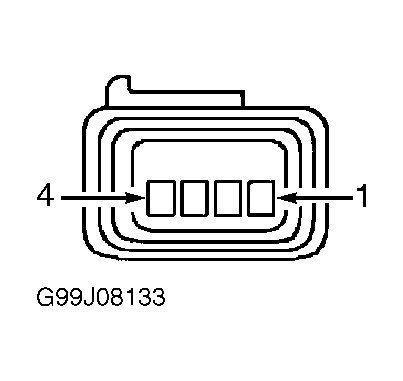

| Crankshaft Position Sensor | Fig 5 |

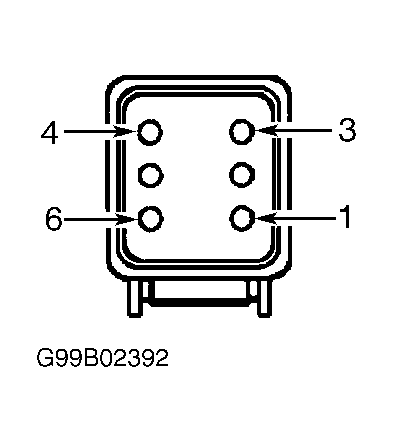

| Data Link Connector | Fig 6 |

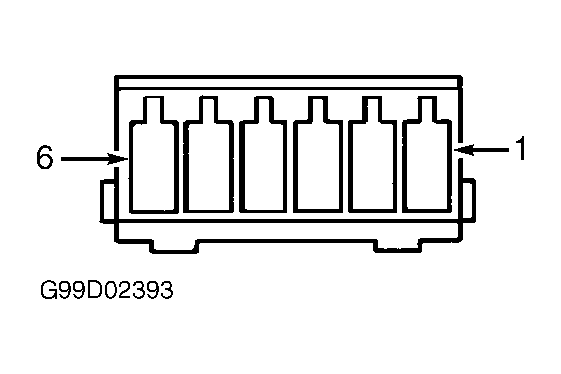

| Fuel Pump Module | Fig 7 |

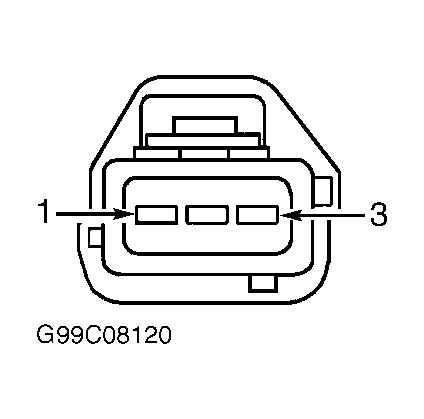

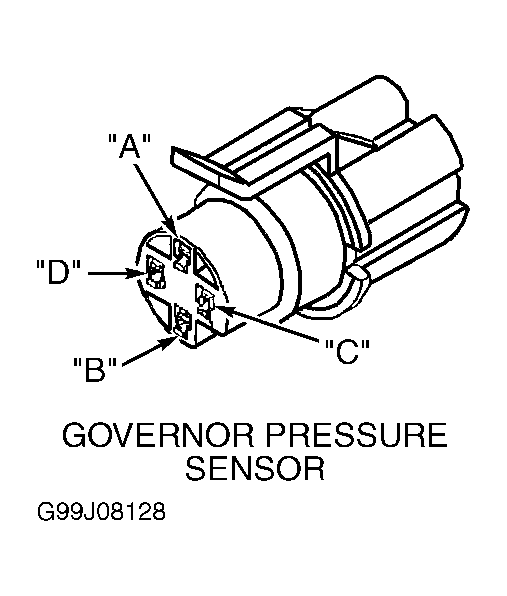

| Governor Pressure Sensor | Fig 8 |
| Idle Air Control Motor | Fig 9 |
| Leak Detection Pump | Fig 10 |
| Manifold Absolute Pressure Sensor | Fig 11 |
| Park/Neutral Position Switch | Fig 12 |
| Powertrain Control Module | Fig 13 |
| Throttle Position Sensor | Fig 14 |
| Transmission Solenoid | Fig 15 |
| Vehicle Speed Sensor | Fig 16 |
| 1/1-1/3 Heated Oxygen Sensor (Typical) | Fig 17 |
