Radiator Fan Control Relay

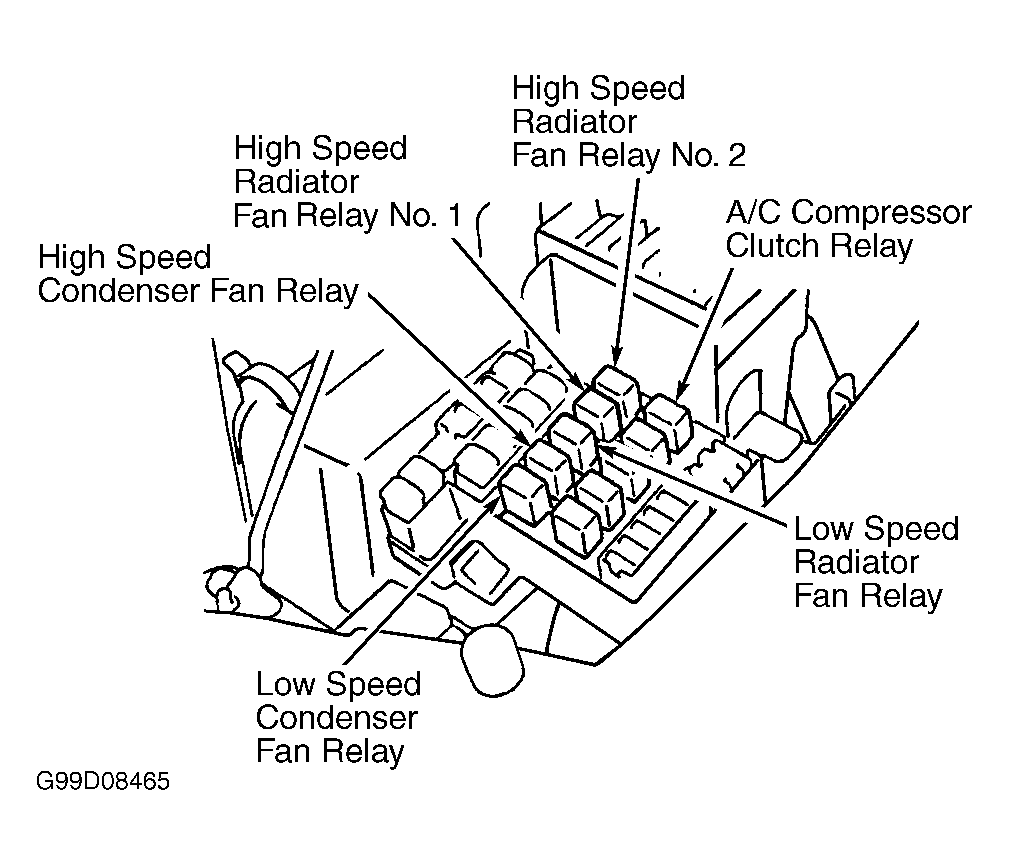

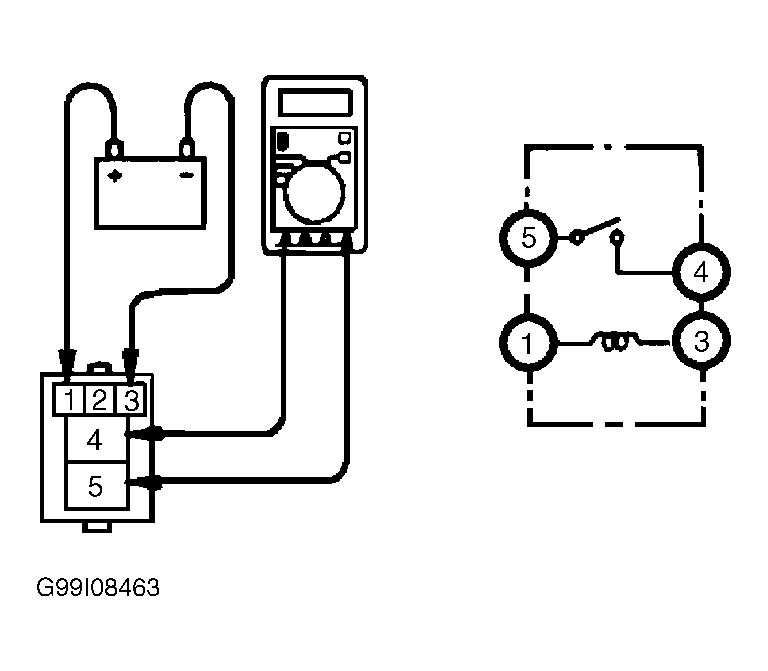

  1. Remove relay to be tested (located in PDC). See Figure . Check for continuity between relay terminals No. 1 and 3. See Figure . If continuity exists, go to next step. If continuity does not exist, replace relay.
  2. Using jumper wires, apply battery voltage to relay terminal No. 1 and ground to terminal No. 3. See Figure . Check for continuity between terminals No. 4 and 5. If continuity exists, relay is okay. If continuity does not exist, replace relay.
