Bus +/- Signal Open From SKIM

NOTE: After making any repairs, perform SKIS VERIFICATION TEST  under VERIFICATION TESTS. Unless instructed otherwise in test step, reconnect any disconnected connectors.
  1. Turn ignition off. Connect scan tool to Data Link Connector (DLC). DLC is located on bottom of instrument panel, to left of brake pedal. See Figure. Turn ignition on. Using scan tool, attempt to communicate with Sentry Key Immobilizer Module (SKIM). If scan tool does not communicate with SKIM, go to next step. If scan tool communicates with SKIM, test is complete.
  2. Turn ignition off. Disconnect SKIM connector. Check and repair connectors as necessary. Using a voltmeter, check voltage on SKIM connector terminal No. 6, fused B+ circuit (Pink wire). See Fig 1. If voltage is more than 10 volts, leave SKIM connector disconnected and go to next step. If voltage is 10 volts or less, repair open Pink wire.

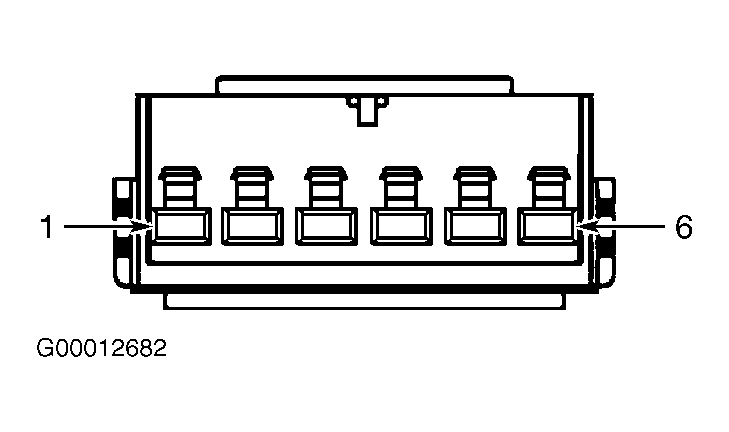

    Fig 1: Identifying Sentry Key Immobilizer Module (SKIM) Connector Terminals
    G00012682Courtesy of DAIMLERCHRYSLER CORP.
  3. Turn ignition on. Using voltmeter, check voltage on SKIM connector terminal No. 4, fused ignition switch output run/start circuit (Dark Blue/White wire). If voltage is more than 10 volts, leave SKIM connector disconnected and go to next step. If voltage is 10 volts or less, repair open Dark Blue/White wire.
  4. Turn ignition off. Using an ohmmeter, check resistance between ground and SKIM connector terminal No. 5, ground circuit (Black/Light Green wire). If resistance is less than 5 ohms, leave SKIM connector disconnected and go to next step. If resistance is 5 ohms or more, repair open Black/Light Green wire.
  5. Connect Scope Input Cable (CH7058) to channel one connector on scan tool. Connect Red and Black leads and Cable-to-Probe Adapter (CH7062) to scope input cable. Go to next step.
  6. Using scan tool, select DRB STANDALONE, LAB SCOPE, LIVE, then 12-VOLT SQUARE WAVE. Press F2 for scope. Press F2 again and use down arrow to set voltage range to 20 volts. Press F2 again. Go to next step
  7. Connect Black lead to SKIM connector terminal No. 5, ground circuit (Black/Light Green wire). Connect Red lead to SKIM connector terminal No. 2, PCI bus circuit (Violet/Yellow wire). Turn ignition on. Observe voltage display on scan tool lab scope. If voltage pulses from zero to about 7.5 volts, replace SKIM. See SENTRY KEY IMMOBILIZER MODULE (SKIM)  under REMOVAL & INSTALLATION. If voltage remains at zero volts, repair open Violet/Yellow wire.
