Removal - Downstream 1/2, 2/2

Raise and support vehicle.

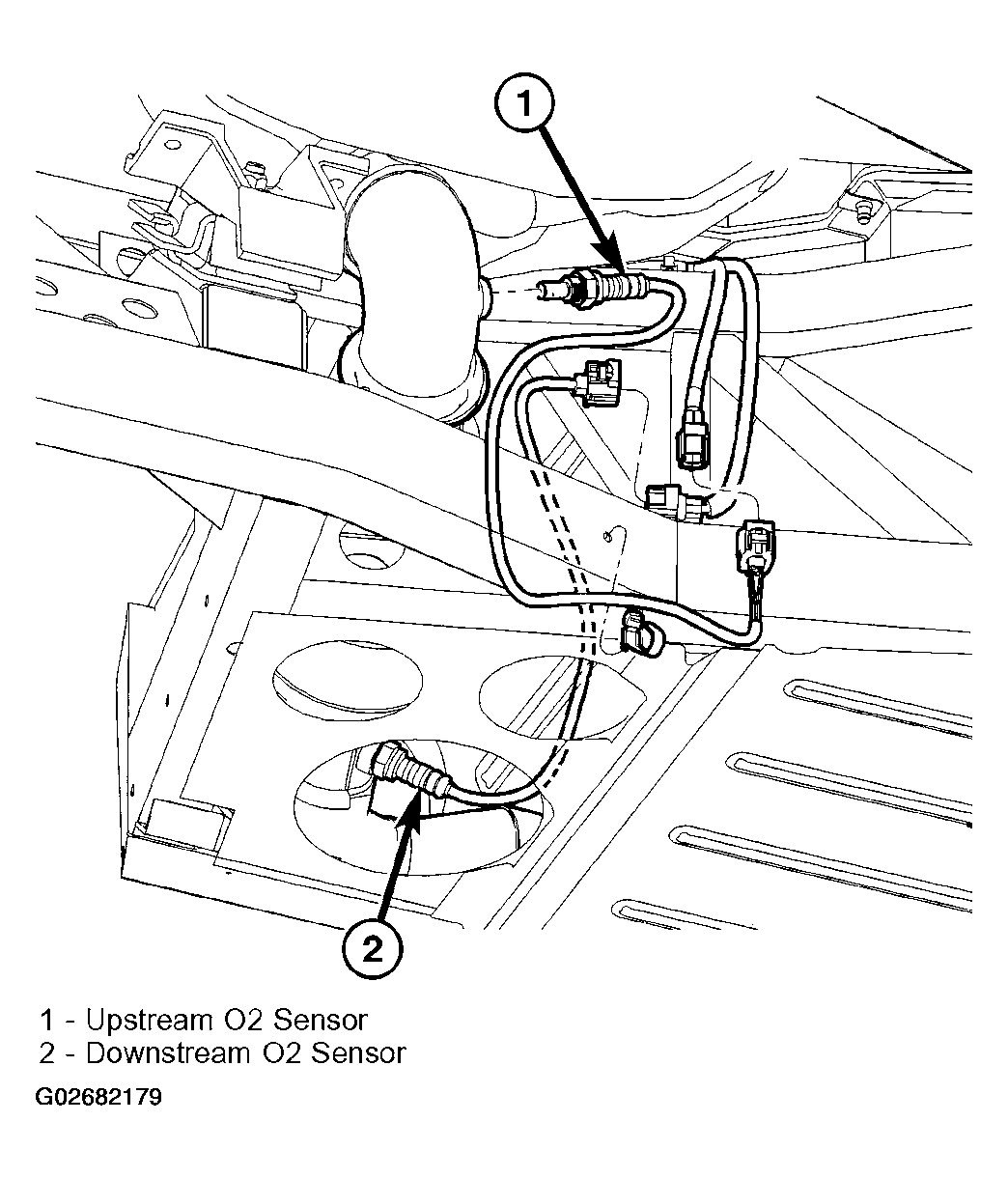

Disconnect heated oxygen sensor electrical connector (Figure ).
Remove sensor using an oxygen sensor crow foot wrench such as Snap-On tool YA8875 or equivalent.
