Removal - SBEC Controller

  1. Disconnect the negative battery cable.
  2. Remove the battery shield.
  3. Remove the 2 upper PCM bracket bolts (Fig 1).

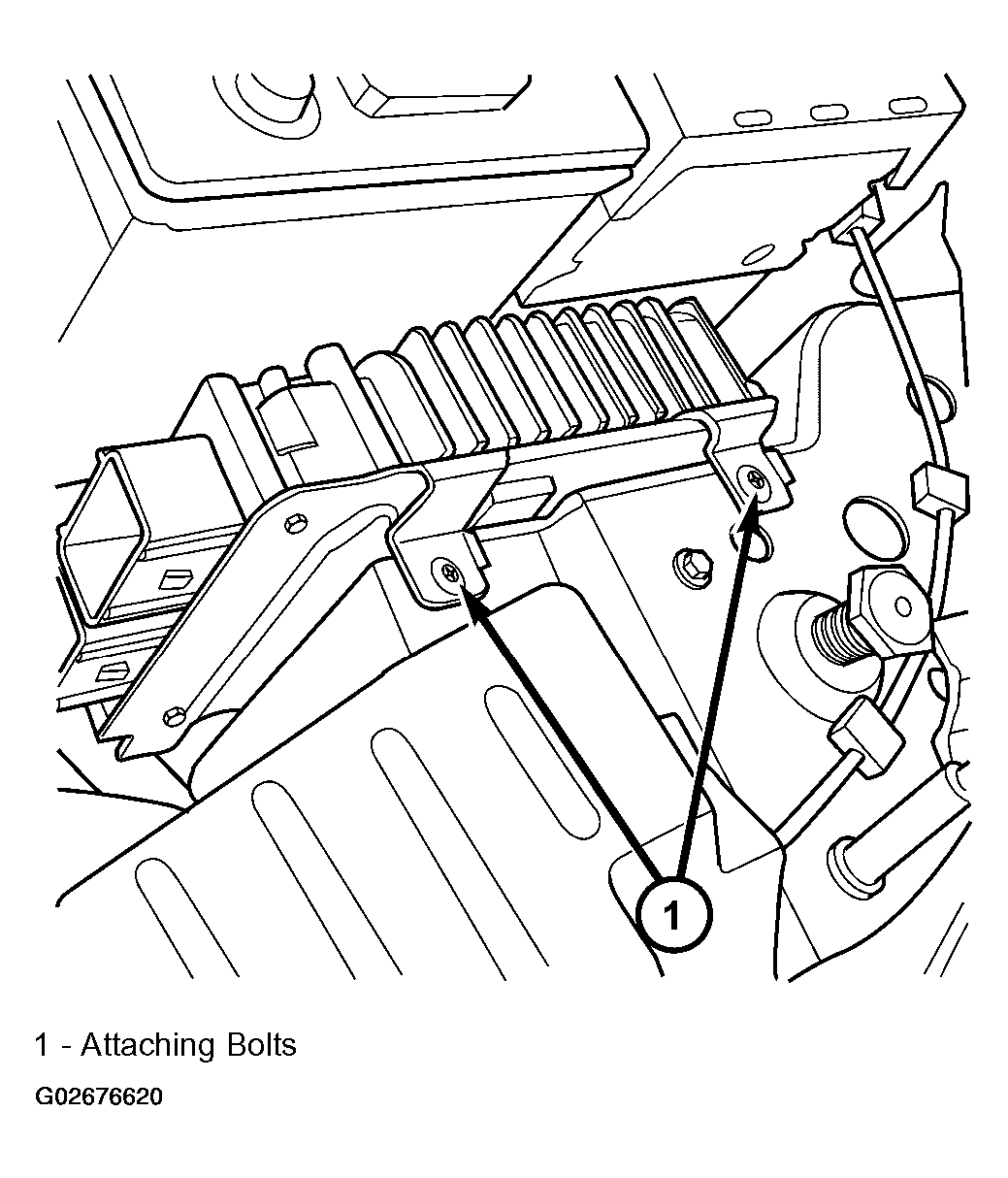

    Fig 1: Identifying PCM Attaching Bolts
    G02676620Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove the 2 PCM connectors.
  5. Remove the headlamp, refer to the HEADLAMP for more information.
  6. Remove the lower PCM mounting bolt (Fig 2).

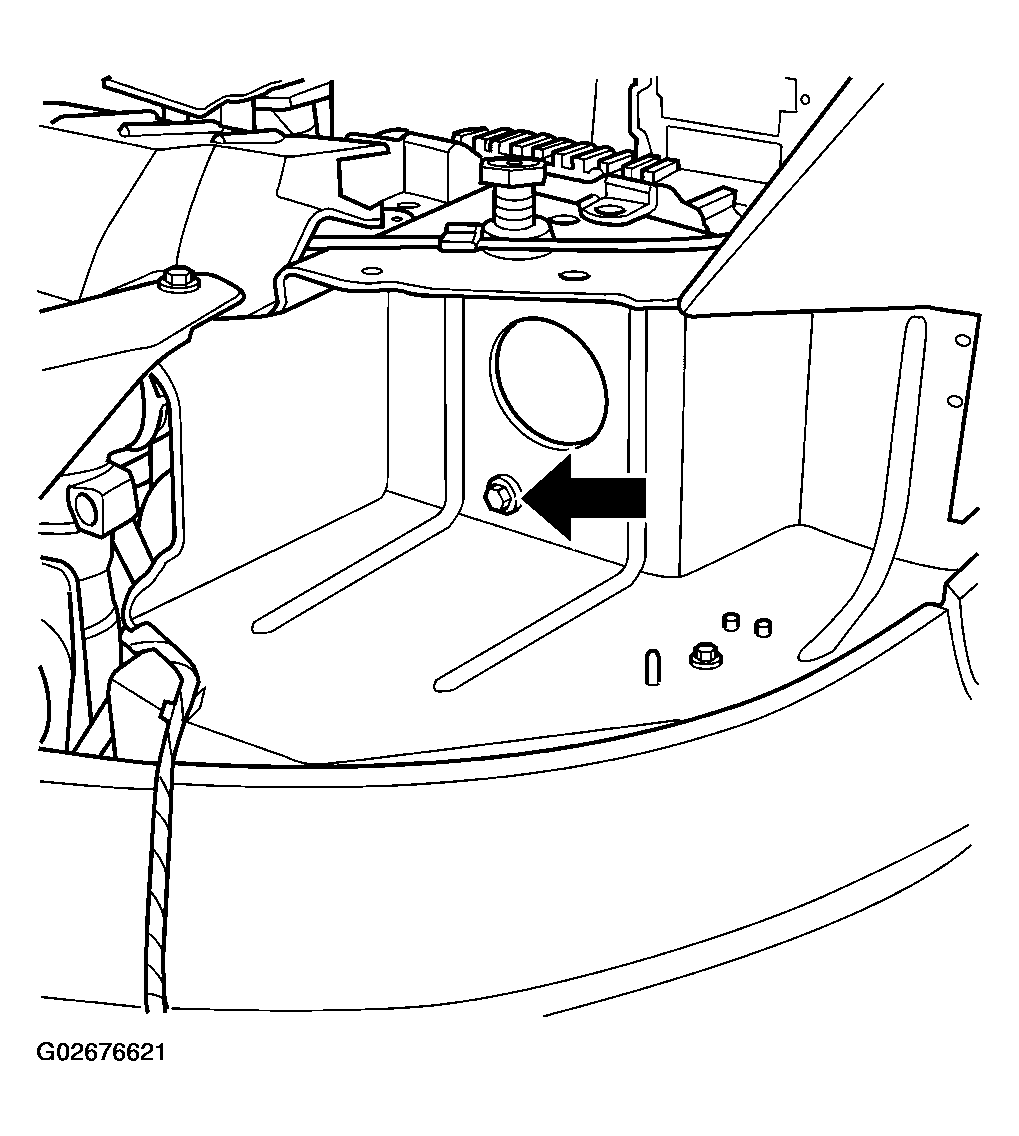

    Fig 2: Locating PCM Lower Bolt
    G02676621Courtesy of DAIMLERCHRYSLER CORP.
  7. Remove PCM.
