Transmission Control Module: Installation

NOTE: If transmission control module is being replaced with a new or replacement unit, the Pinion Factor and Quick Learn procedures must be performed. (Refer to STANDARD PROCEDURE - PINION FACTOR SETTING )
  1. Install TCM into position (Fig 1). Install three (3) screws and torque to 3 N-m (30 in. lbs.).

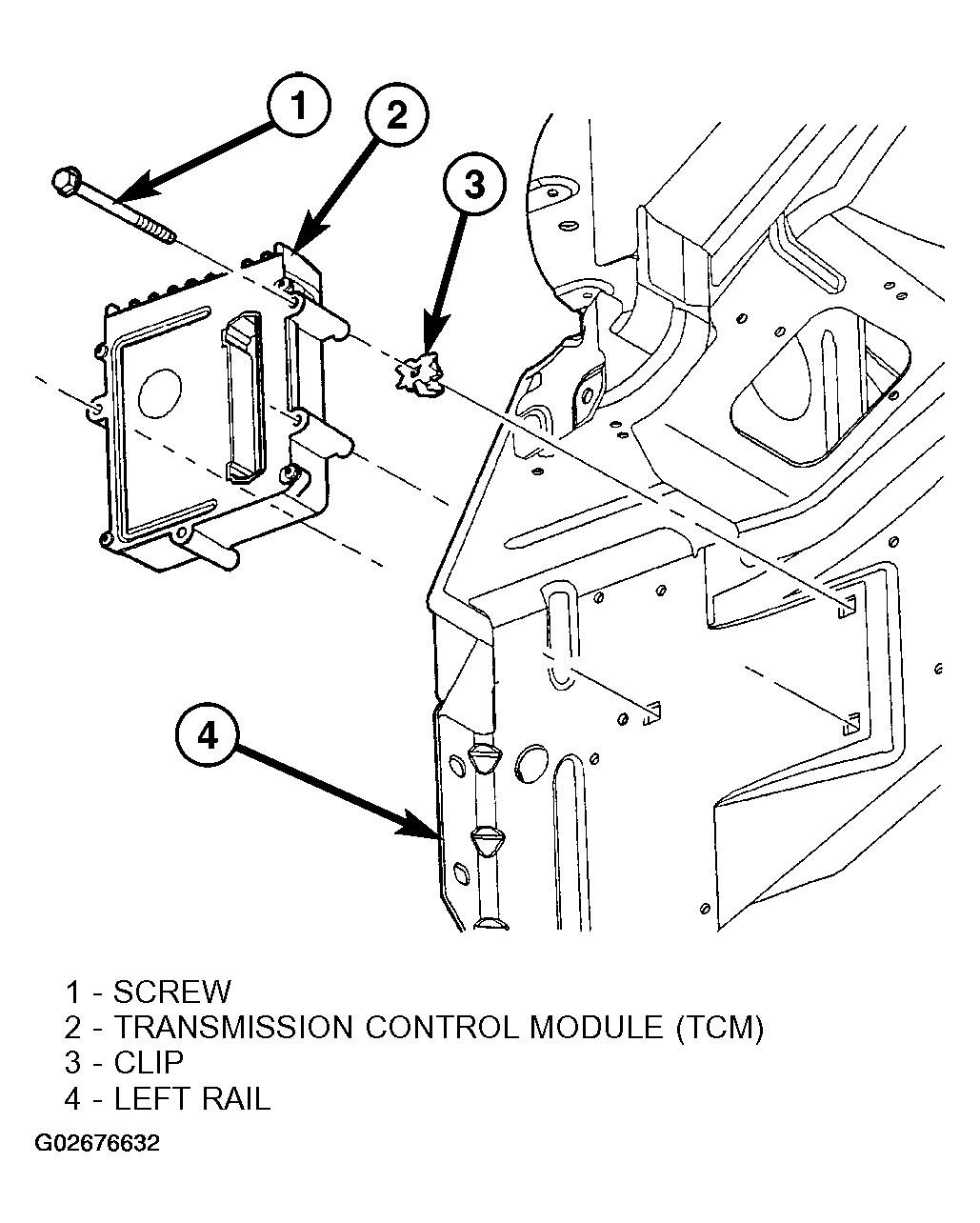

    Fig 1: Installing Transmission Control Module Components
    G02676632Courtesy of DAIMLERCHRYSLER CORP.
  2. Install TCM harness 60-way connector (Fig 2) and torque to 4 N-m (35 in. lbs.).

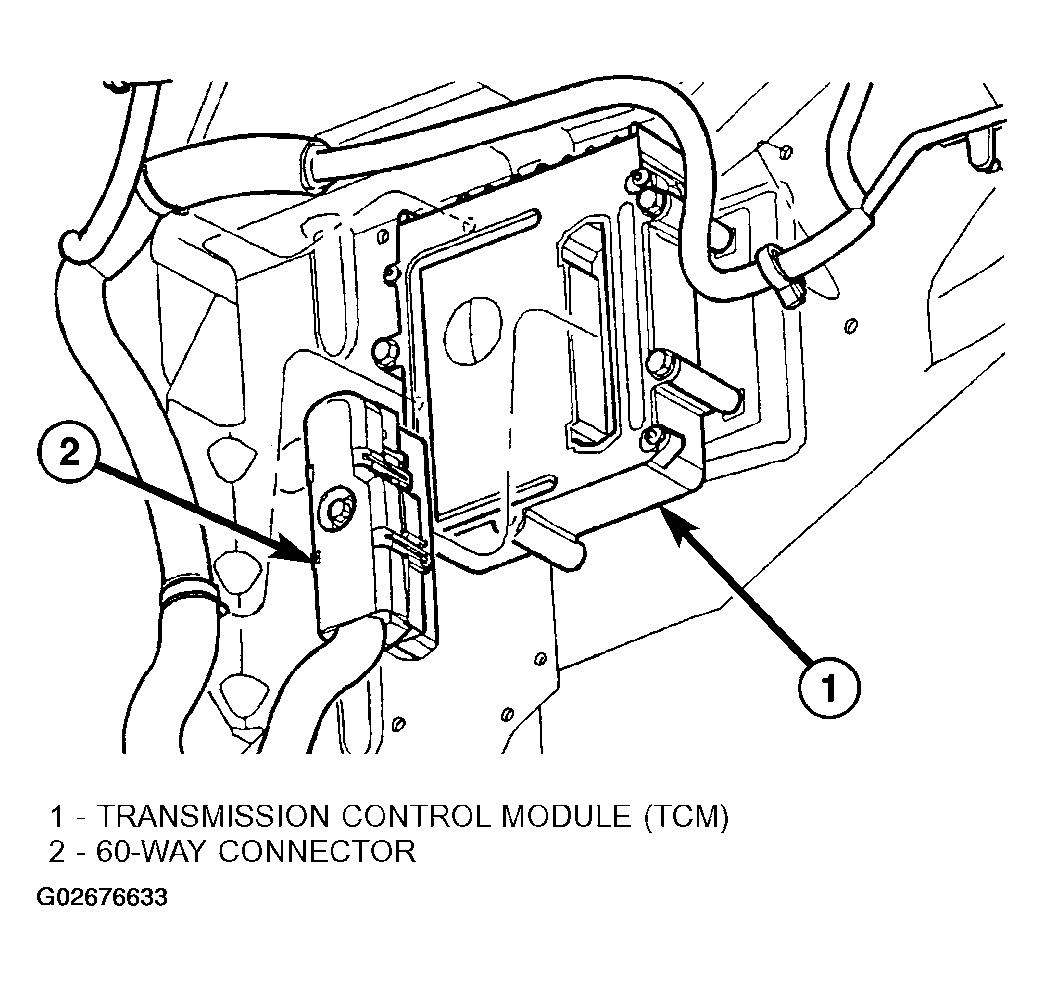

    Fig 2: Installing Transmission Control Module 60-Way Connector
    G02676633Courtesy of DAIMLERCHRYSLER CORP.
  3. Install splash shield into position with fasteners.
  4. Install left front wheel/tire assembly.
  5. Lower vehicle.
  6. Connect battery negative cable.
  7. If TCM was replaced, reset Pinion Factor and Quick Learn. (Refer to STANDARD PROCEDURE ).
