Map Sensor: Description

The MAP sensor (Fig 1) or (Fig 2) mounts to the intake manifold. The sensor is connects electrically to the PCM.

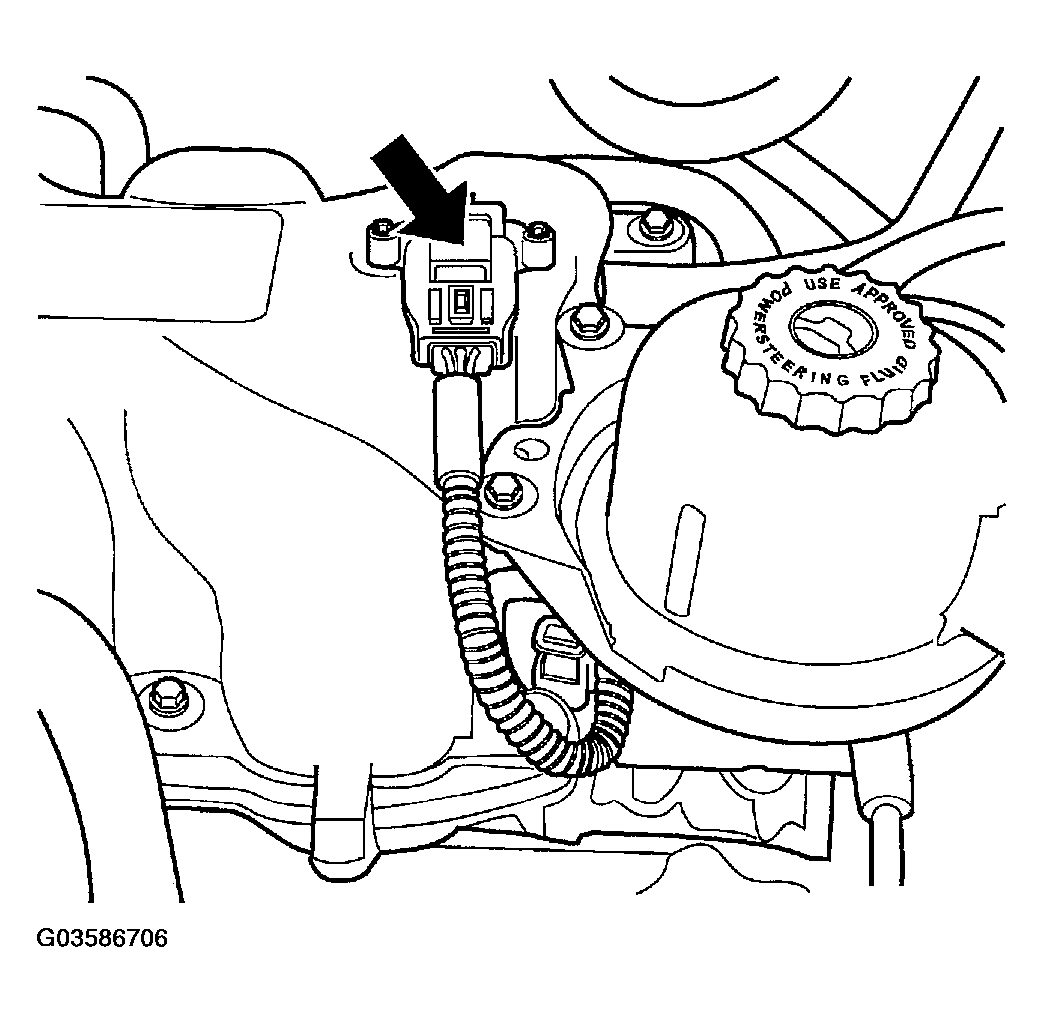

Fig 1: Identifying MAP Sensor - 2.4L

Courtesy of DAIMLERCHRYSLER CORP.

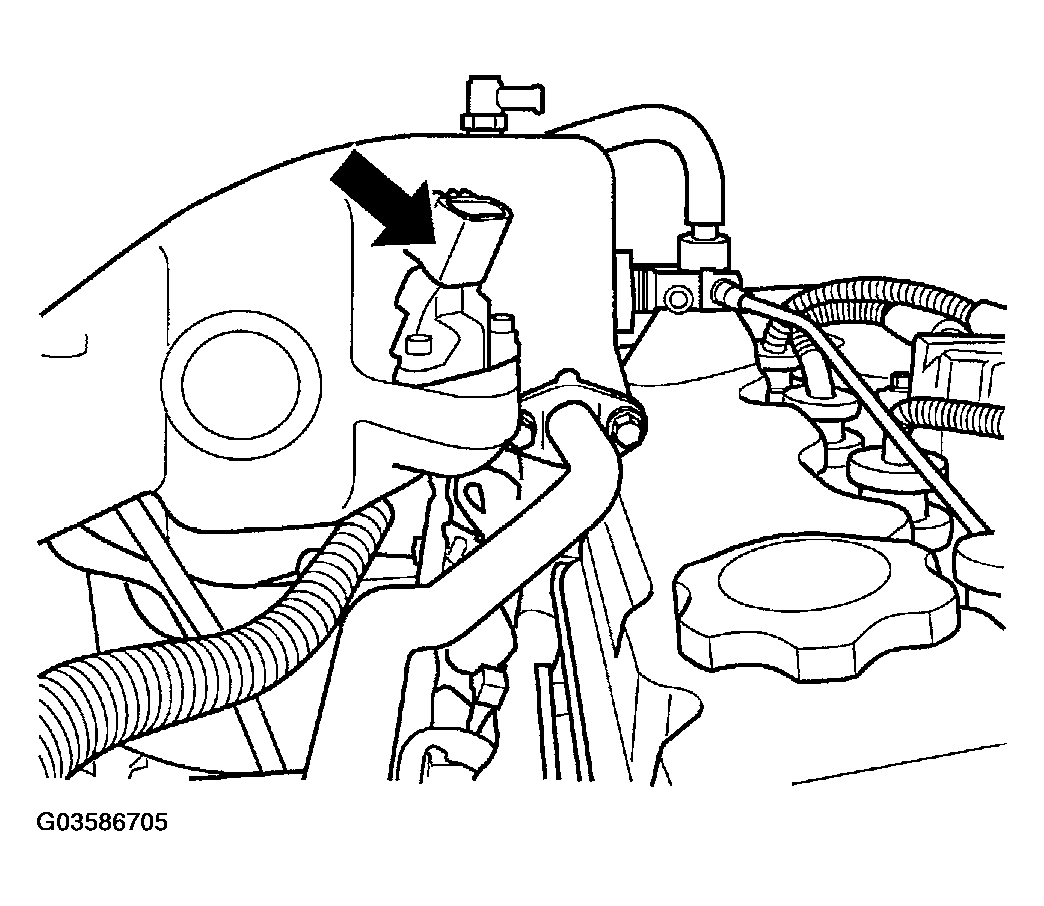

Fig 2: Identifying MAP Sensor - 3.3/3.8L

Courtesy of DAIMLERCHRYSLER CORP.
