8.3L - Downstream 1/2, 2/2

  1. Raise and support vehicle.

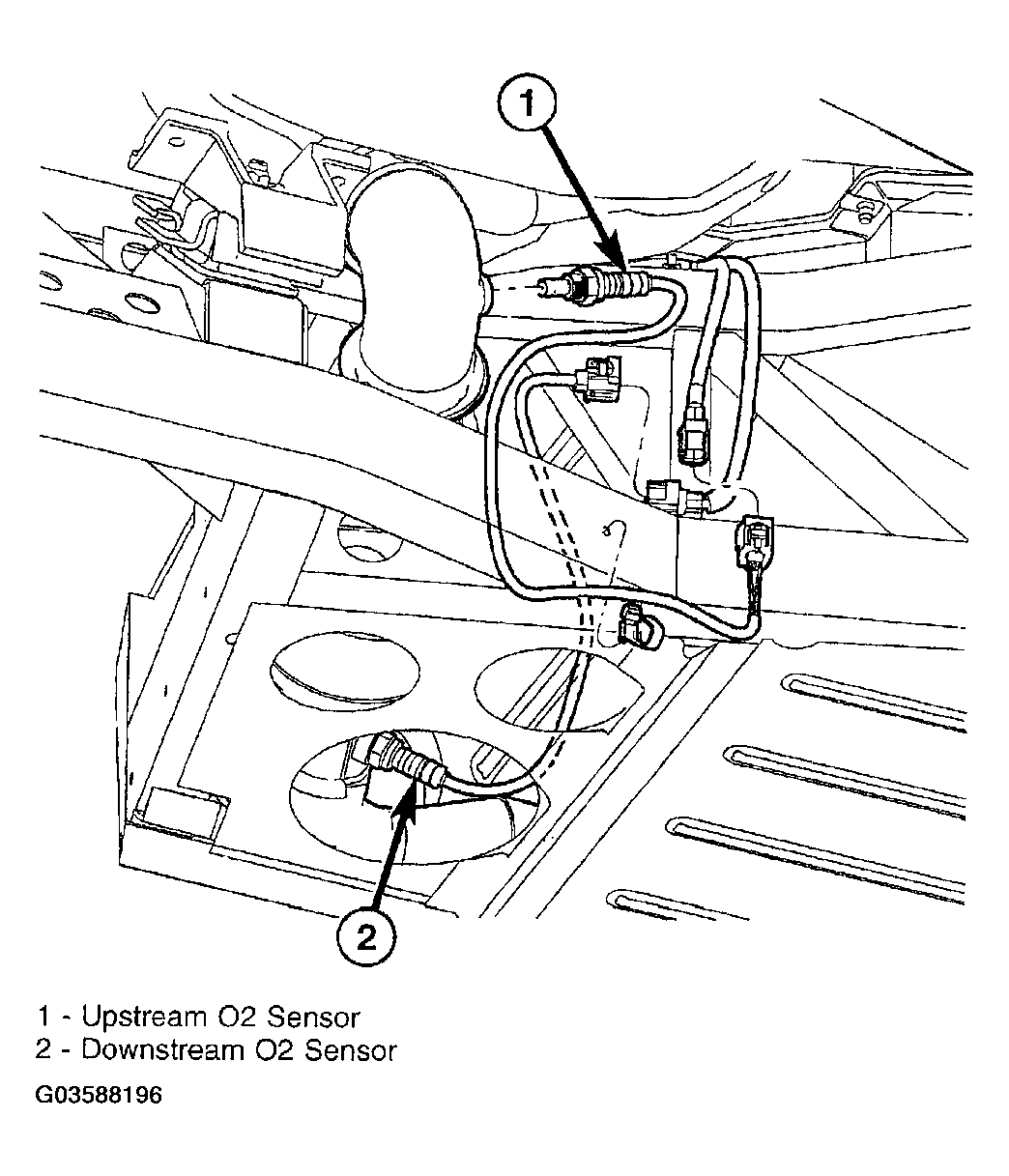

  2. Disconnect heated oxygen sensor electrical connector (Figure).
  3. Remove sensor using an oxygen sensor crow foot wrench such as Snap-On tool YA8875 or equivalent
