Multi-Function Switch - Gray 20 Way Connector End View

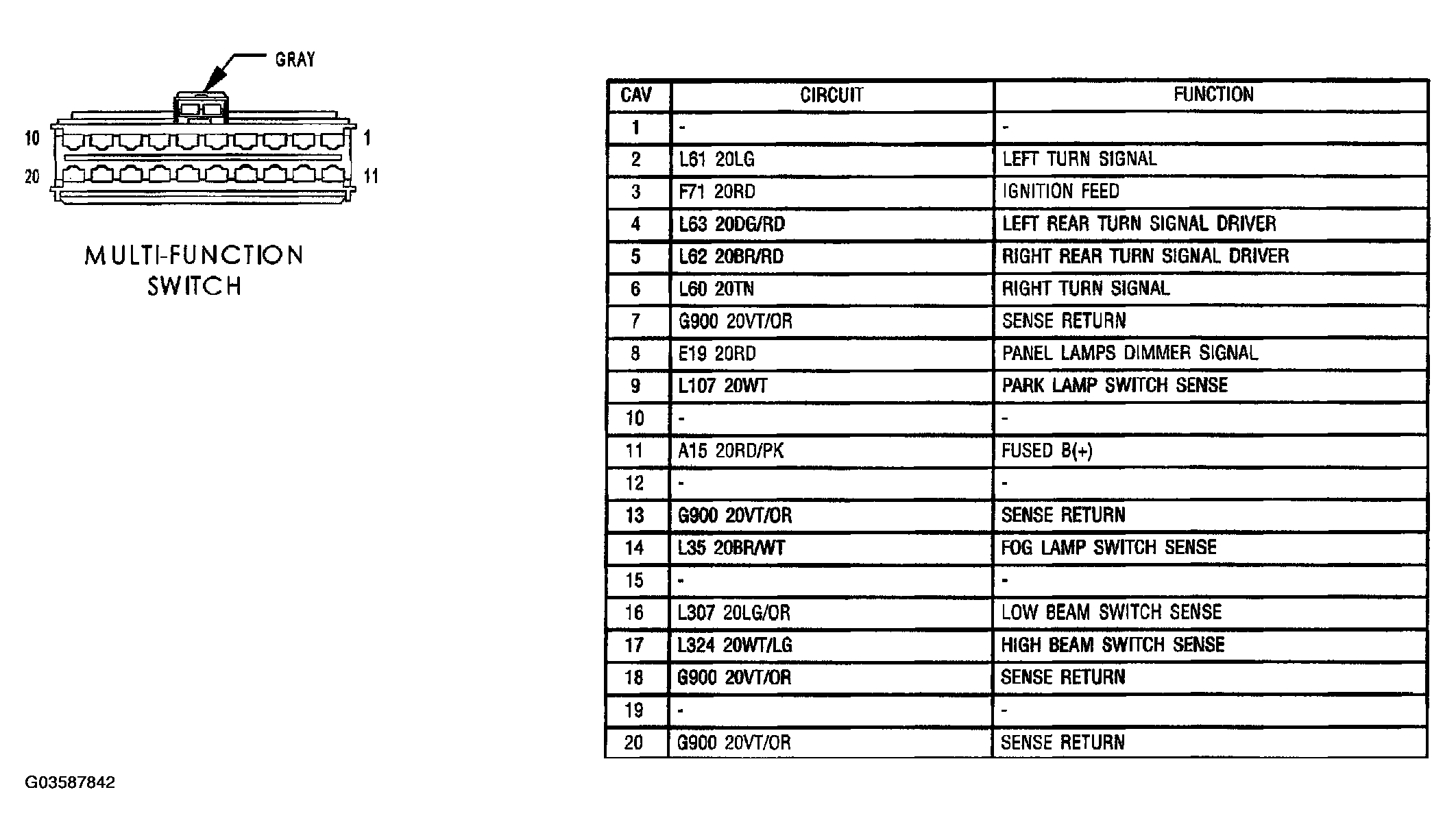

Fig 1: Multifunction Switch Connector End View
G03587842Courtesy of DAIMLERCHRYSLER CORP.
