Fuel Pump Module: Description

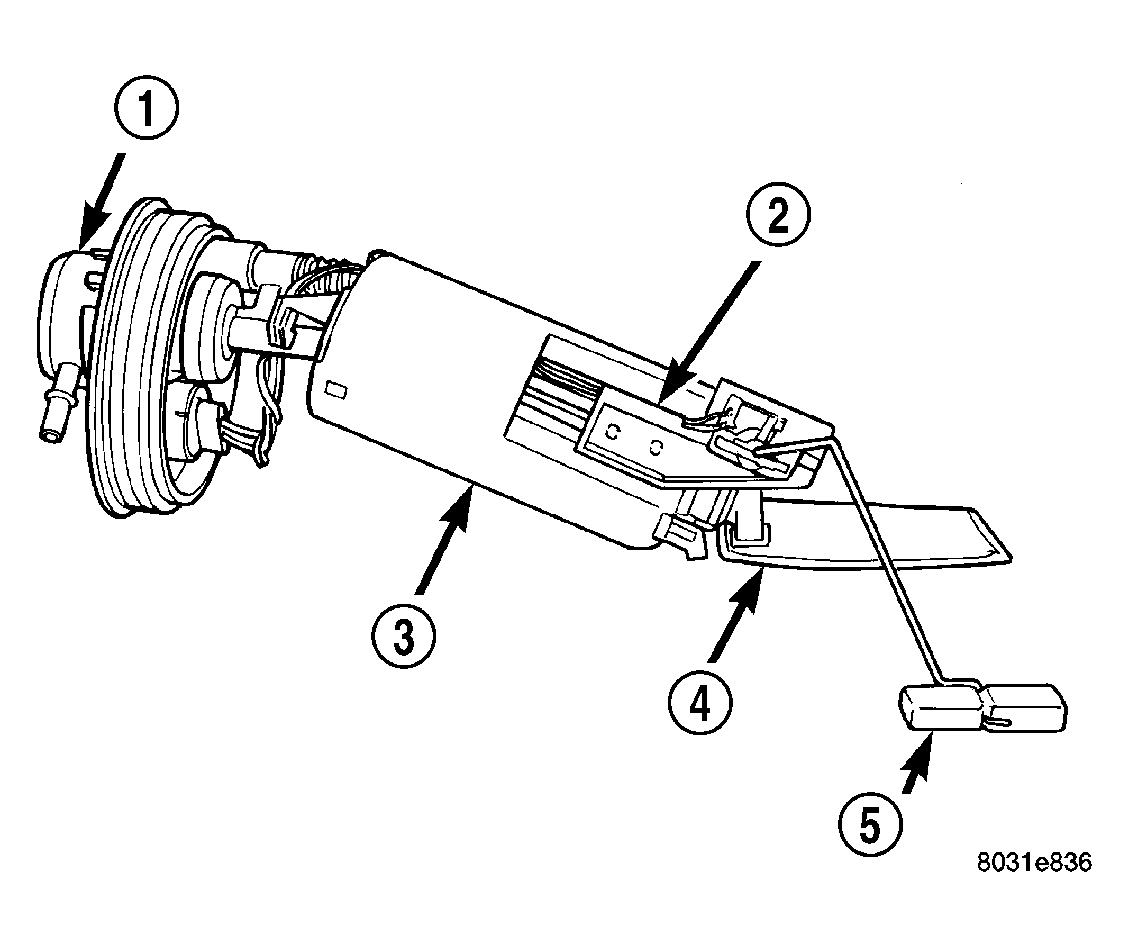

The fuel pump module is installed in the fuel tank. See Fig 1.
| 1 - FUEL FILTER/PRESSURE REGULATOR |
| 2 - FUEL LEVEL SENSOR |
| 3 - FUEL RESERVOIR |
| 4 - INLET STRAINER |
| 5 - FLOAT |
The fuel pump module is installed in the fuel tank. See Fig 1.
| 1 - FUEL FILTER/PRESSURE REGULATOR |
| 2 - FUEL LEVEL SENSOR |
| 3 - FUEL RESERVOIR |
| 4 - INLET STRAINER |
| 5 - FLOAT |
