Durango 3.7 K
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
DTC U1418, Pre-Diagnostic Troubleshooting Procedure, Intermittent Condition Check, System Checks, Symptom Tests, Pcm/ECM Programming, Powertrain Verification Test
>>
*Checking The Fuel Delivery System
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

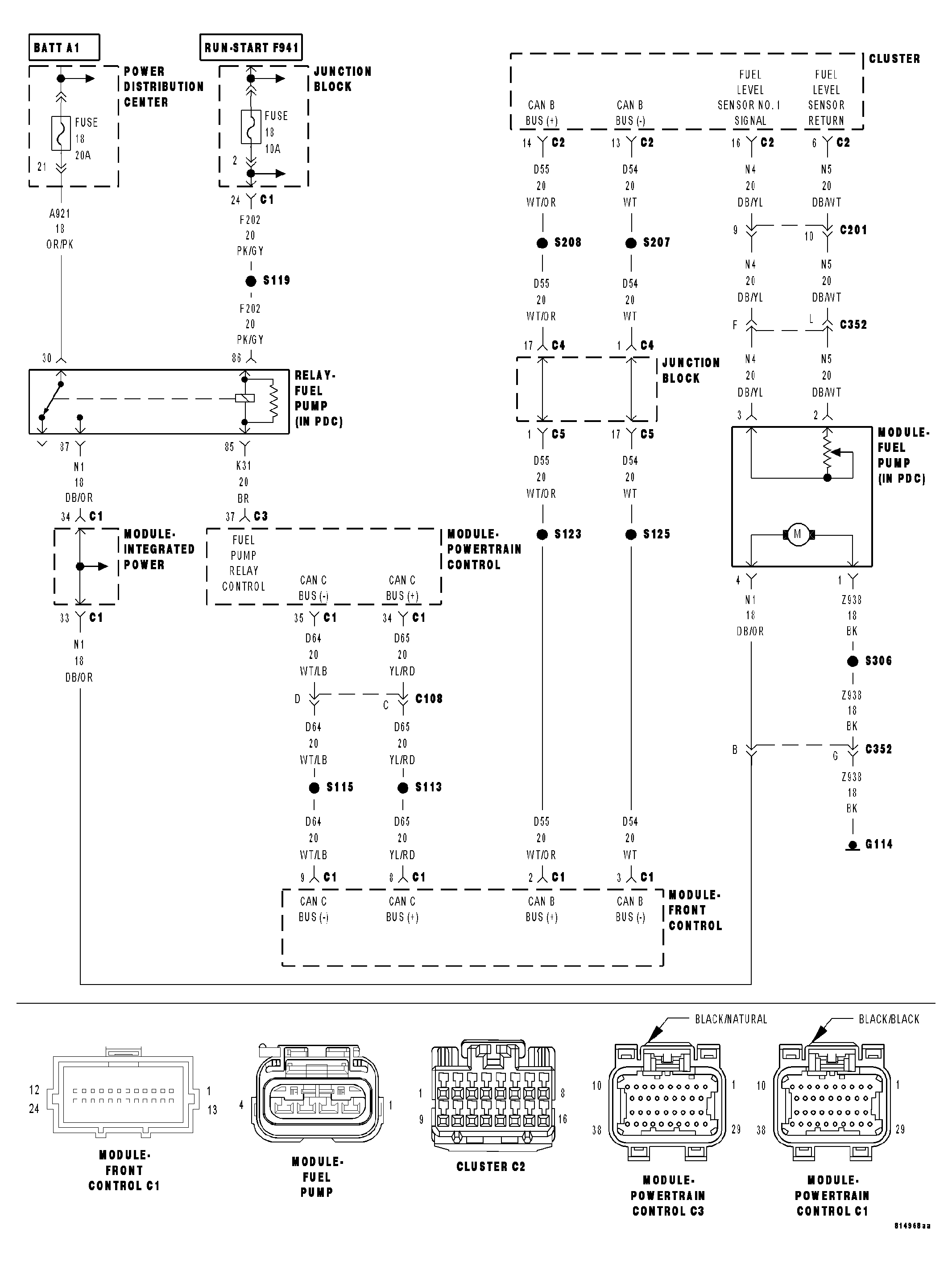

Fig 1: Fuel Pump Module & Fuel Pump Relay Circuit Schematic
