Circuit Schematic

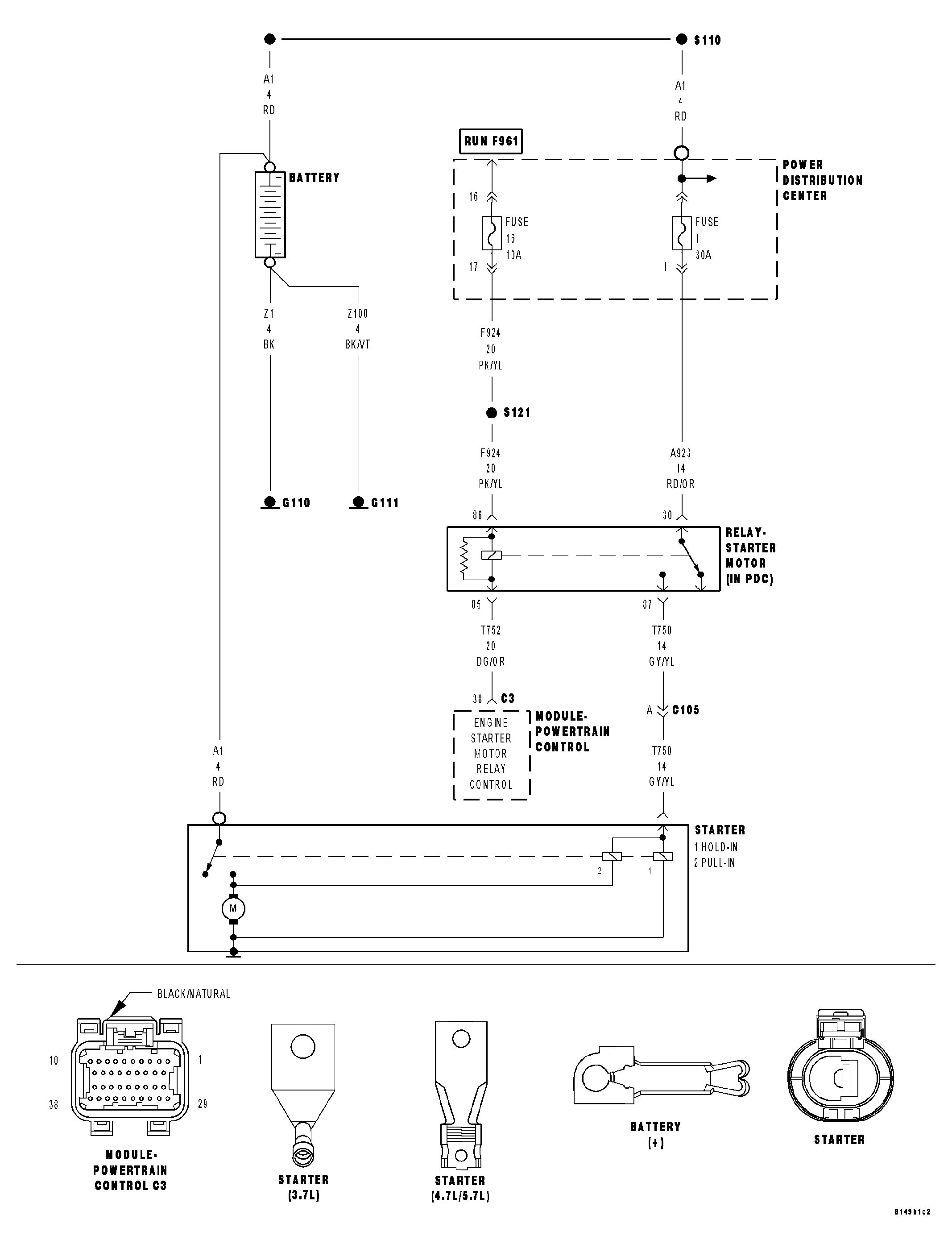

Fig 1: Starting System Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
