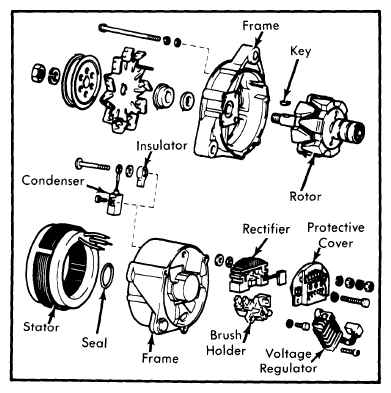

MARELLI Alternators: Overhaul: Reassembly
If brushes are worn replace brushes and holder as a complete assembly. Reverse removal procedure and install alternator on vehicle. Adjust belt tension.
SPECIFICATIONS
| Application | Test Data | ||
|---|---|---|---|
| Cut-in Speed | 900±50 RPM | ||
| Current Flow | 55 amps.@7000 RPM | ||
| Resistance Across Slip Rings | 3.1±.1 ohm(1) | ||
| Alternator-to-Engine RPM Ratio | 1.75:1 | ||
| Regulating Voltage | 13.8-14.2 volts(1) | ||
|
|||
