Engine Compartment

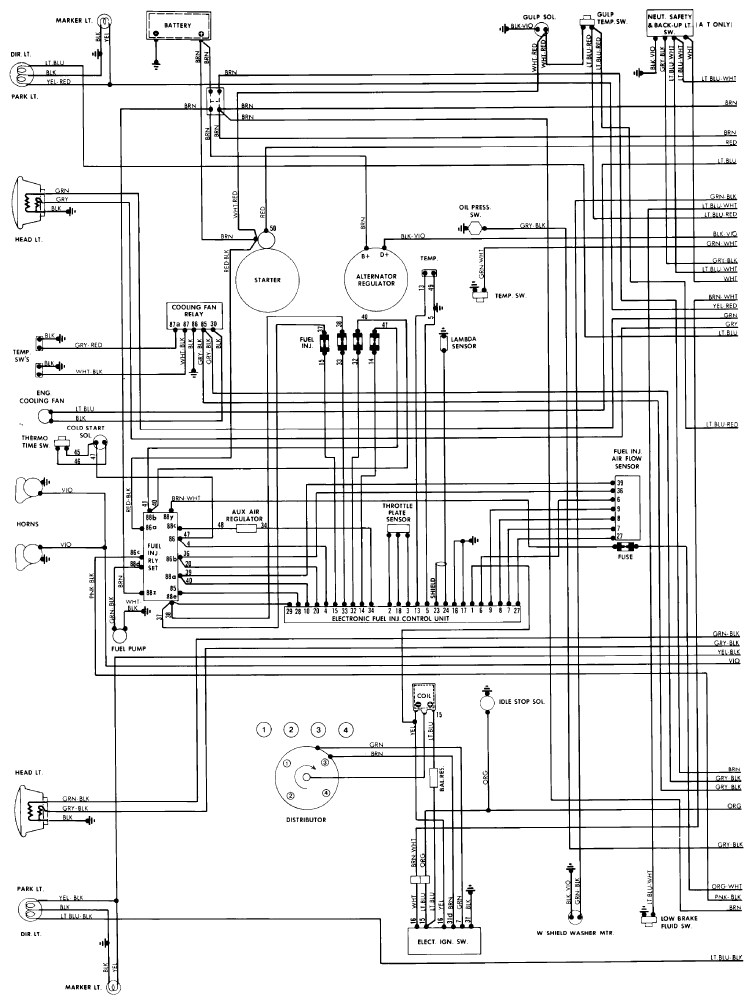

Fig 1: Wiring Diagram - Strada (1 of 4)
Courtesy of NOT AVAILABLE
Courtesy of NOT AVAILABLE
