Rear Switch Assembly
WARNING: This page is about a different car, the 2020 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Some interior trim packages may make switch removal difficult by traditional means, and require interior trim panel removal to service the switch assembly.
- Remove the rear door interior trim panel. Refer to PANEL, REAR DOOR TRIM, REMOVAL .
- Pull the trim panel away far enough to access and disconnect the electrical connector.

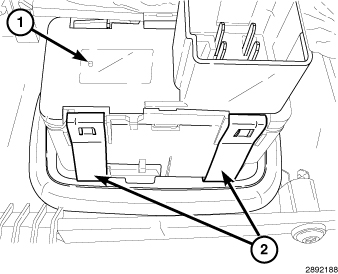

- Access the four clips (2) that secure the switch (1) to the trim panel from the back. Compress the clips and remove the switch.
