Tank, Fuel: Installation

Install the fuel pump module if it was previously removed. Refer to MODULE, FUEL PUMP, INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

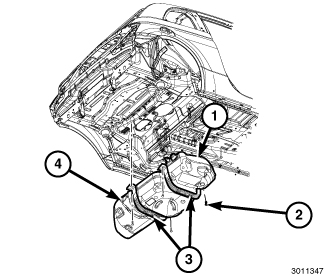

Position the fuel tank on a suitable stand to be raised into the vehicle. Tighten the fuel tank strap bolts (2) to 35 N.m (26 ft. lbs.).

Courtesy of CHRYSLER GROUP, LLC

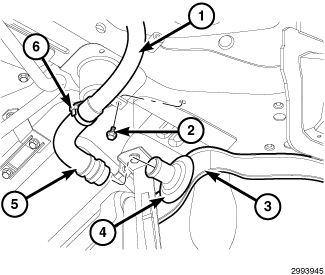

Install the fuel filler connector tube (5) onto the fuel tank (3).

Courtesy of CHRYSLER GROUP, LLC

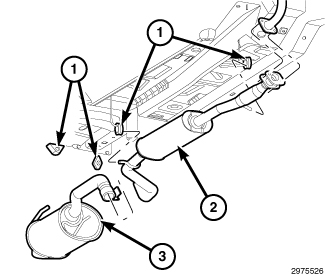

Install the muffler (2) and resonator (3). Refer to MUFFLER, EXHAUST, INSTALLATION .
Lower the vehicle.

Courtesy of CHRYSLER GROUP, LLC
Attach the three fuel lines to the fuel pump (1, 2 and 3).

Courtesy of CHRYSLER GROUP, LLC
Connect the fuel pump module electrical connector (4).
Install the access cover (1). Tighten screws (2).

Courtesy of CHRYSLER GROUP, LLC
Install the molded carpet. Align the prop slots (1) and seat catches (2) into position.
Fill tank with fuel and install fuel fill cap.
Connect the battery negative cable.
Run vehicle. Inspect for leaks.
