Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/C Cooling Fan Controller | Under left side of dash. |
| A/C (ATC) Blower Motor Speed Controller | On center of evaporator case. |

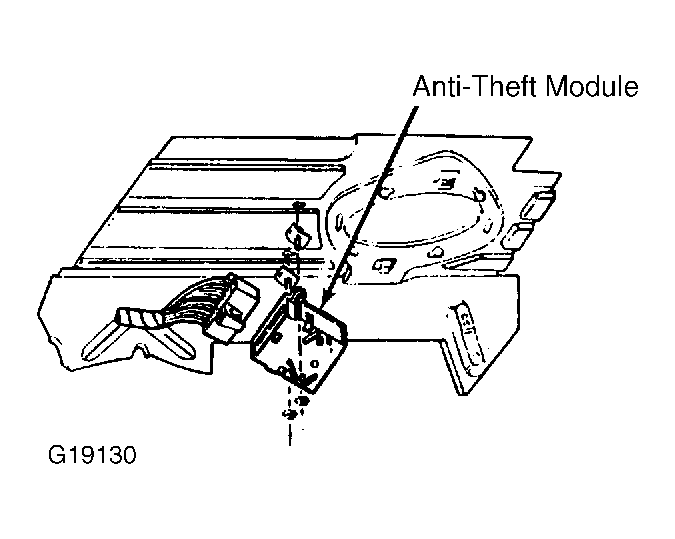

| Anti-Theft Module | In upper right side of trunk. See Figure. |
| Electronic Control Assembly (ECA) | On right side cowl, at access hole. |

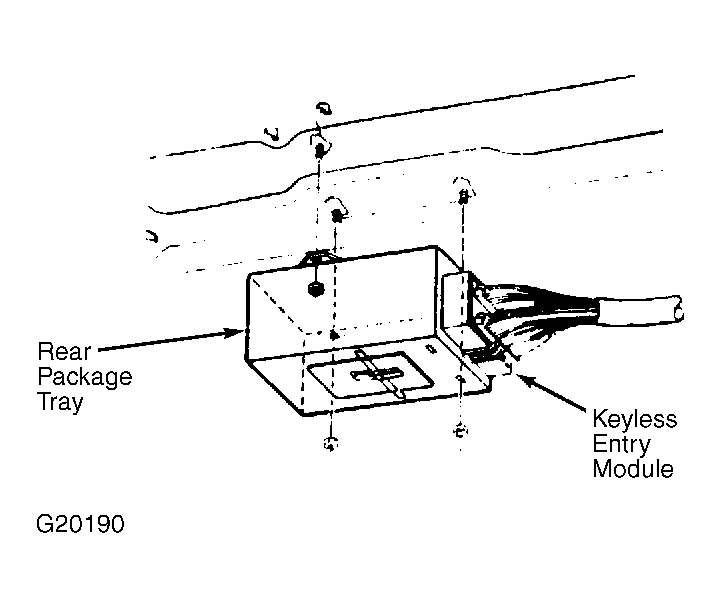

| Keyless Entry Module | Mounted on package tray, behind rear seat. See Figure. |

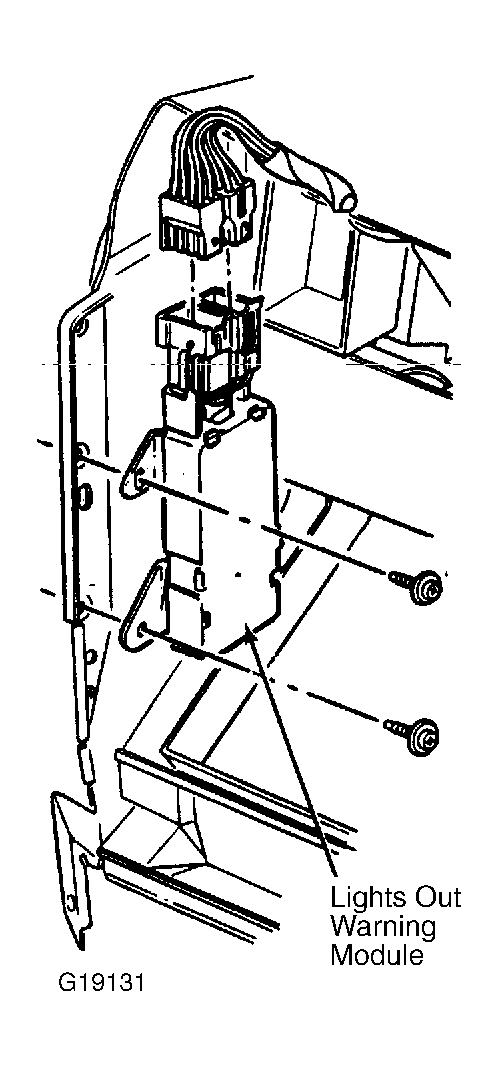

| Lamp Out Warning Module | Behind extreme right side of dash. See Figure. |

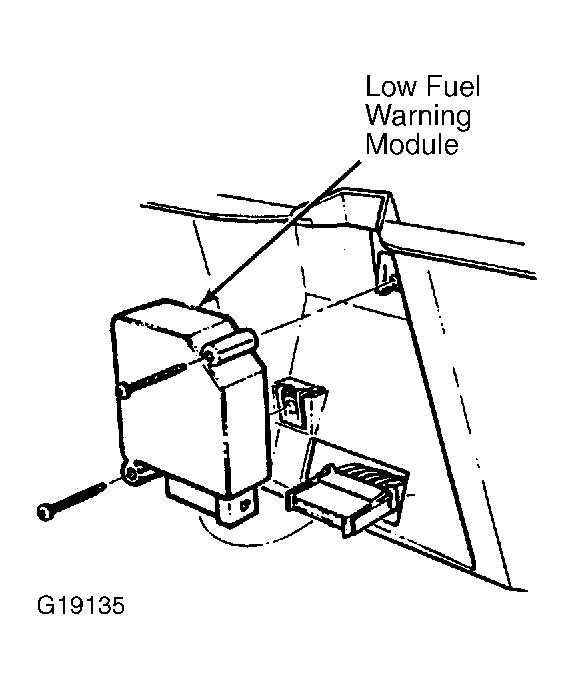

| Low Fuel Warning Module | Behind upper right side of dash, above glove box. See Figure. |

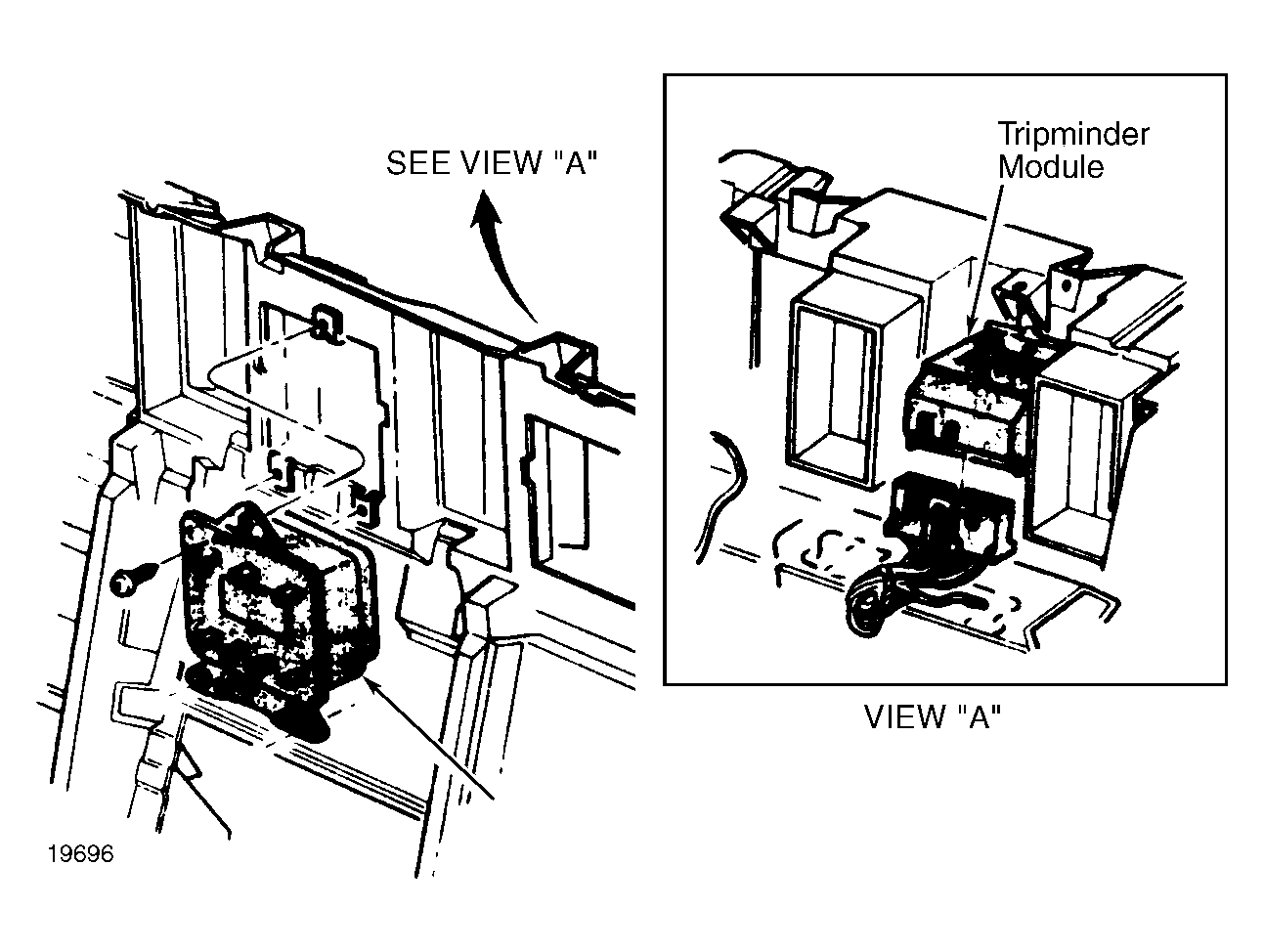

| Tripminder Module | Behind center of dash, above radio. See Figure. |

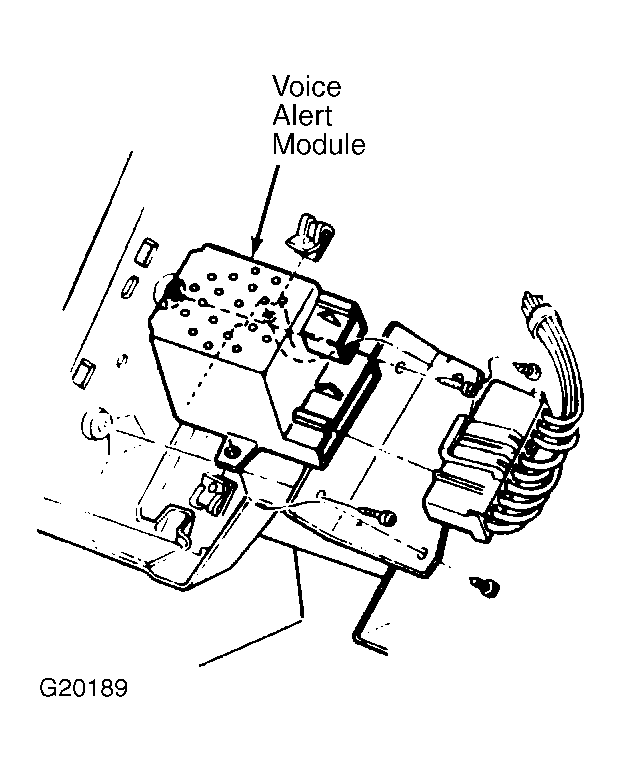

| Voice Alert Module | Behind left side of dash. See Figure. |
