Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Circuit Breakers | ||

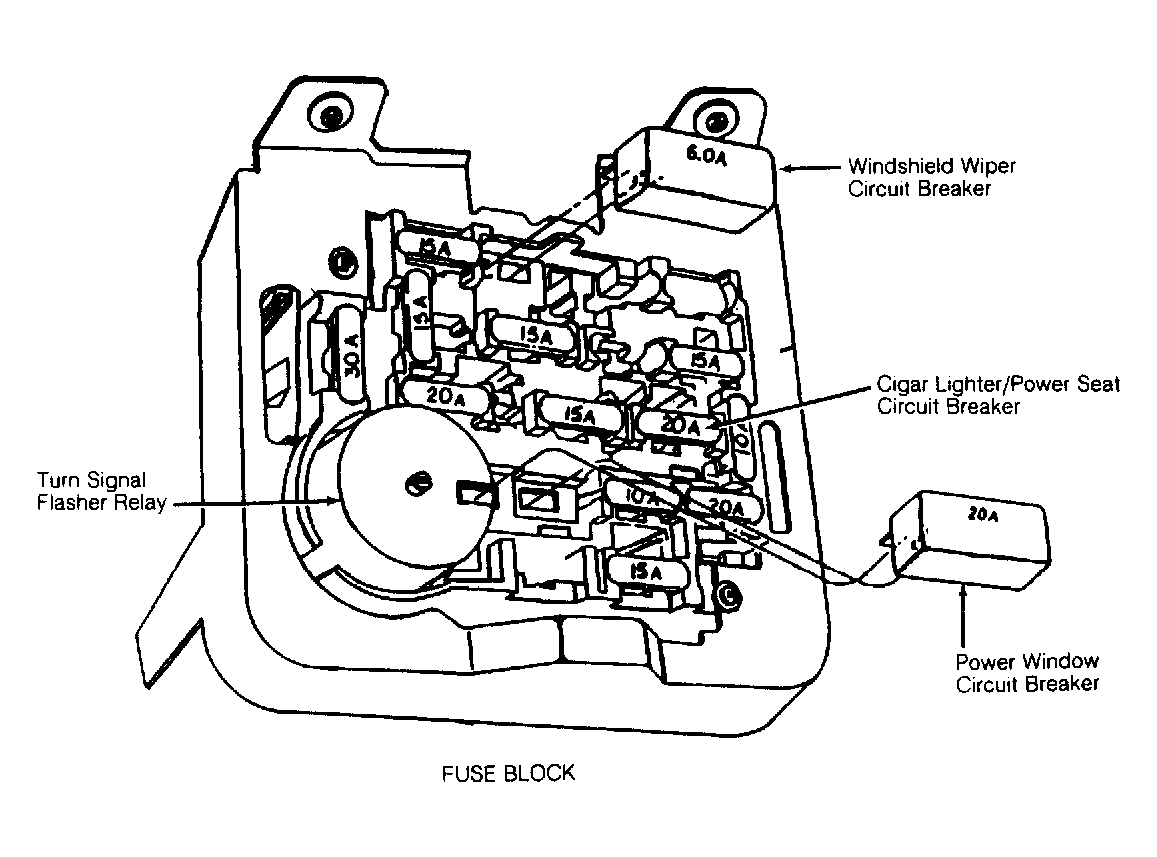

| Cigar Lighter/Power Seat | In cavity No. 12 of fuse block. See Figure . | |
| Power Windows | In cavity No. 14 of fuse block. See Figure . | |
| Rear Wiper/Rear Defroster | Behind right side of dash. | |
| Windshield Wipers | In cavity No. 2 of fuse block. See Figure . | |
| Fuse Block | ||
| Fuse Box | Under left side of dash. See Figure . | |
| Component Loacation | Under left side of dash. See Figure . | |
| Fusible Links | ||

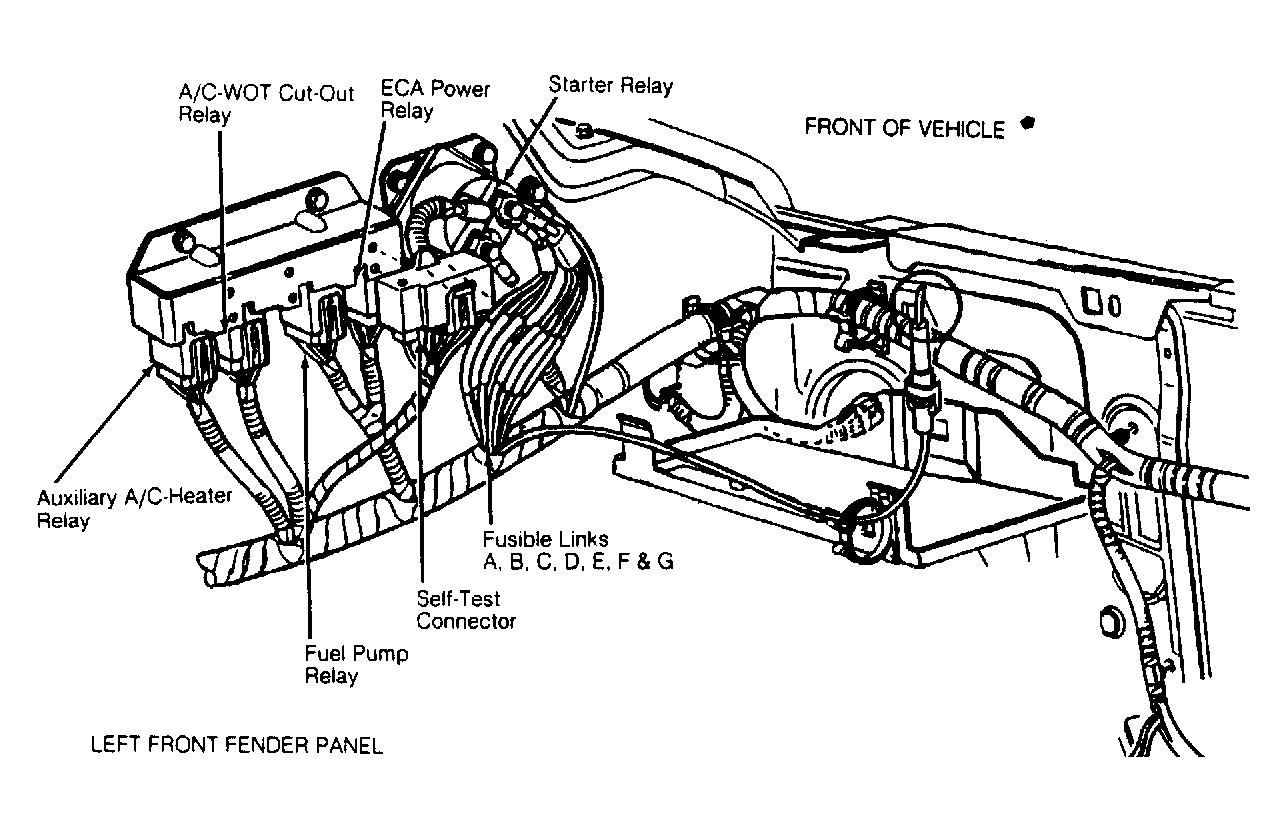

| Charging System (Green) B | On left front fender panel. See Figure . | |
| ECA Relay/Fuel Pump (Blue) E | On left front fender panel. See Figure . | |
| ECA Relay/Ign. Sw. (Blue) H | In wiring harness, right side of firewall. See Figure . | |
| EEC (Blue) G | On left front fender panel. See Figure . | |
| Fuse Block (Black) C | On left front fender panel. See Figure . | |
| Ignition System (Black) D | On left front fender panel. See Figure . | |
| Power Locks/Rear Defrost (Brown) F | On left front fender panel. See Figure . | |
| Trailer Wiring (Brown) A | On left front fender panel. See Figure . | |
| Trailer Tow In-Line Fuse | Inside trailer tow relay module. | |
