Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| Anti-Lock Brake Control Module (1990) | On left side of firewall. | |
| Diesel Warning Light Module (1990) | Behind left side of dash. | |
| Elect. Control Assembly (ECA) | Under right side of dash, behind access panel. | |
| Glow Plug Controller (Diesel) | On top rear side of engine. | |
| Inferred Mileage Sensor Module | Under dash, above left kick panel. | |

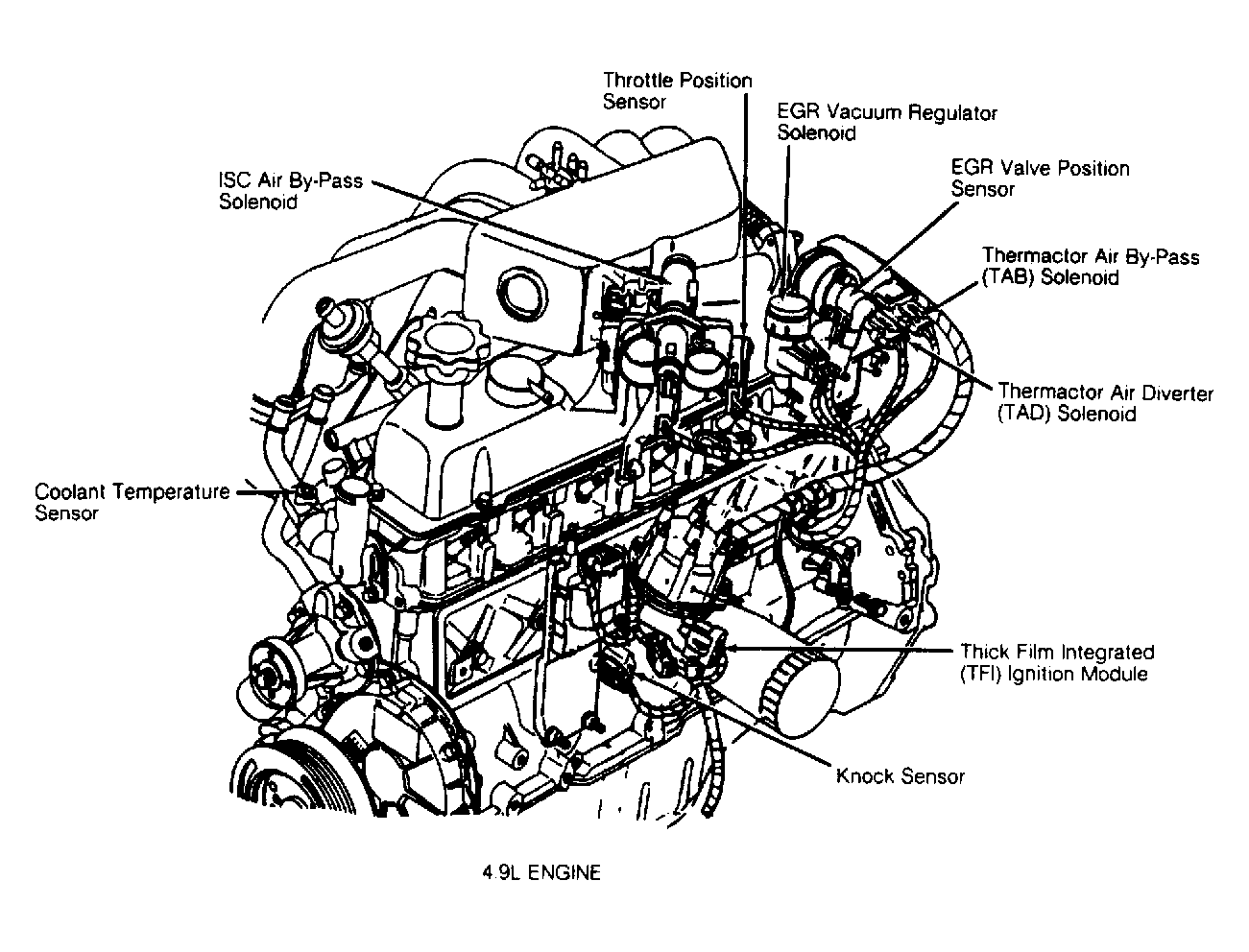

| TFI Ignition Module | ||
| 7.5L | On base of distributor. See Figure . | |
| Except 7.5L | On left fender apron. | |
| Transmission ECA | Under blower motor. | |
| Warning Chime Module | Under dash, behind fuse block bracket. See Figure . | |
