Overhaul - AOD: Reassembly: Notes
NOTE:

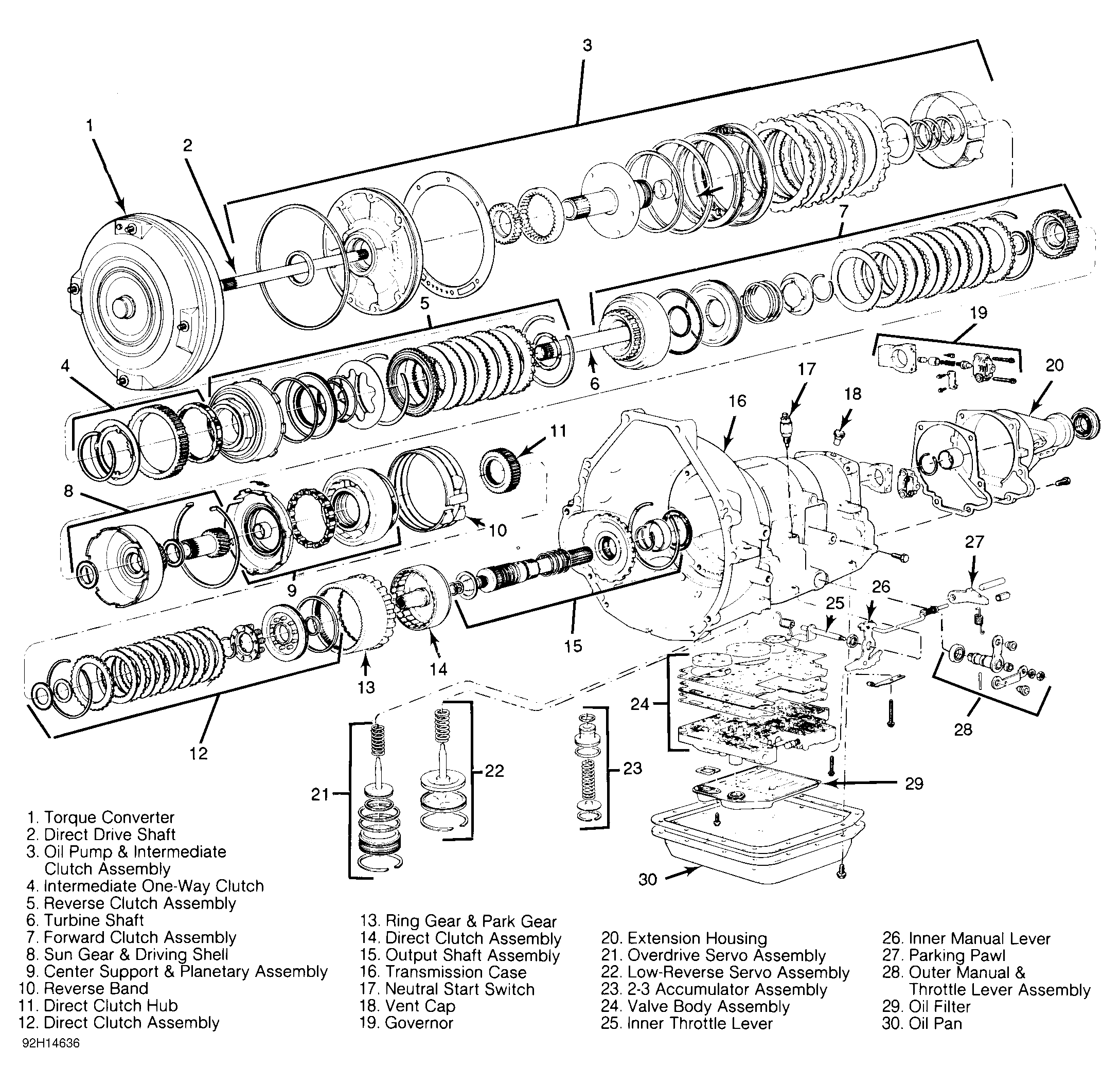

See Figure

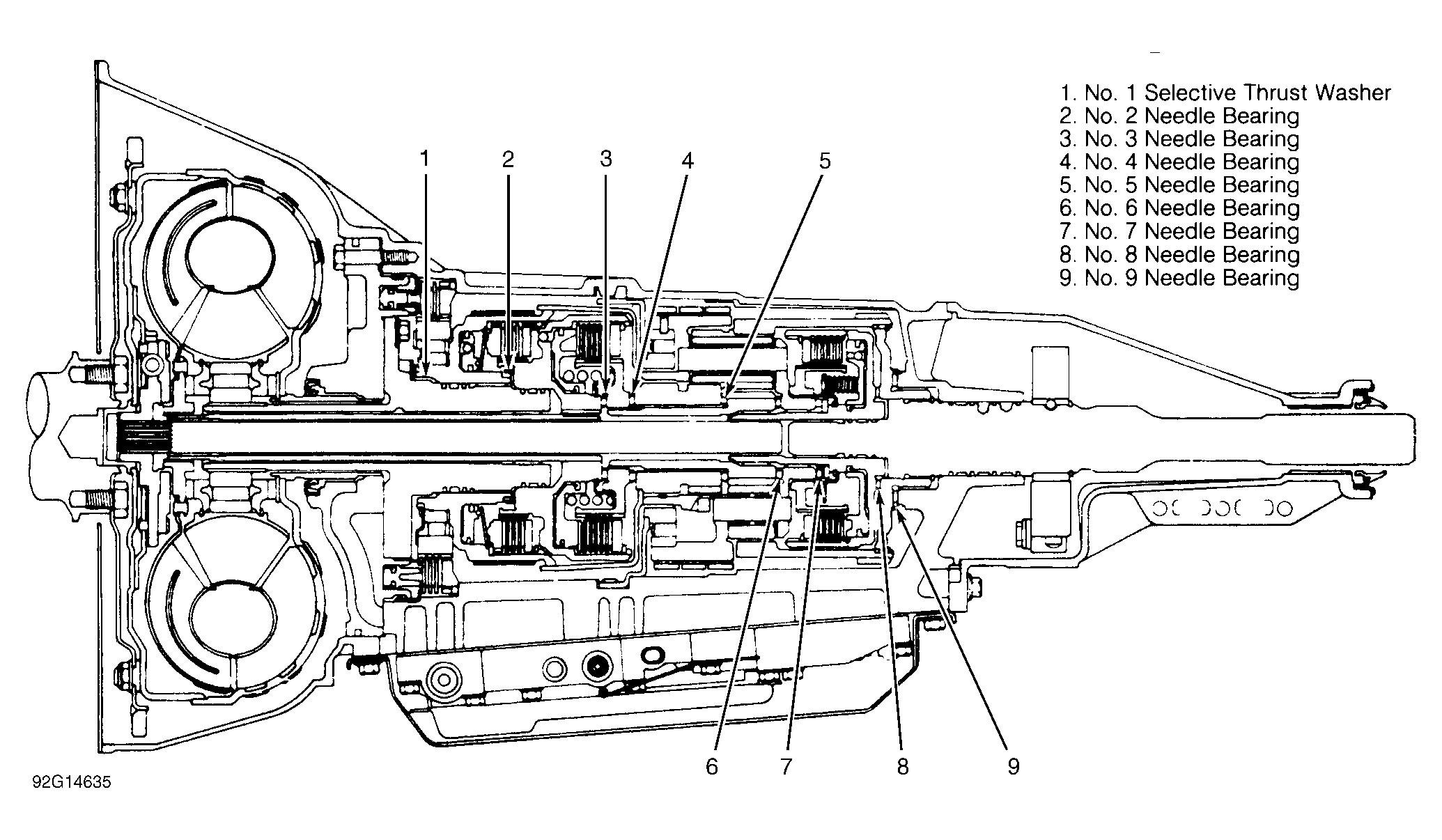

and Figure
for exploded view of internal parts, thrust washer and needle bearing locations. Lubricate all parts with ATF. Use petroleum jelly on gaskets, thrust washers, and needle bearings to retain in place. Use NEW gaskets and seals.
