Fuel Supply Manifold Assembly (3.0L): Notes
- Depressurize fuel system. See FUEL PRESSURE RELEASE under FUEL SYSTEM (GASOLINE). Remove throttle body. Disconnect fuel supply and return lines. See PUSH-CONNECT FITTINGS under FUEL SYSTEM (GASOLINE).

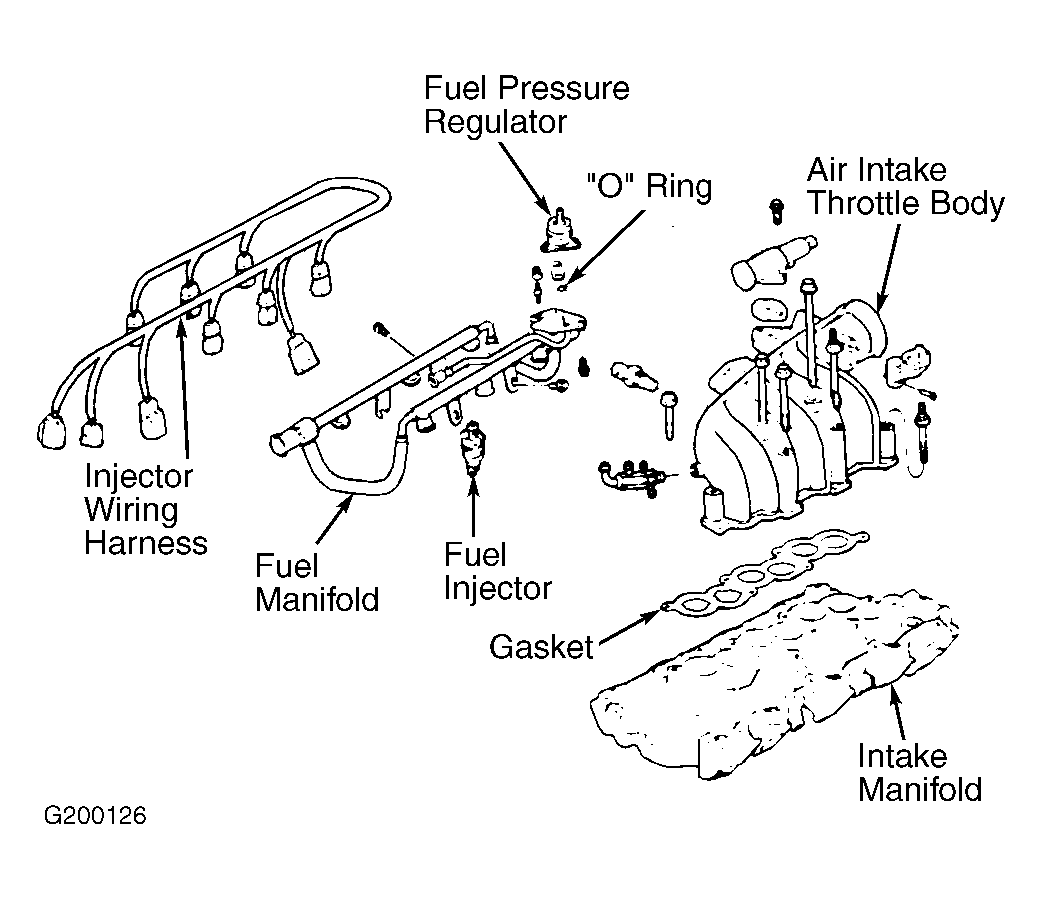

- Disconnect wiring harness at fuel injectors. See Figure. Disconnect vacuum hose from fuel pressure regulator. Remove fuel assembly manifold bolts (2 on each side). Carefully disengage fuel supply manifold from fuel injectors by lifting and gently rocking rail.
- Remove injectors from fuel supply manifold using a slight lifting/rocking motion. Place removed components in a clean container to avoid dirt or other contamination.
