Removal & Installation: Removal

NOTE: This procedure has been updated per Ford TSB 92-18B-6.

Disconnect battery negative cable. Remove right hand halfshaft. See AXLE SHAFTS - FRONT article in DRIVE AXLES section. Depress locking tabs to disconnect wiring harness connector from alternator. Remove "B" terminal attaching nut and the "B" terminal connector. See Fig 1.

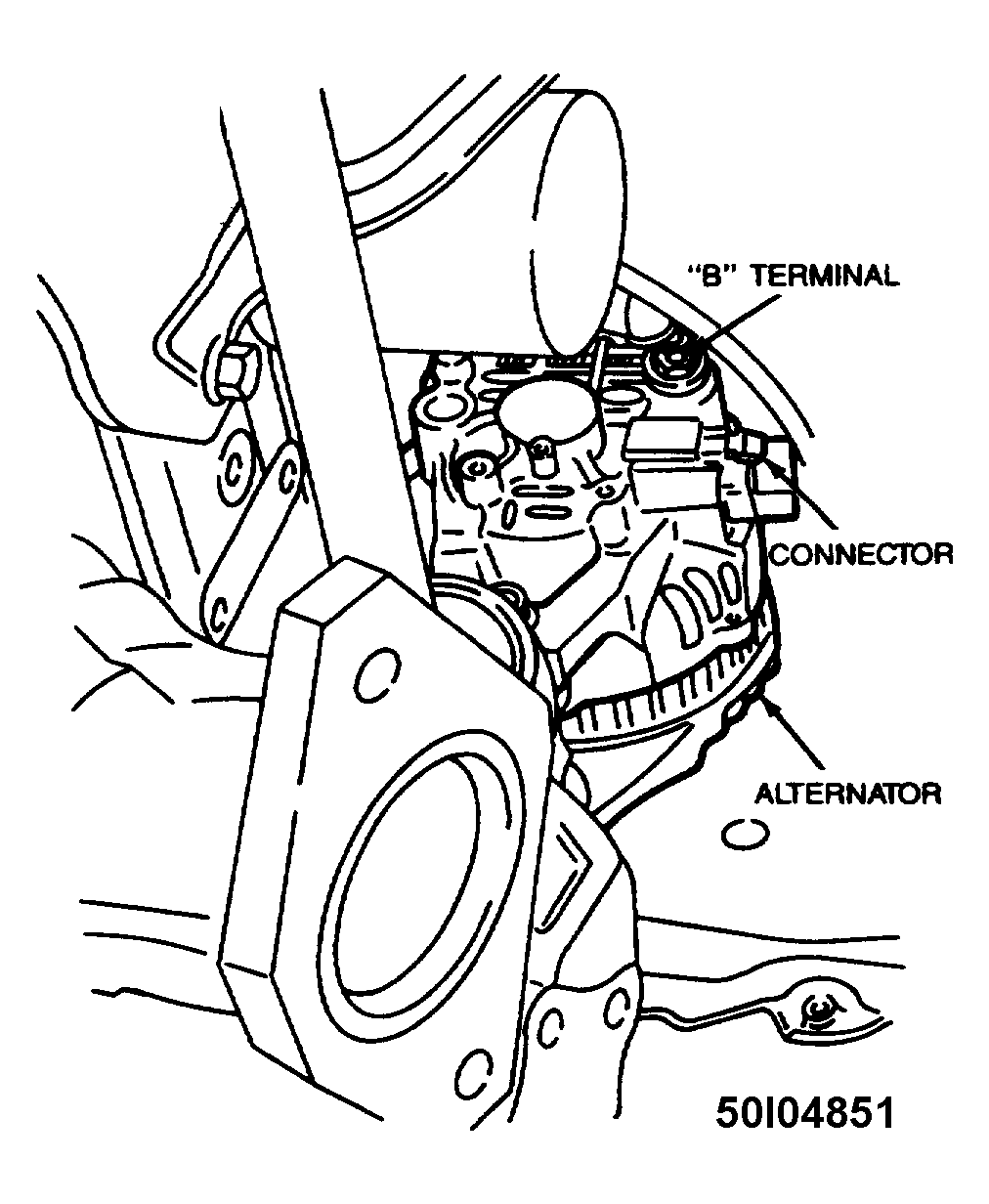

Fig 1: View of Alternator Connections
Courtesy of FORD MOTOR CO.
Loosen alternator adjustment bolt and the through-bolt enough to allow alternator to pivot. See Fig 2. Remove alternator drive belt.

Fig 2: View of Alternator Attaching & Adjusting Bolts
Courtesy of FORD MOTOR CO.
Remove alternator adjustment bracket, lock bolt and through-bolt. While holding alternator to prevent it from falling, remove alternator between the steering gear and the right halfshaft. See Fig 1.

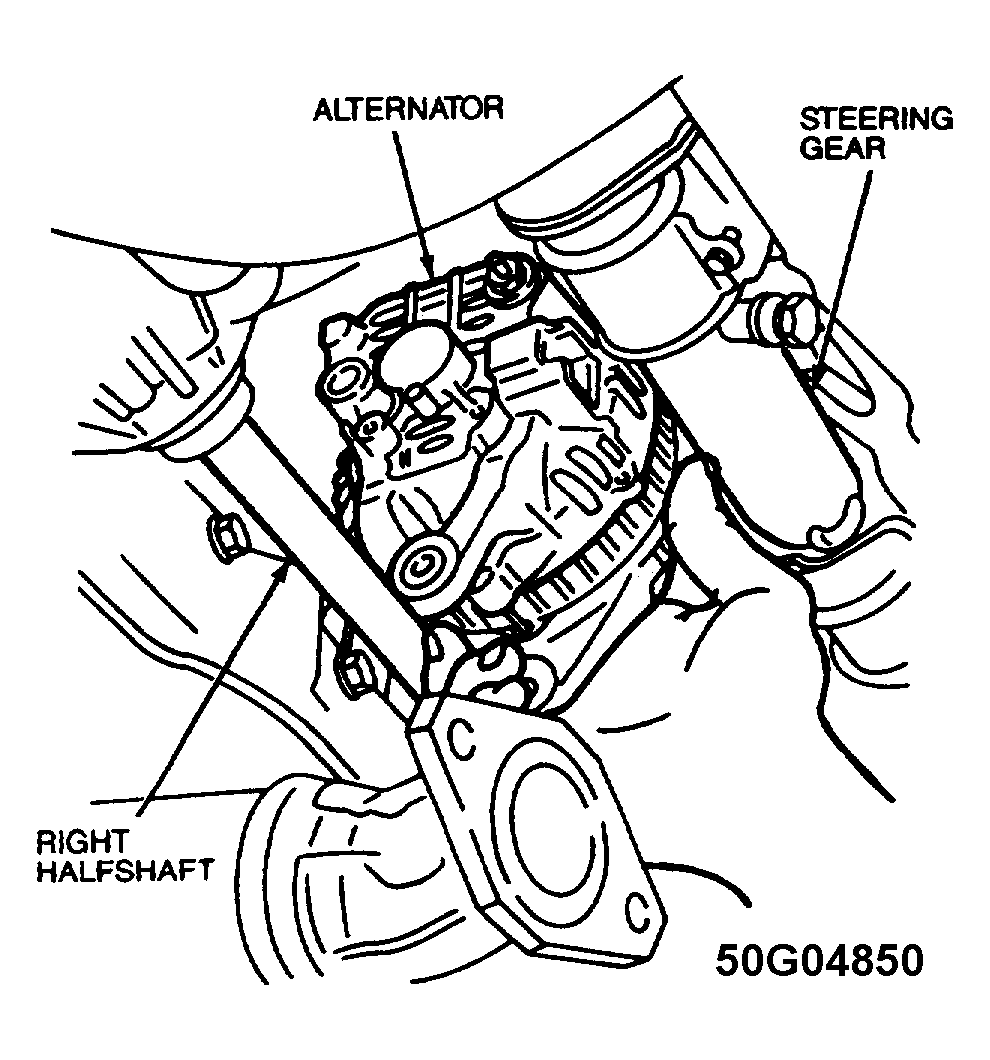

Fig 3: Removing Alternator

Courtesy of FORD MOTOR CO.
