Component Locations

COMPONENT LOCATIONS

Component Location
Engine Compartment Fuse Panel
Diesel Right Side Of Engine Compartment
Gasoline Left Front Of Engine Compartment, Right Of Battery. See Fig 1 .
System Ground
G100 Left Side Of Engine Compartment, Near Battery
G200 Below Left Side Of Cowl. See Fig 2 .
Remote Convenience Electronic Control Module Behind Left B Pillar. See Fig 3 .

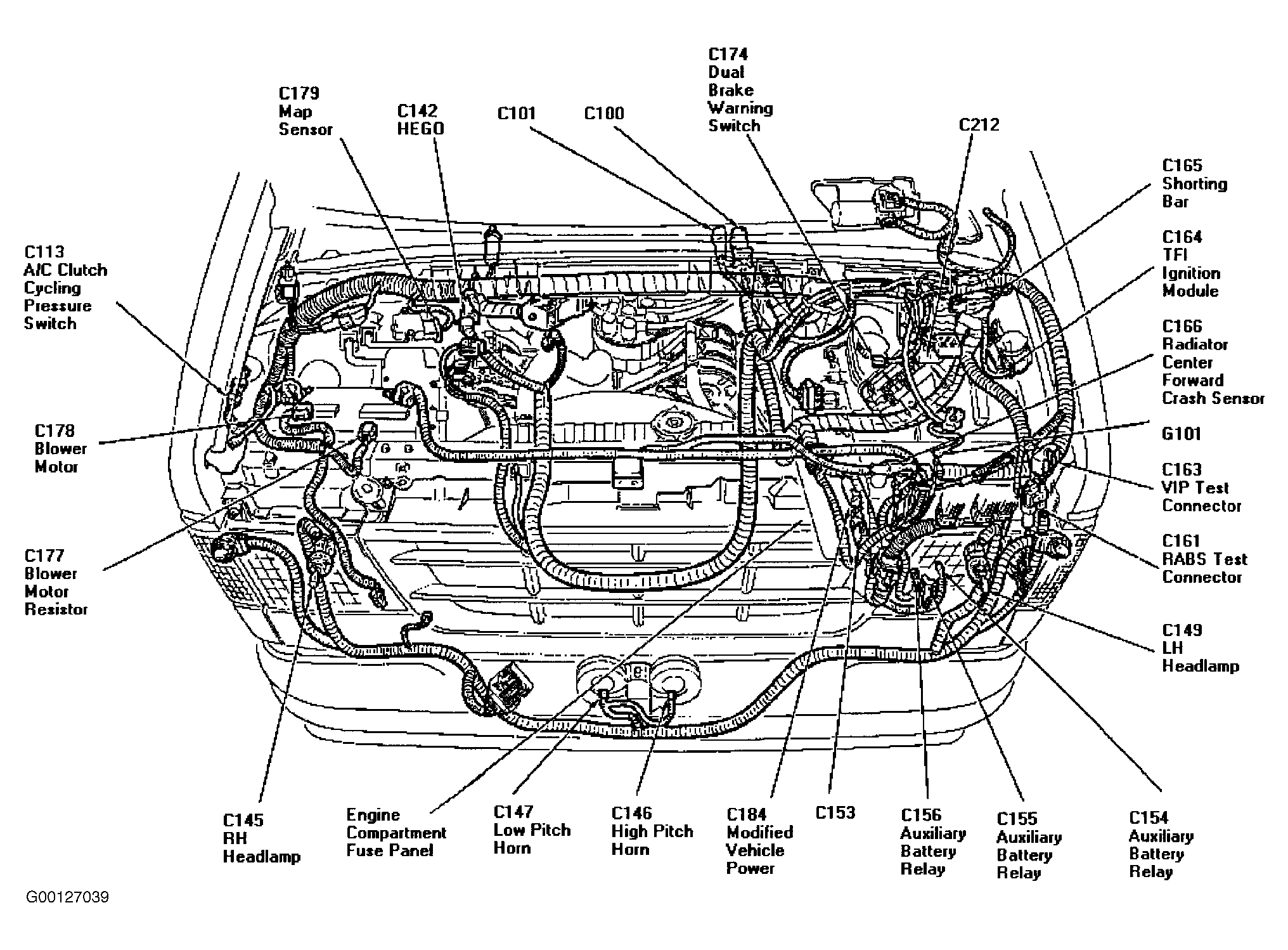

Fig 1: Locating Engine Compartment Fuse Panel
G00127039Courtesy of FORD MOTOR CO.

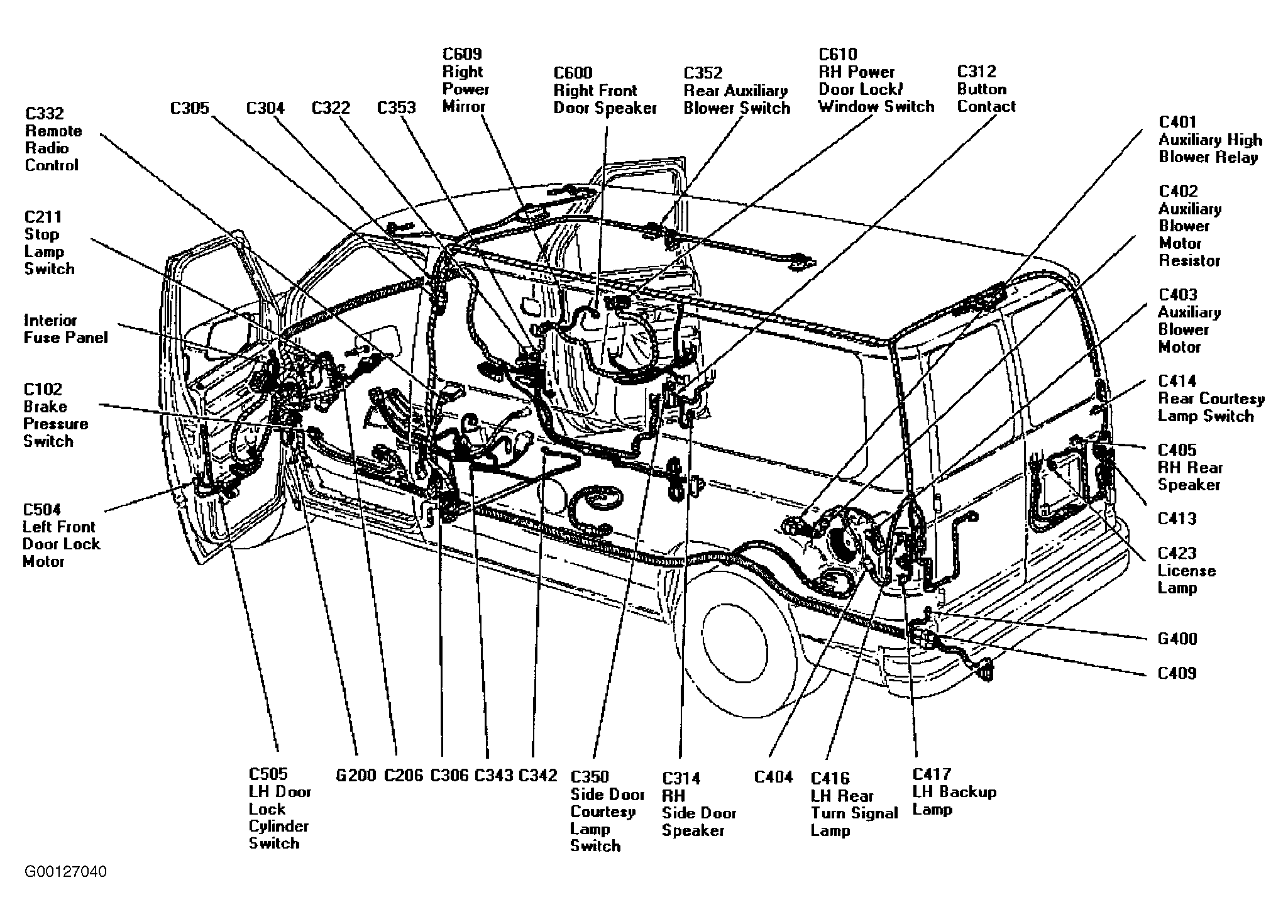

Fig 2: Locating Ground G200
G00127040Courtesy of FORD MOTOR CO.

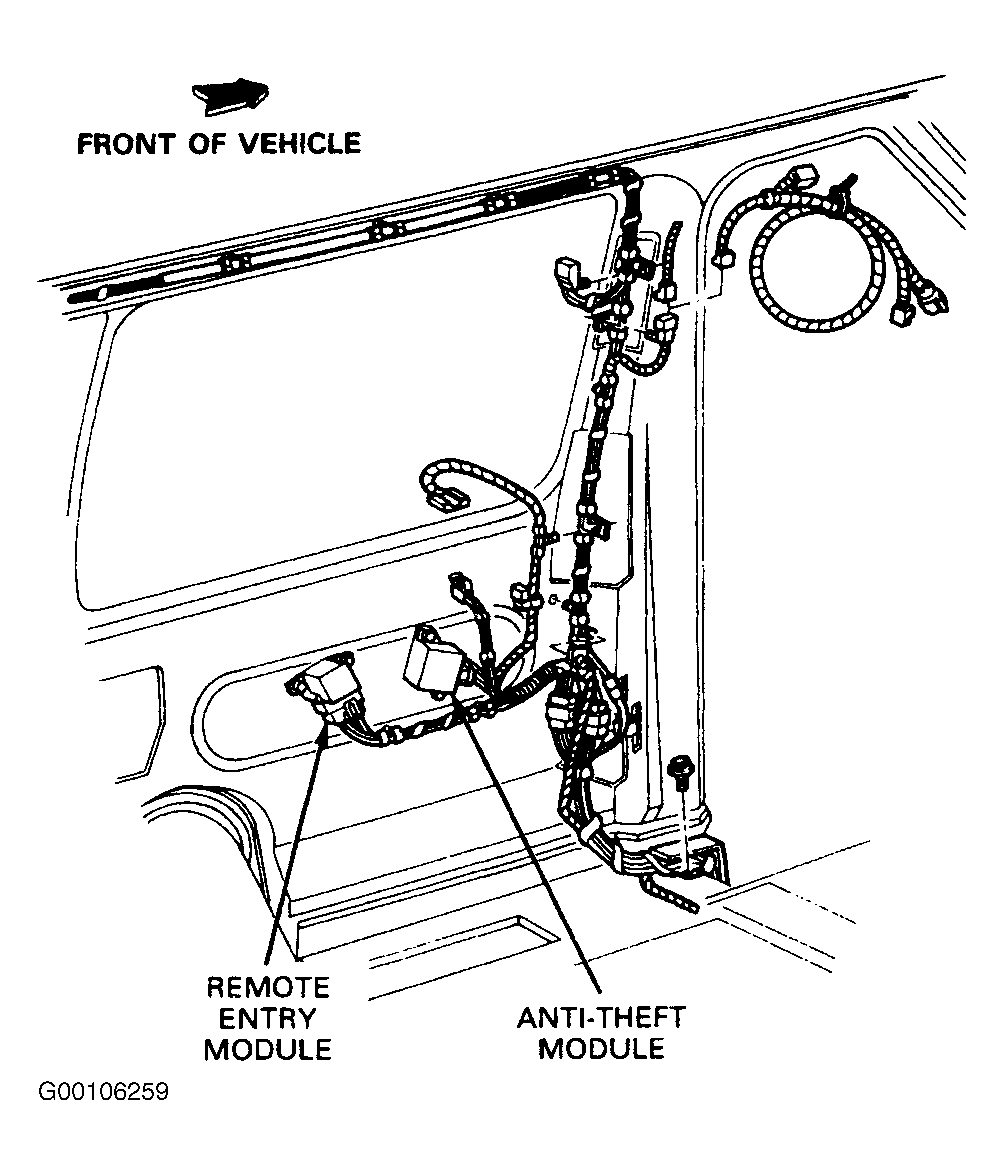

Fig 3: Locating Remote (Entry) Electronic Convenience Module
G00106259Courtesy of FORD MOTOR CO.
