Transaxle Reassembly: Notes
NOTE:
Handle all parts carefully to avoid damaging bearings and mating surfaces. Lubricate all parts with clean ATF. Use petroleum jelly on gaskets, thrust washers and needle bearings to retain them in place. Soak all friction discs in ATF for at least 15 minutes. Use all new gaskets and seals, and tighten bolts evenly.
NOTE:

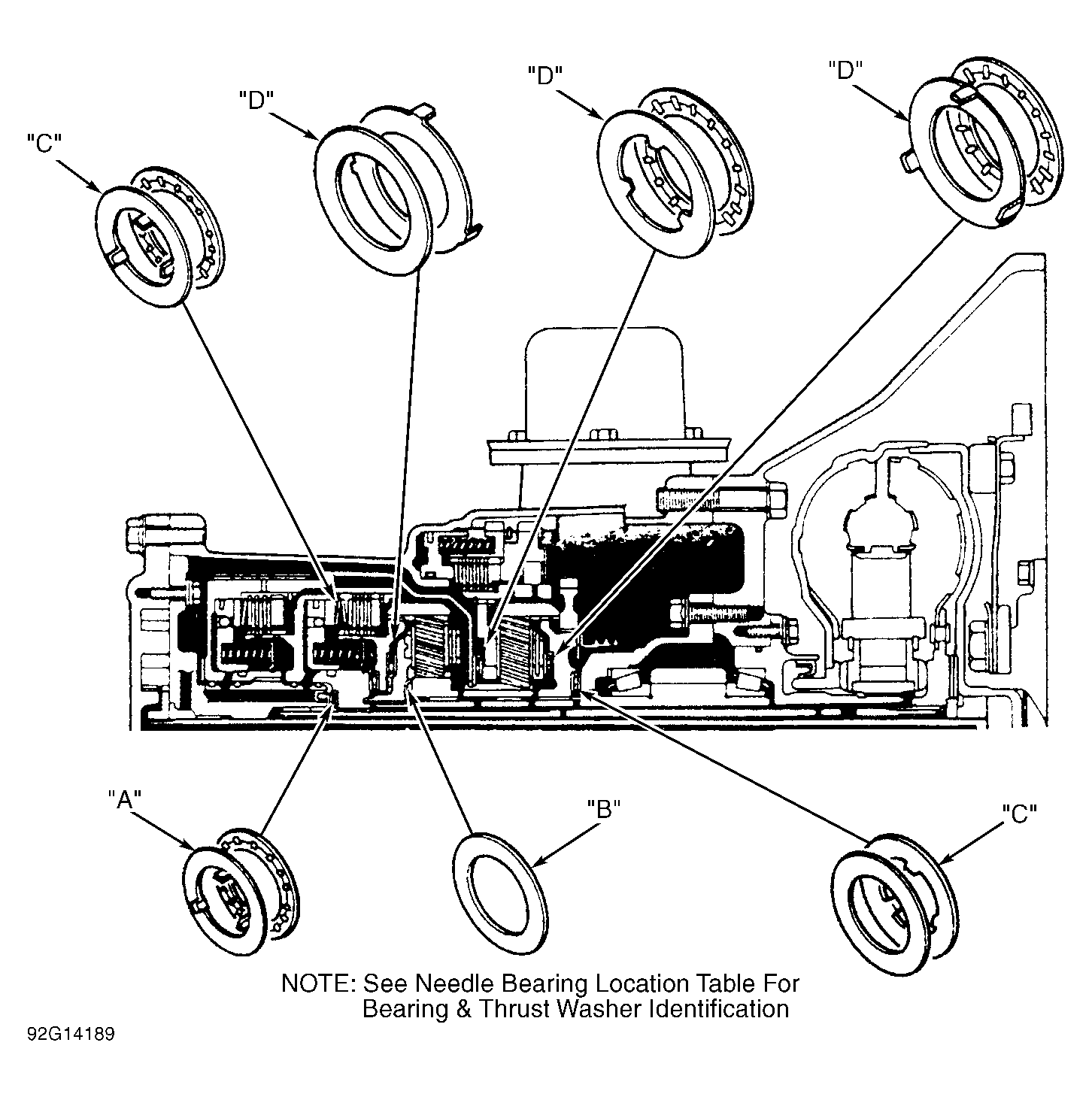

For identification and position of thrust bearings and washers, see Figure
.
