Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | ||
|---|---|---|---|

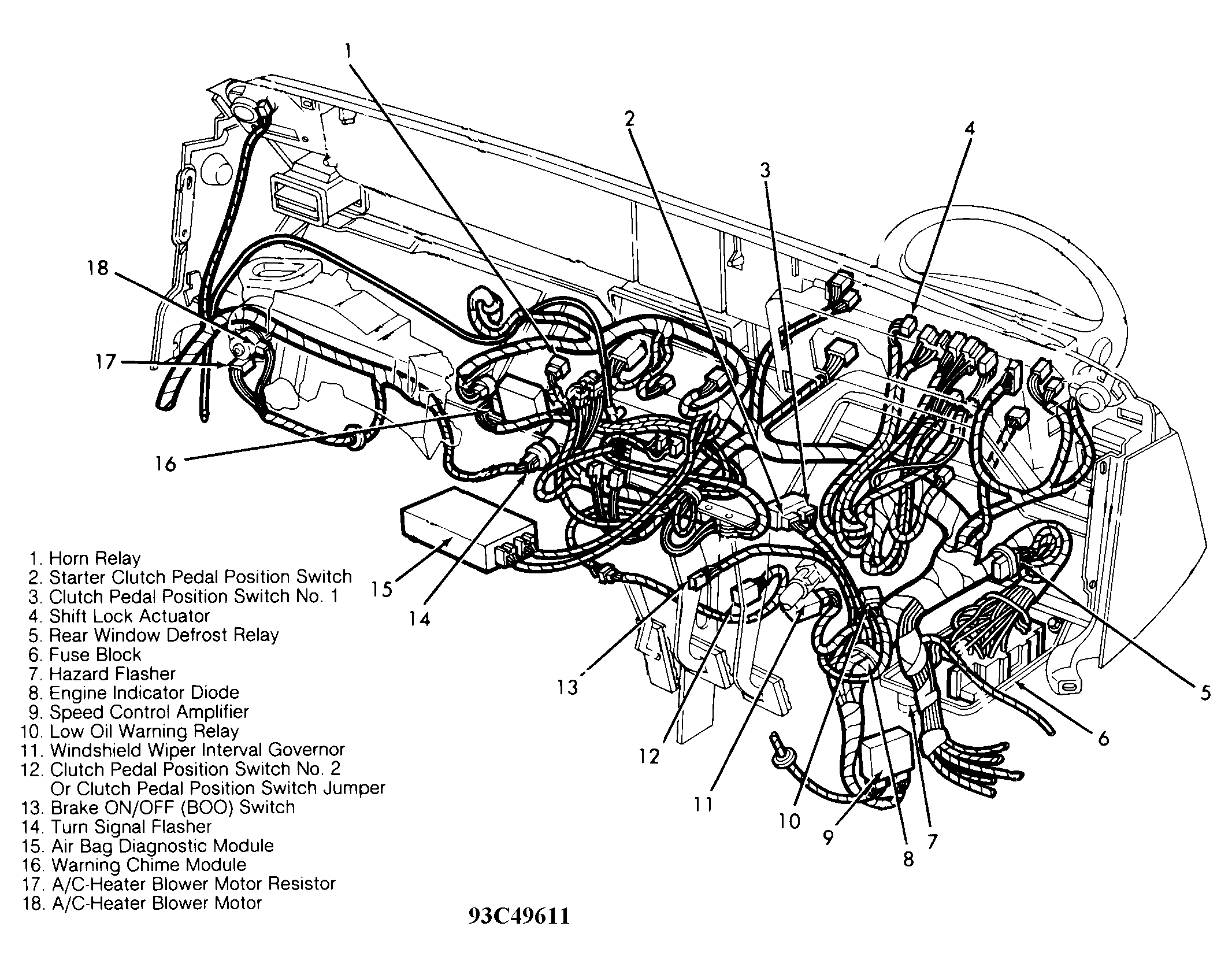

| Fuse Block | Behind left side of dash. See Figure . | ||
| Fusible Links | |||
| "A", "B" & "C" (Black) | At starter relay. | ||
| "D" (5.0L) (Brown) | At starter relay. | ||
| "E" (Brown) | |||

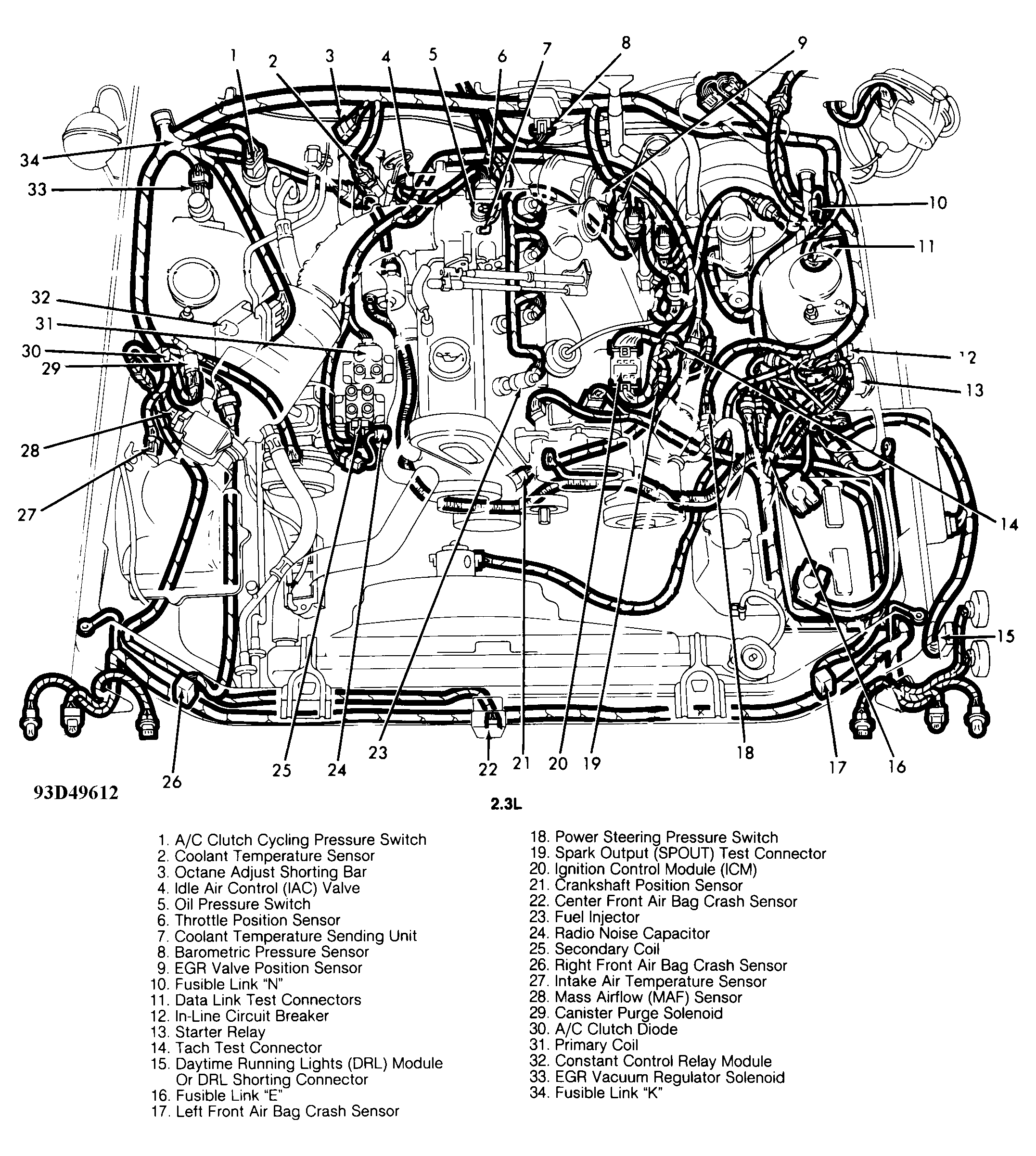

| 2.3L | In left side of engine bay, behind battery. See Figure . | ||

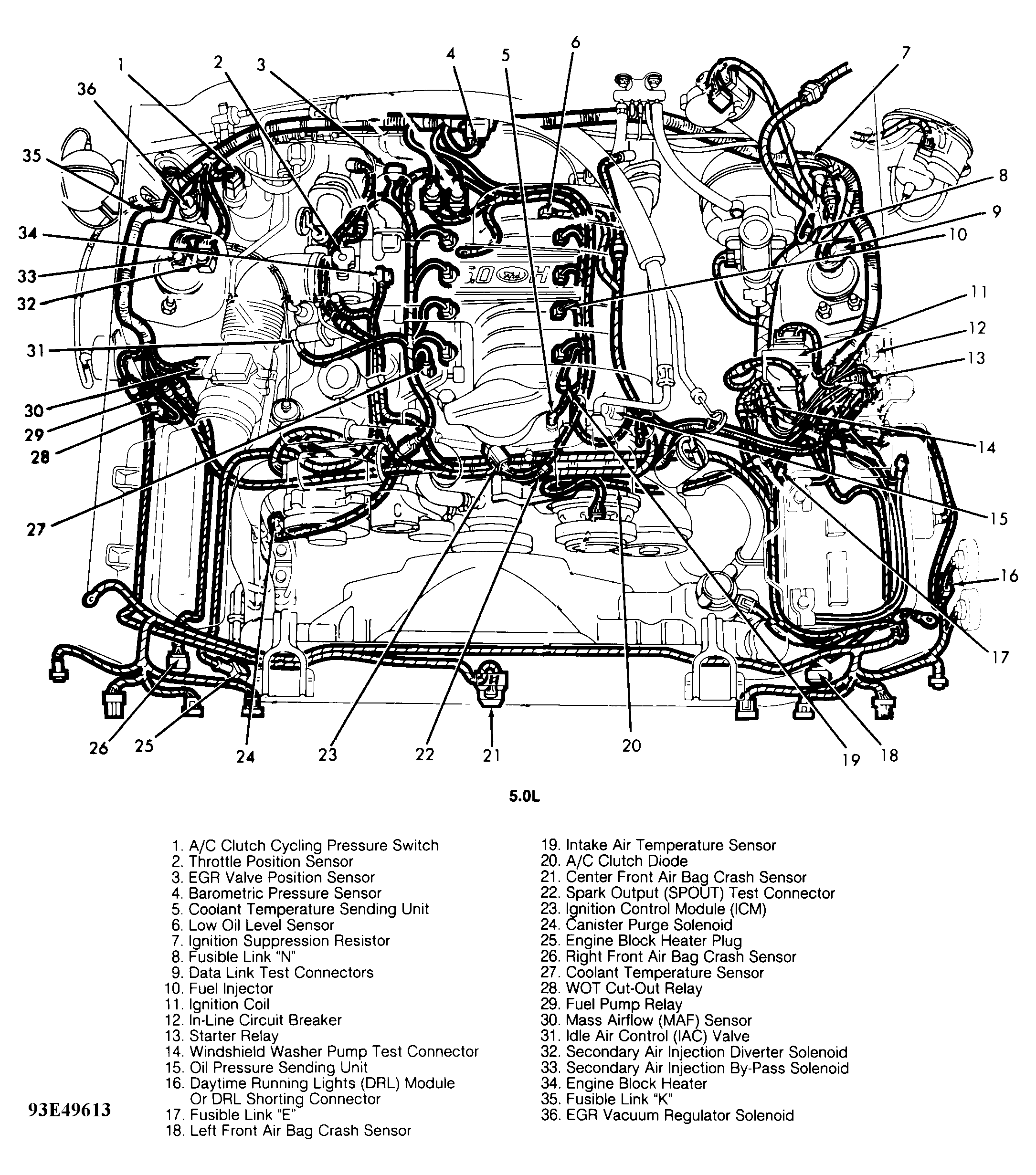

| 5.0L | In left side of engine bay, behind battery. See Figure . | ||
| "F" (Green) | At starter relay. | ||
| "G" | |||
| 2.3L (Brown) | At starter relay. | ||
| 5.0L (Dark Blue) | At starter relay. | ||
| "H" (2.3L) (Brown) | At starter relay. | ||
| "J" (2.3L) (Dark Blue) | At starter relay. | ||
| "K" (Dark Blue) | |||
| 2.3L | In engine bay, behind right strut tower. See Figure . | ||
| 5.0L | In engine bay, behind right strut tower. See Figure . | ||
| "N" (Dark Blue) | |||
| 2.3L | In engine bay, behind left strut tower. See Figure . | ||
| 5.0L | In engine bay, behind left strut tower. See Figure . | ||
| In-Line Circuit Breaker | |||
| 2.3L | At starter relay. See Figure . | ||
| 5.0L | At starter relay. See Figure . | ||
