Anti-Lock Brake System: Description

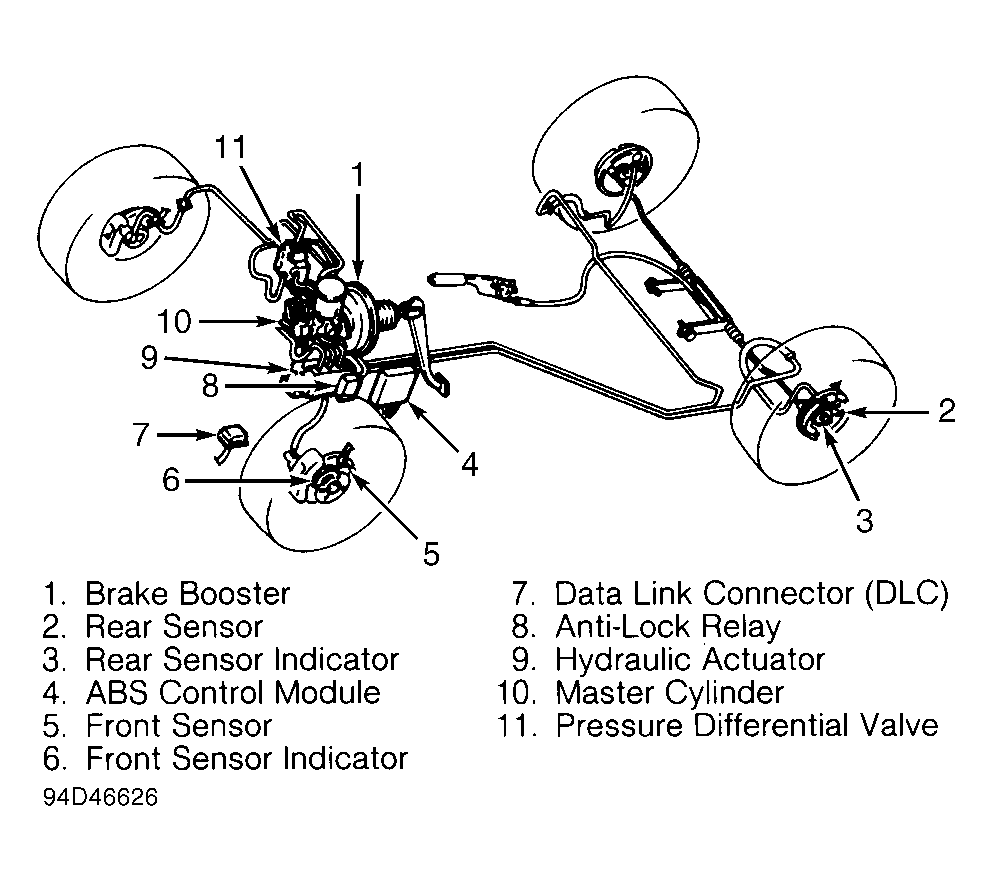

The Anti-Lock Brake System (ABS) operates by modulating hydraulic pressure to individual brakes when one or more wheels approaches a slip condition. When necessary, the ABS module sends appropriate signals to solenoid valves in the hydraulic actuator. These valves control flow to the appropriate caliper or wheel cylinder to prevent further lock-up. See Fig 1 .
NOTE:
For more information on brake system, see BRAKE SYSTEM
article in the BRAKES section.
