Wiper Switch Test
WARNING: This page is about a different car, the 1997 Mercury Cougar and 1997 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Windshield wiper switch is an integral part of multi-function switch and cannot be serviced separately. Wiper switch may also be referred to as multi-function switch.

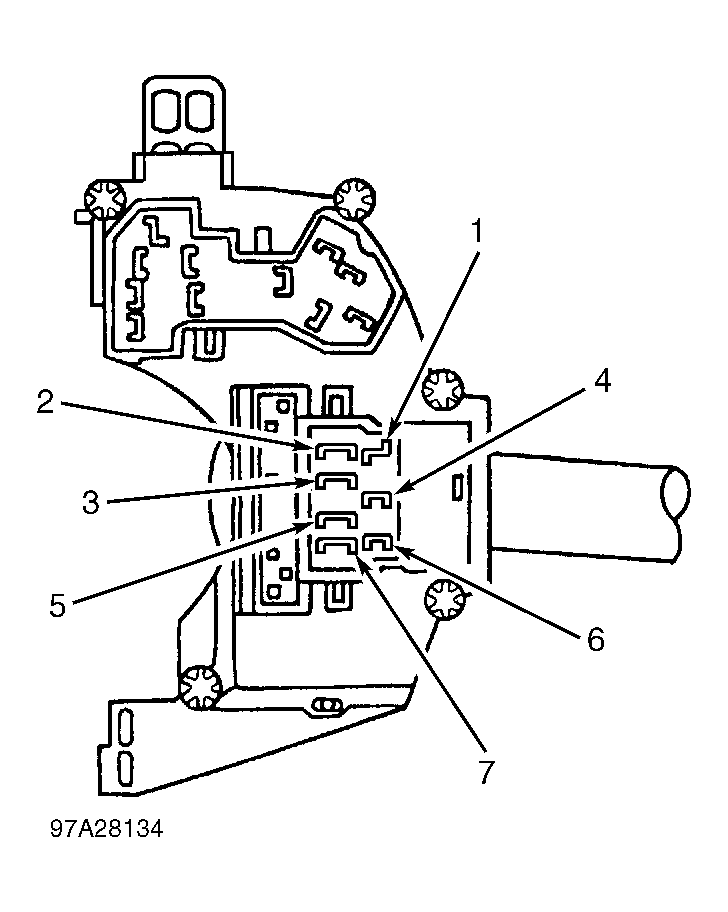

Disconnect wiper switch connector located under steering column. Check continuity or resistance, as appropriate, between specified terminals. See WIPER SWITCH TEST TABLE. See Fig 1 . Replace wiper switch if readings are not as specified.
WIPER SWITCH TEST
| Switch Position | Between Terminals No. | Specification |
|---|---|---|
| Wash Off | 1 & 4 | 47,600 Ohms |
| Wash On | 4 & 6 | Continuity |
| Wiper Off | 4 & 6 | 103,300 Ohms |
| MAX Delay | 1 & 4 | 11,330 Ohms |
| MIN Delay | 4 & 6 | 3,300-103,300 Ohms |
| Wiper LO | 4 & 6 | 3,300 Ohms |
| Wiper LO | 1 & 4 | 4,080 Ohms |
| Wiper HI | 4 & 6 | 3,300 Ohms |
| Wiper HI | 1 & 4 | Continuity |
