Upper Intake Manifold: Installation

Clean gasket mating surfaces, using caution not to gouge plastic or aluminum parts. Install a NEW gasket. Use guide pins and install upper intake manifold. Tighten bolts in sequence to specification. See Fig 1 . See TORQUE SPECIFICATIONS  . To complete installation, reverse removal procedure.

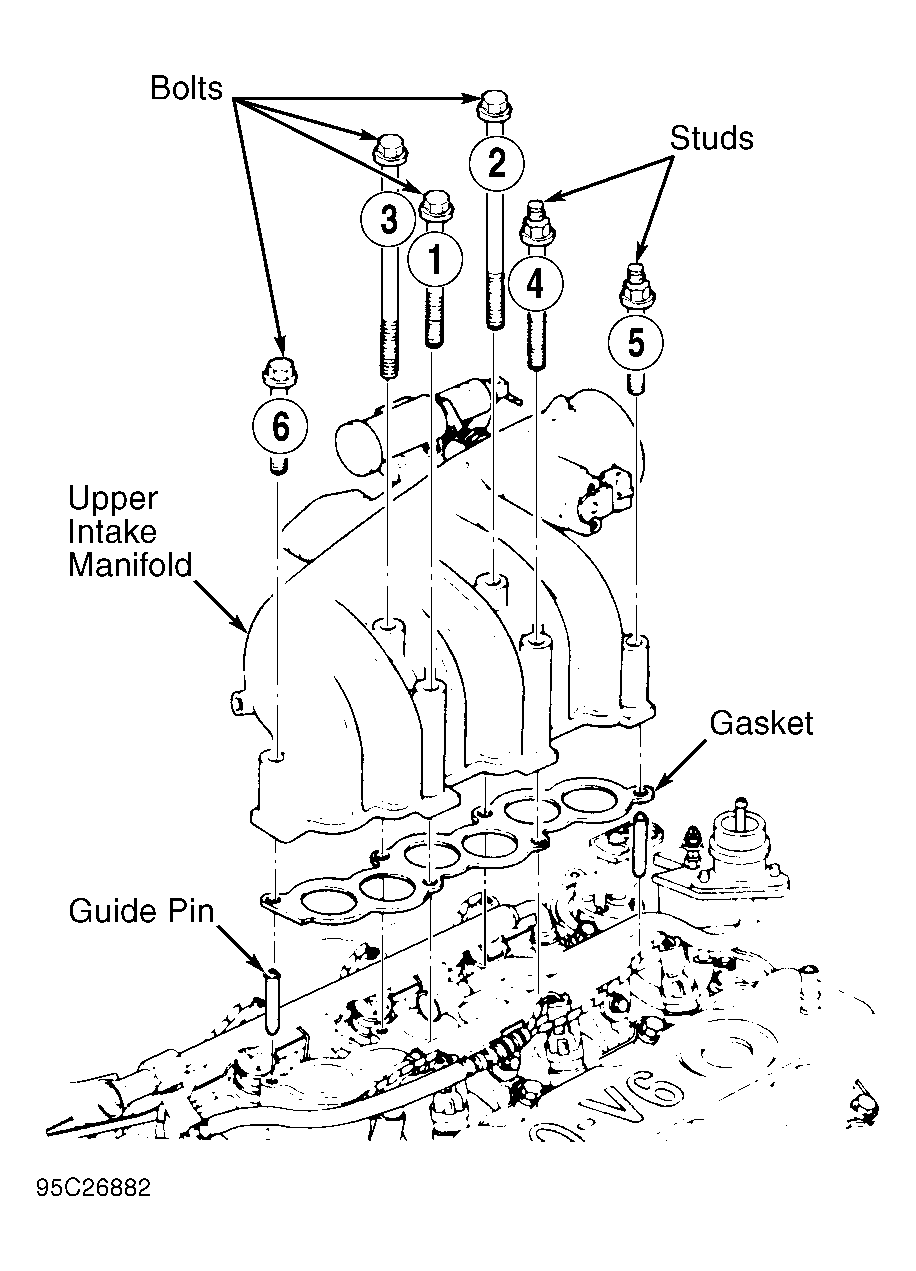

Fig 1: Upper Intake Manifold Tightening Sequence

Courtesy of FORD MOTOR CO.
