Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

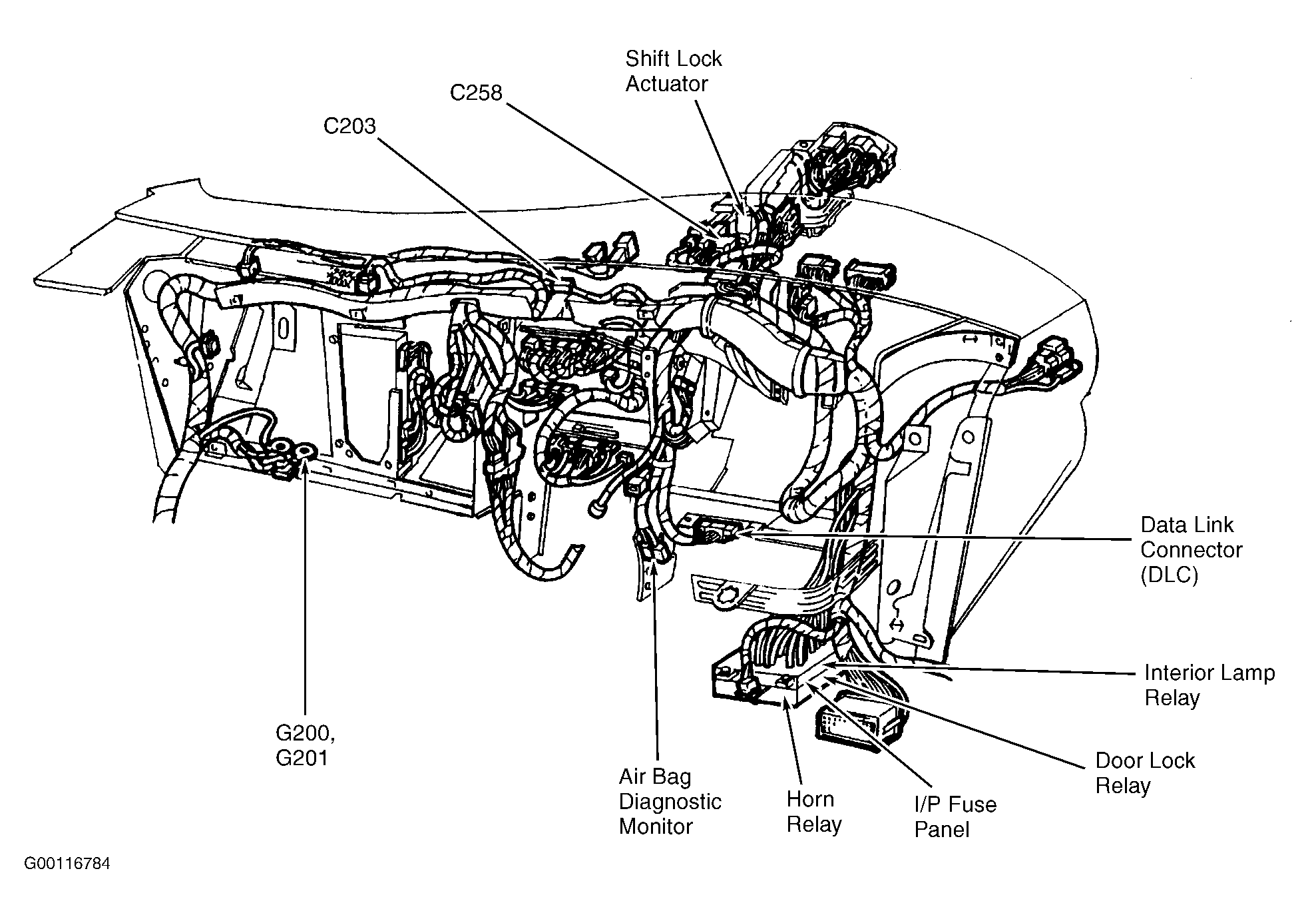

| Air Bag Diagnostic Monitor | Behind left side of dash. See Figure. |

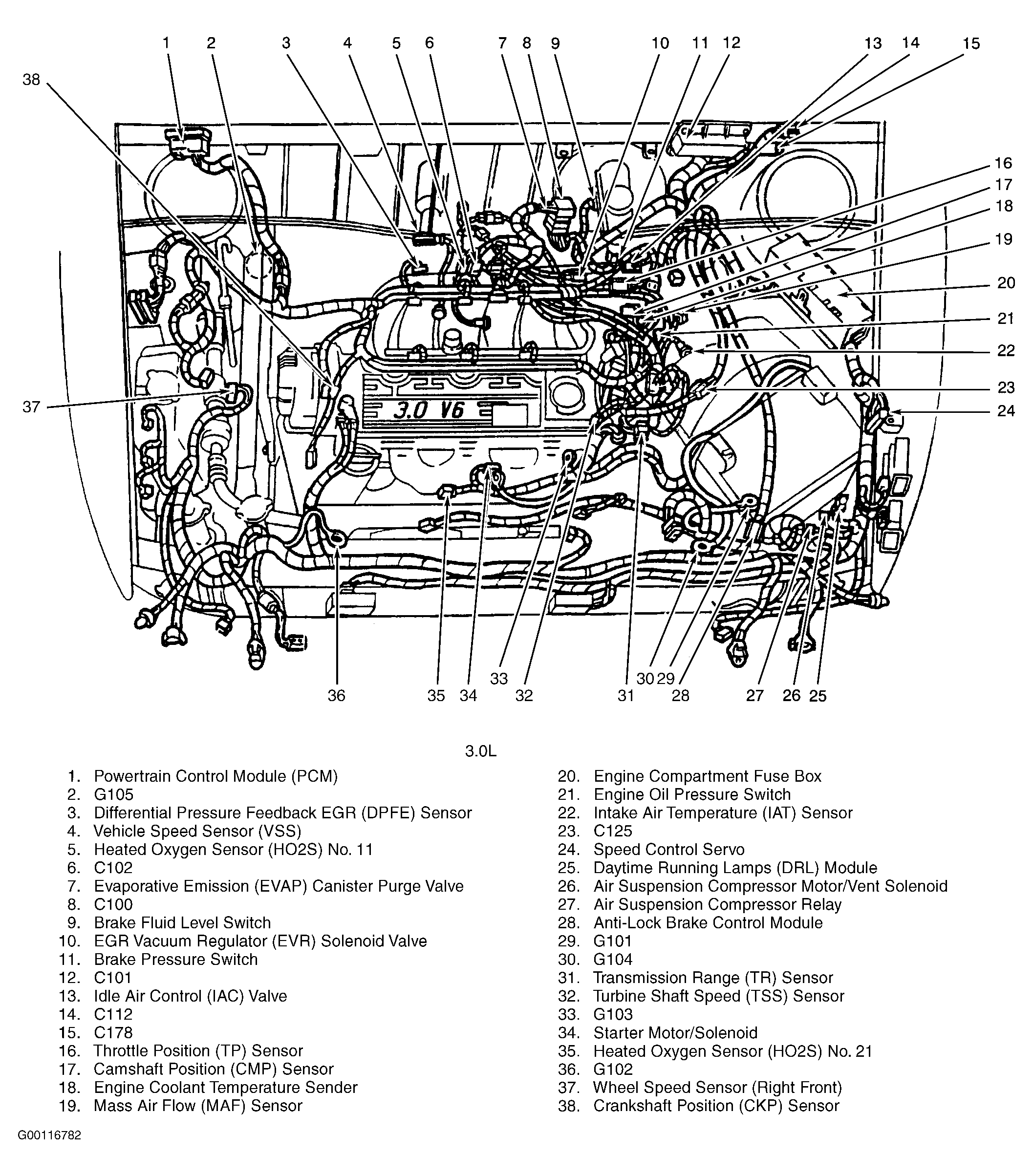

| Anti-Lock Brake Control Module (3.0L) | At left front of engine compartment. See Figure. |

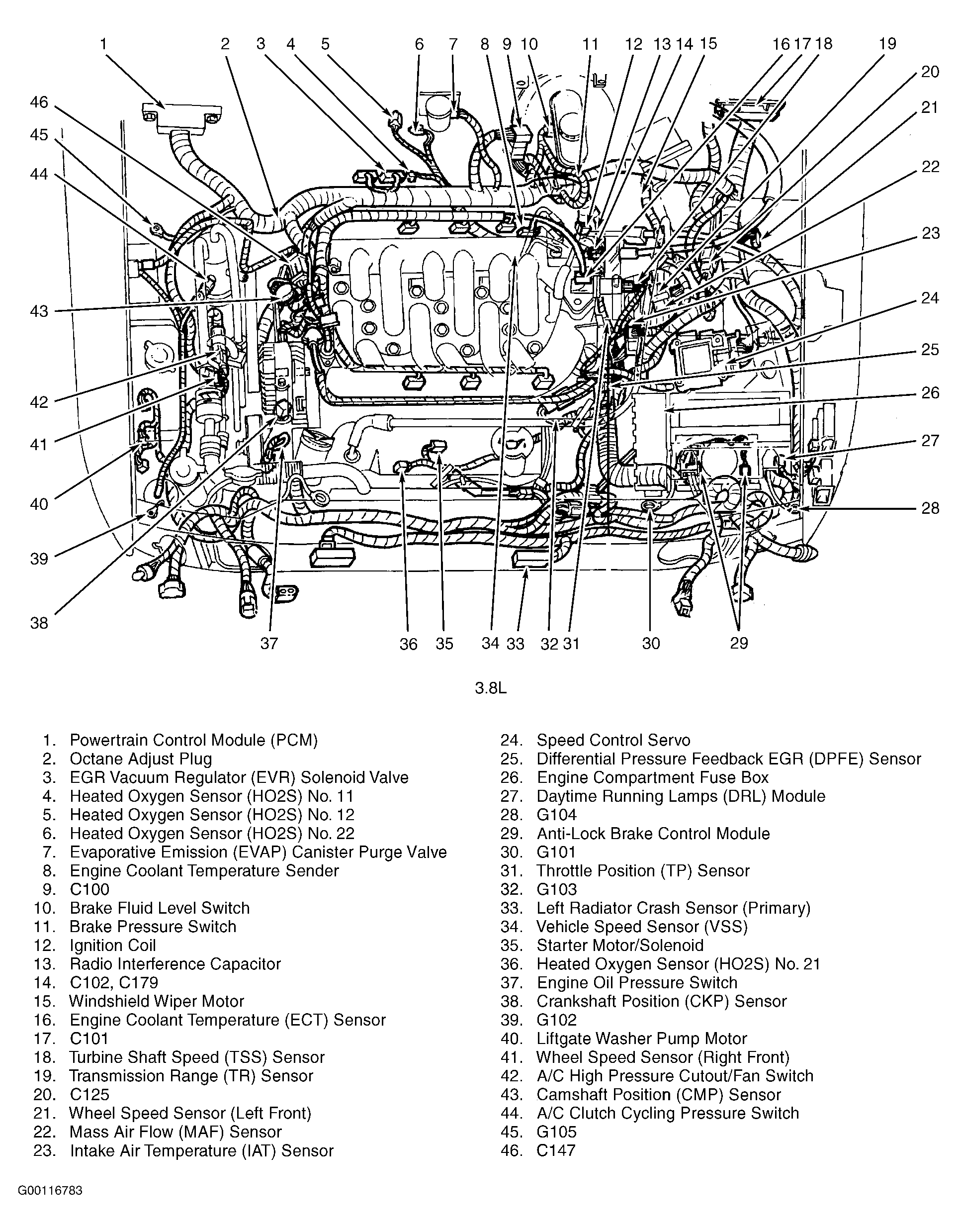

| Anti-Lock Brake Control Module (3.8L) | At left front of engine compartment. See Figure. |
| Auxiliary Warning Module | Center of dash. |
| Daytime Running Lights (DRL) Module (3.0L) | At left front of engine compartment. See Figure. |
| Daytime Running Lights (DRL) Module (3.8L) | At left front of engine compartment. See Figure. |
| Generic Electronic Module (GEM) | Behind dash, left of steering column. |
| Overhead Console Compass Module | On center front under side of roof. |
| Powertrain Control Module (PCM) (3.0L) | Behind right side of dash, through firewall. See Figure. |
| Powertrain Control Module (PCM) (3.8L) | Behind right side of dash, through firewall. See Figure. |
| Pulse Width Dimming Module | Behind center of dash. |
| Remote Anti-Theft Personality (RAP) Module | Behind center of dash. |

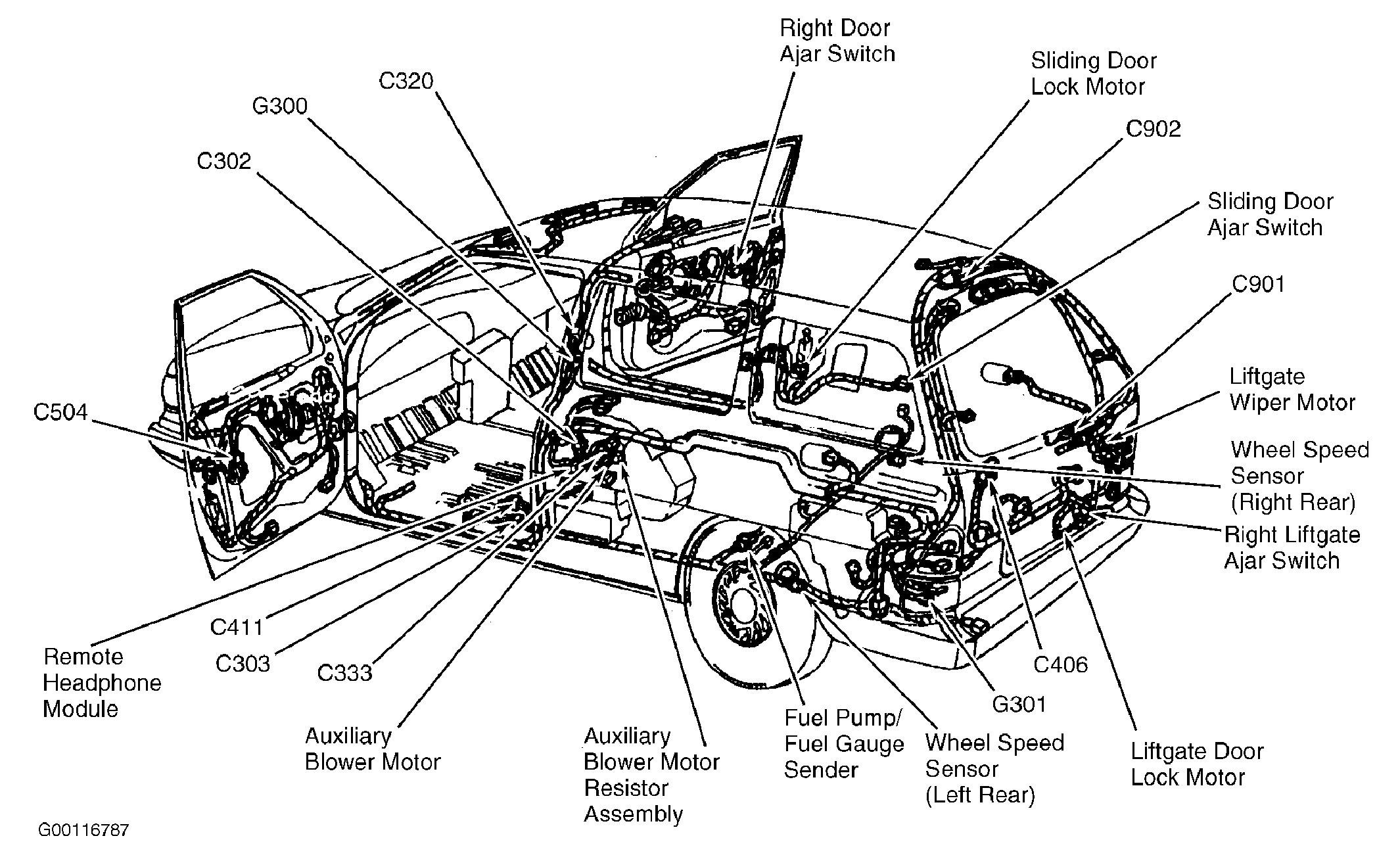

| Remote Headphone Module | Behind panel, left of rear seat. See Figure. |
