Component Locations
WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

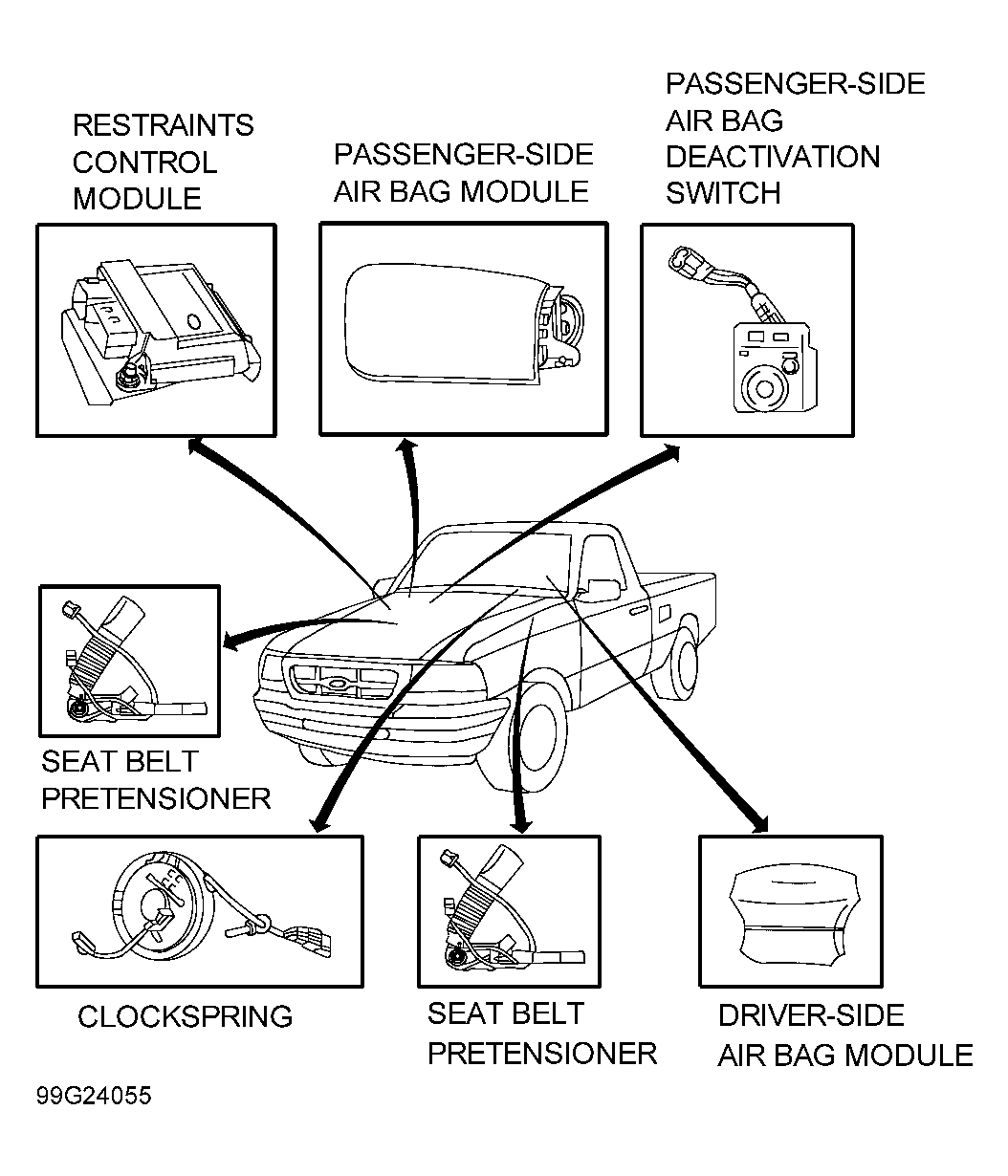

RESTRAINT SYSTEM COMPONENT LOCATIONS
| Component | (1) Location | ||
|---|---|---|---|
| Clockspring | On steering column, behind steering wheel | ||
| Driver-side air bag module | Center of steering wheel | ||
| Passenger-side air bag module | Right side of instrument panel, above glove box | ||
| Passenger-Side Air Bag Deactivate (PAD) switch | Center of instrument panel | ||
| Restraints control module | On tunnel, beneath utility tray | ||
| Seat belt pretensioners | Integrated with front seat belt buckles | ||
|
|||
