Test A: Anti-Lock Brake System Control Module Does Not Respond To Scan Tool

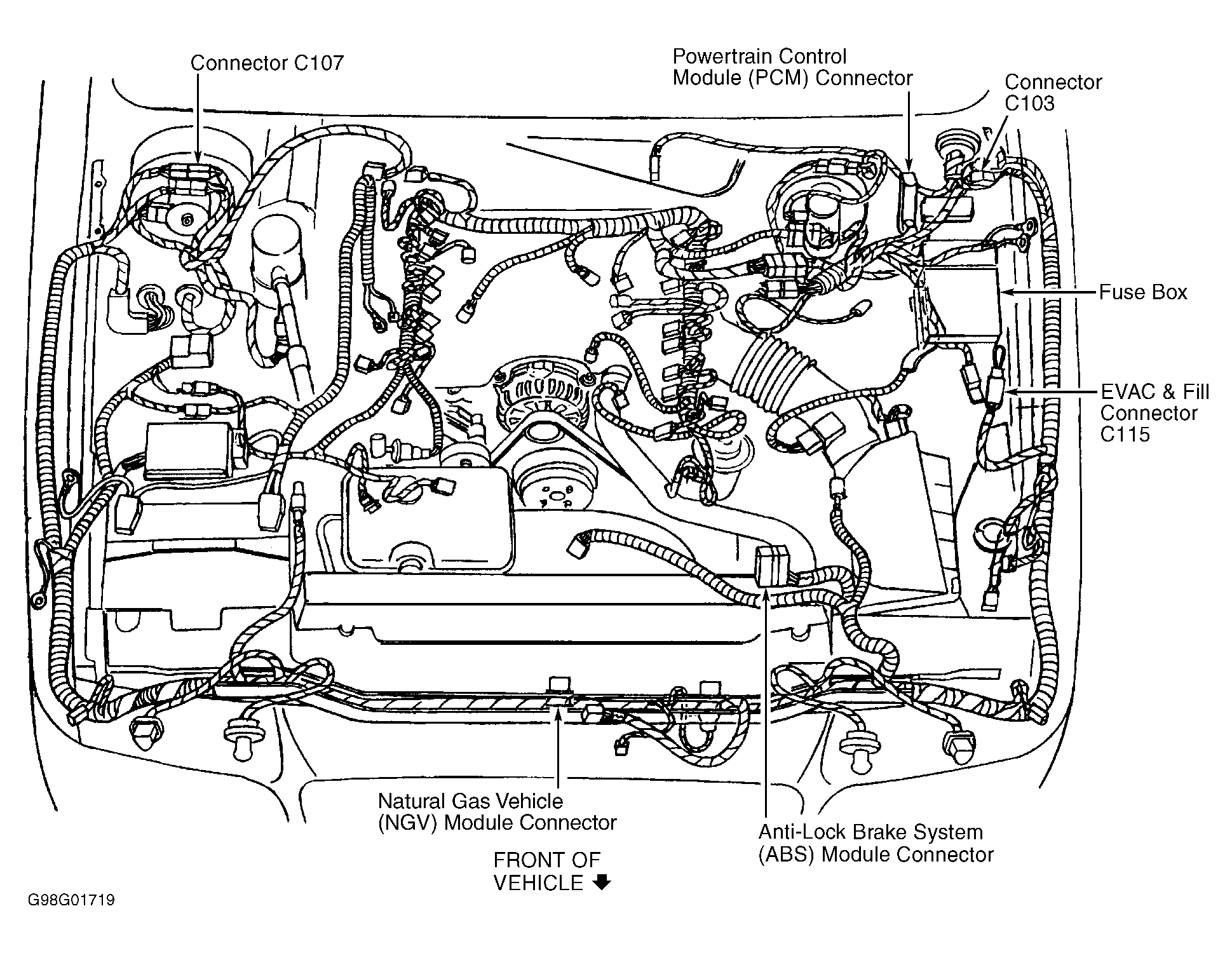

- Turn ignition switch to LOCK position. Disconnect ABS control module harness connector C162. See Fig 1
. Inspect ABS harness connector for loose, damaged or corroded terminals. If problem does not exist, go to next step. If problem exists, repair as necessary and retest system.
- Connect ABS control module harness connector C162. Connect NGS tester to DLC. Turn ignition switch to RUN position. Perform data link diagnostic procedure. See DATA LINK DIAGNOSTIC TEST
under SELF-DIAGNOSTIC SYSTEM. If NGS tester responds with ABS: NO RESPONSE ON CKT914 (BUS +), go to next step. If NGS tester does not respond with ABS: NO RESPONSE ON CKT914 (BUS +), go to step 6
.
- Turn ignition switch to LOCK position. Disconnect NGS tester. Disconnect ABS module harness connector C162. Measure resistance in Tan/Orange wire between terminal No. 20 at ABS control module harness connector C162 and terminal No. 2 at DLC. See Figure
and Fig 2
. If resistance is greater than 5 ohms, go to next step. If resistance is 5 ohms or less, replace ABS control module.
- Disconnect in-line harness connector C107. See Fig 1
. Inspect harness connector for loose, damaged or corroded terminals. If problem does not exist, go to next step. If problem exists, repair as necessary and retest system.
- Measure resistance in Tan/Orange wire between terminal No. 10 at male half of harness connector C107 and terminal No. 2 at DLC. See Figure
and Fig 3
. If resistance is 5 ohms or less, repair open in Tan/Orange wire between harness connector C107 and ABS control module. If resistance is greater than 5 ohms, repair open in Tan/Orange wire between harness connector C107 and DLC.
- Turn ignition switch to LOCK position. Disconnect NGS tester. Disconnect ABS module harness connector C162. Measure resistance in Pink/Light Blue wire between terminal No. 19 at ABS module harness connector C162 and terminal No. 10 at DLC. See Figure
and Fig 2
. If resistance is greater than 5 ohms, go to next step. If resistance is 5 ohms or less, replace ABS control module.
- Disconnect in-line harness connector C107. See Fig 1
. Inspect harness connector for loose, damaged or corroded terminals. If problem does not exist, go to next step. If problem exists, repair as necessary and retest system.
- Measure resistance in Pink/Light Blue wire between terminal No. 7 at male half of harness connector C107 and terminal No. 10 at DLC. See Figure
and Fig 3
. If resistance is 5 ohms or less, repair open in Pink/Light Blue wire between harness connector C107 and ABS control module. If resistance is greater than 5 ohms, repair open in Pink/Light Blue wire between harness connector C107 and DLC.
