Circuit Protection Devices
WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

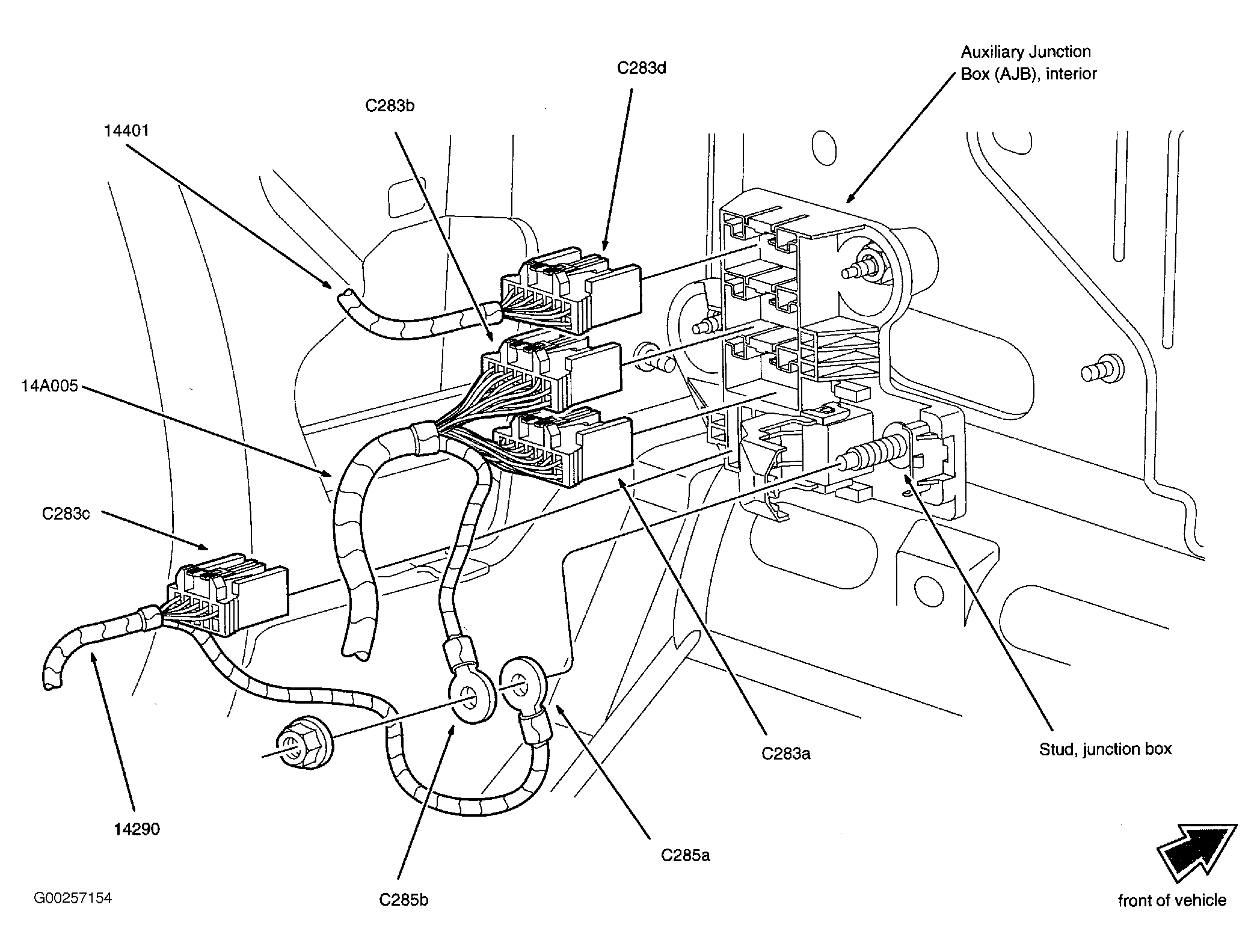

| Auxiliary Junction Box (AJB) (Interior) | Under left side of dash. See Figure . |
| Auxiliary Junction Box (AJB) (Underhood) | In right front of engine compartment. See Figure . |

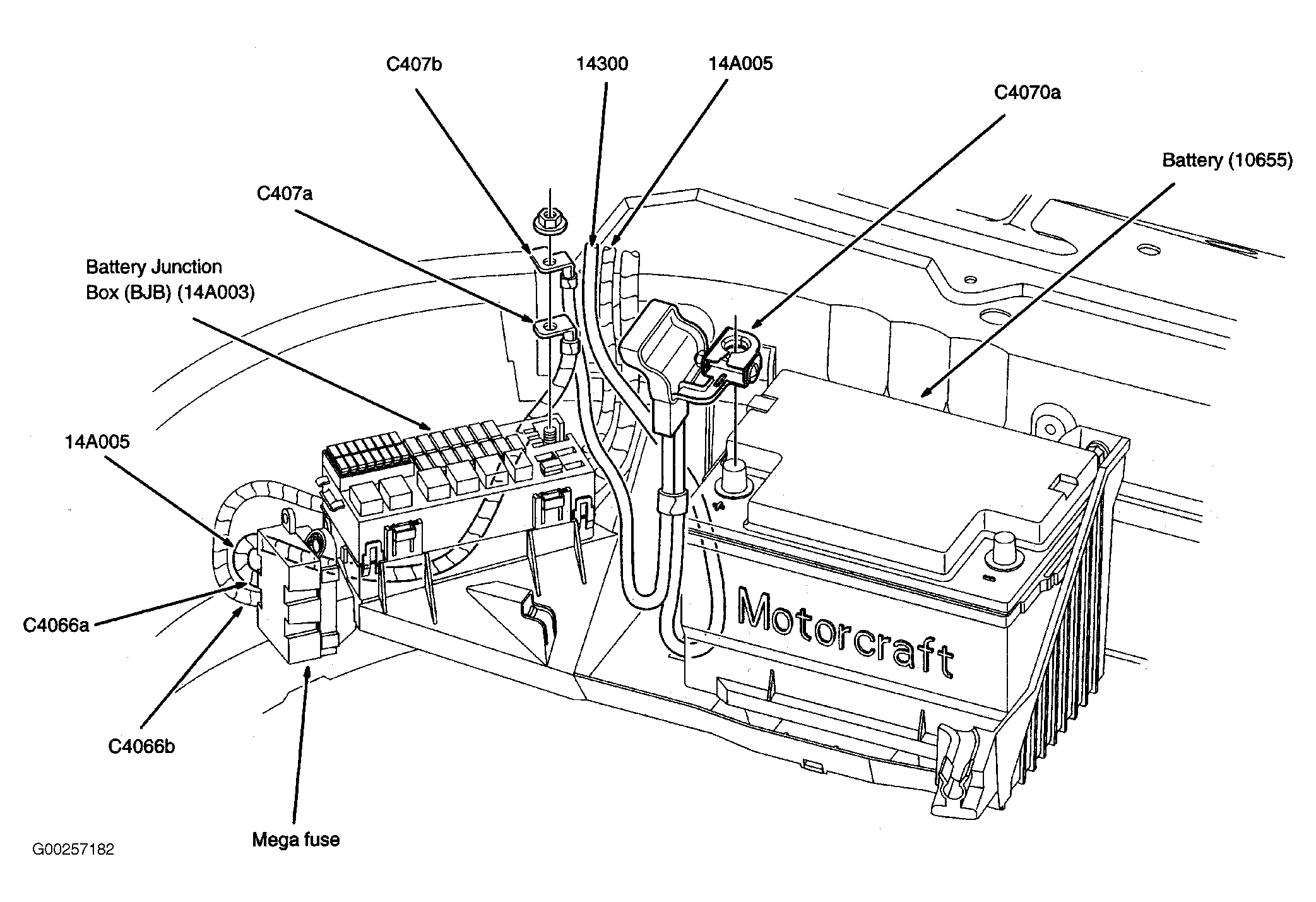

| Battery Junction Box (BJB) | In luggage compartment, near battery. See Figure . |

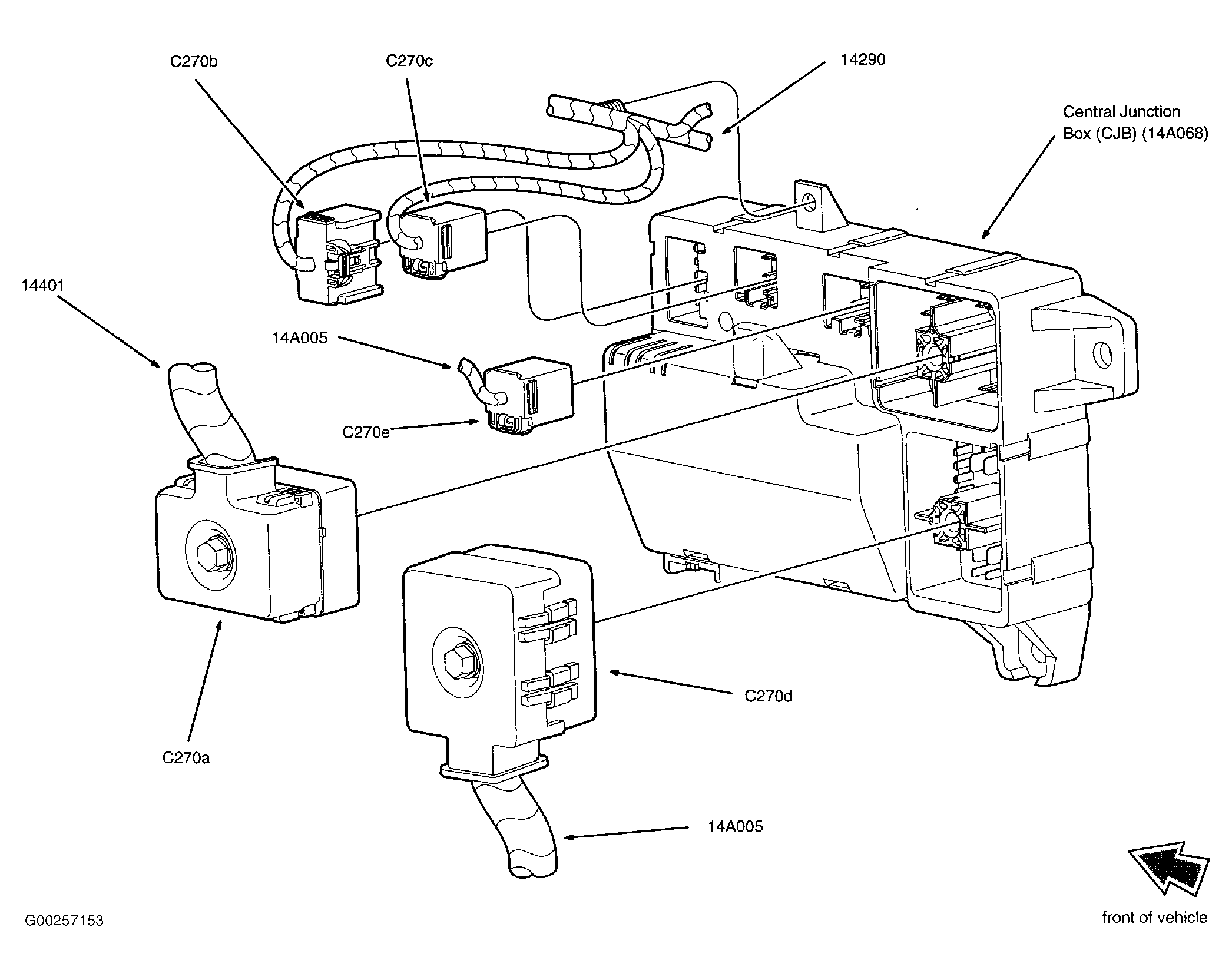

| Central Junction Box (CJB) | Behind right kick panel. See Figure . |

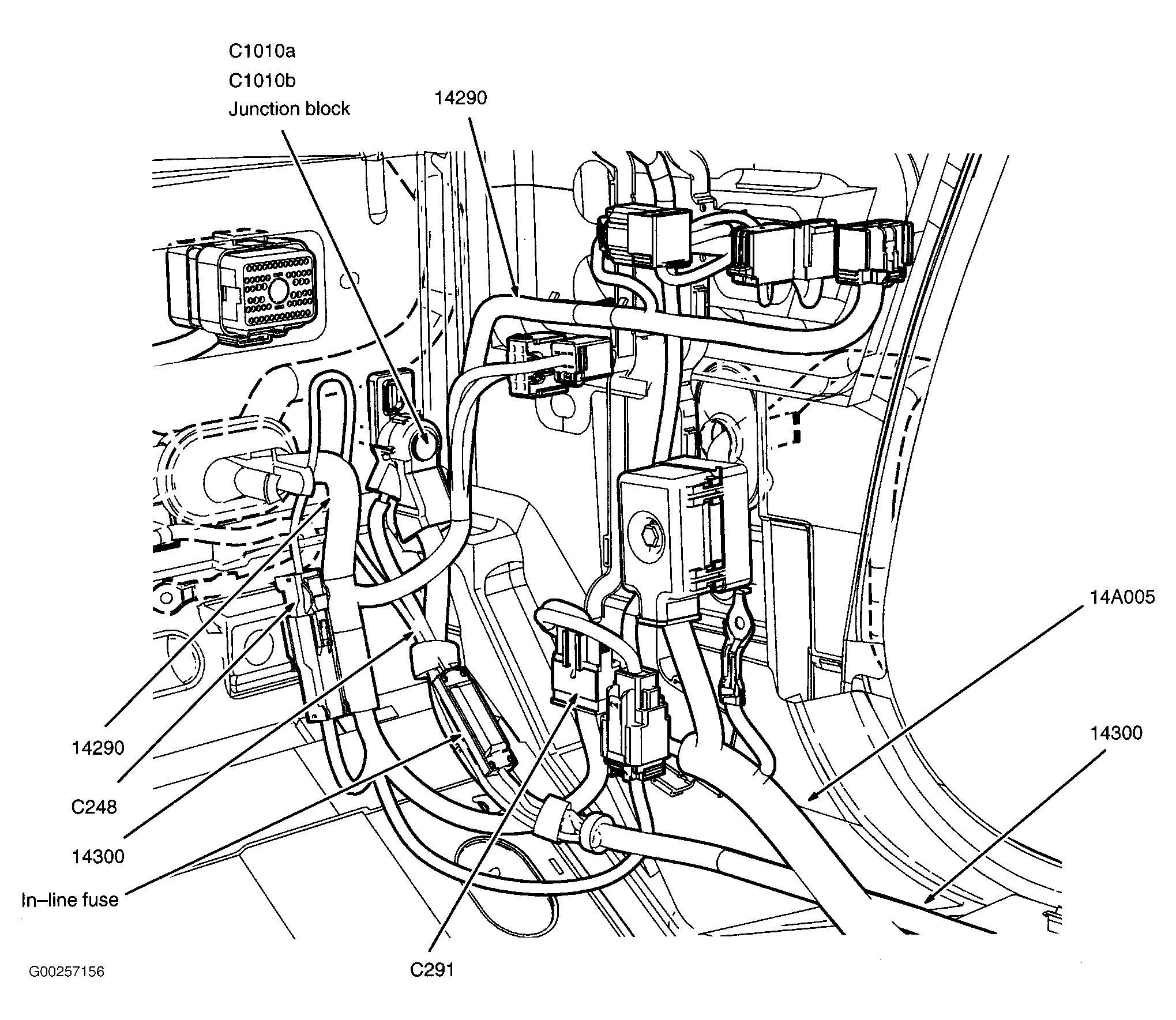

| In-Line Fuse | At right kick panel. See Figure . |

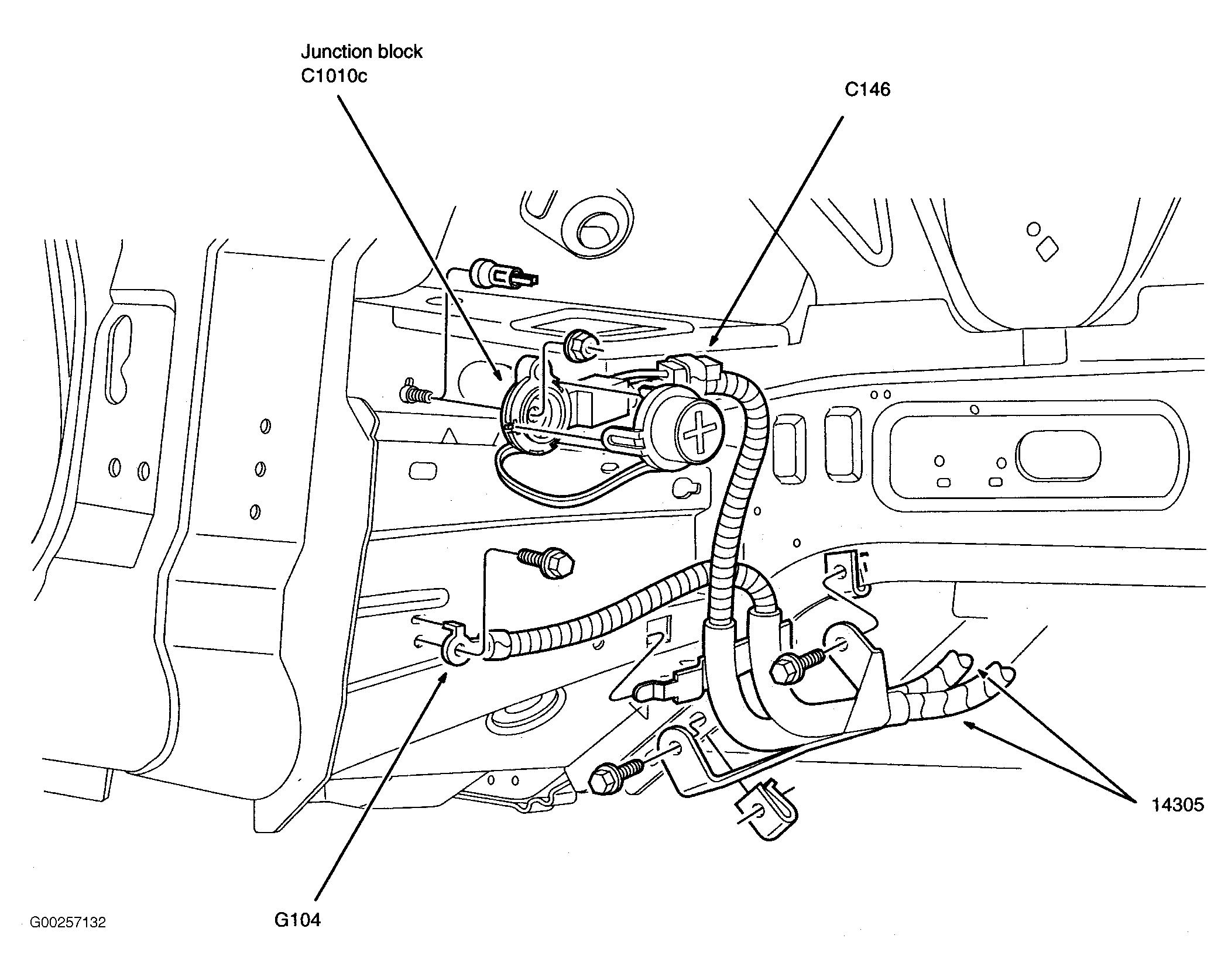

| Junction Block | On right front fender. See Figure . |
| Mega Fuse | In luggage compartment, near battery junction box. See Figure . |
