Test D: Dynamic Pull Occurs/Speed Control Inoperative (Flash Code 1)

NOTE: After completing any repairs, perform self-diagnostics. See SELF-DIAGNOSTIC SYSTEM .

Test drive vehicle and observe speedometer operation. If speedometer operates properly, go to next step. If speedometer does not operate properly, repair speedometer as necessary. See ANALOG INSTRUMENT PANELS - SABLE & TAURUS article.
Turn ignition off. Disconnect speed control servo connector C122 and Powertrain Control Module (PCM) connector C175. Measure resistance between speed control servo connector C122 terminal No. 3 (Gray/Black wire) and PCM connector C175 terminal No. 68 (Gray/Black wire). See Figure and Fig 1 . If resistance is 5 ohms or less, replace speed control servo. If resistance is greater than 5 ohms, repair open in Gray/Black wire. Retest system operation.

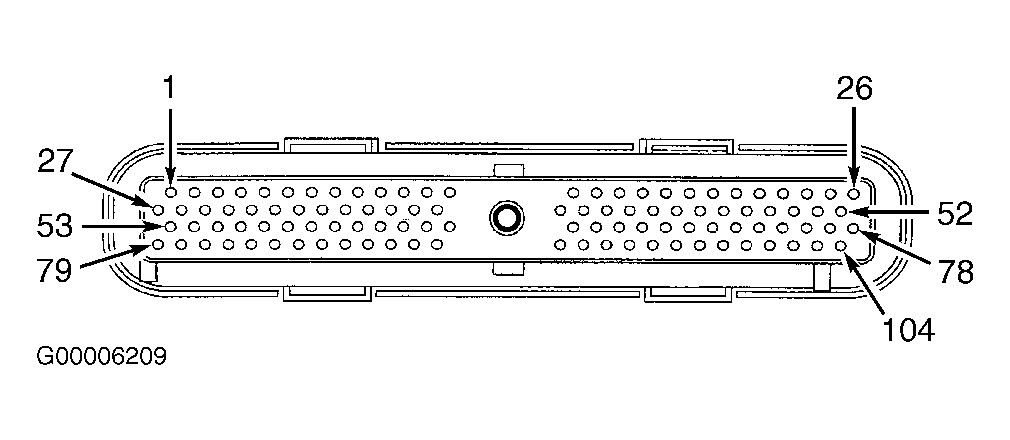

Fig 1: Identifying Powertrain Control Module (PCM) Connector C175 Terminals
Courtesy of FORD MOTOR CO.
