Occupant Classification Sensor (OCS) System: Installation

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse removal procedure. Tighten nuts and bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system. See ACTIVATING SYSTEM under DISABLING & ACTIVATING AIR BAG SYSTEM. Zero OCS. See ZERO OCCUPANT CLASSIFICATION SENSOR (OCS) under DIAGNOSTICS.

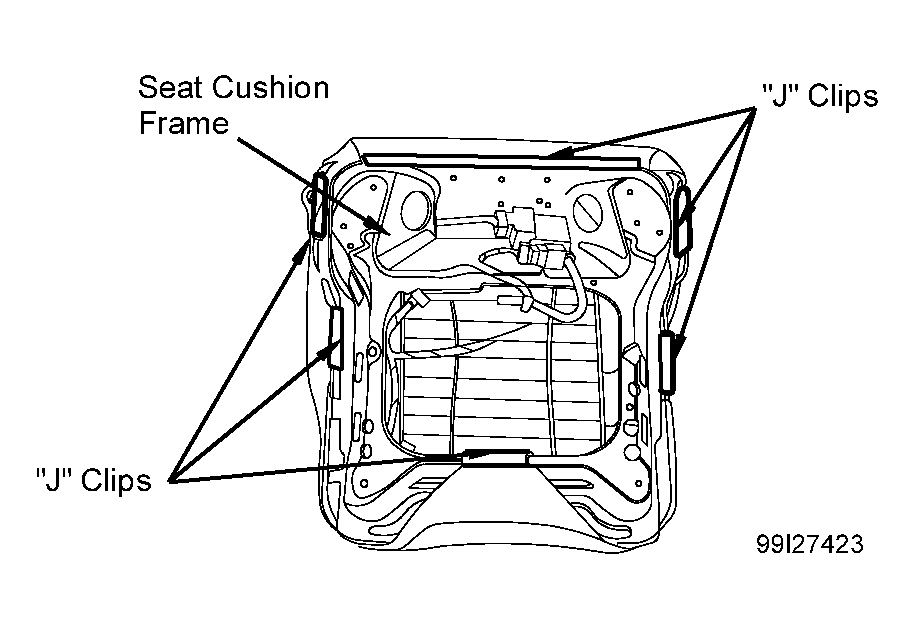

Fig 1: Locating Seat Cushion Trim "J" Clips

Courtesy of FORD MOTOR CO.

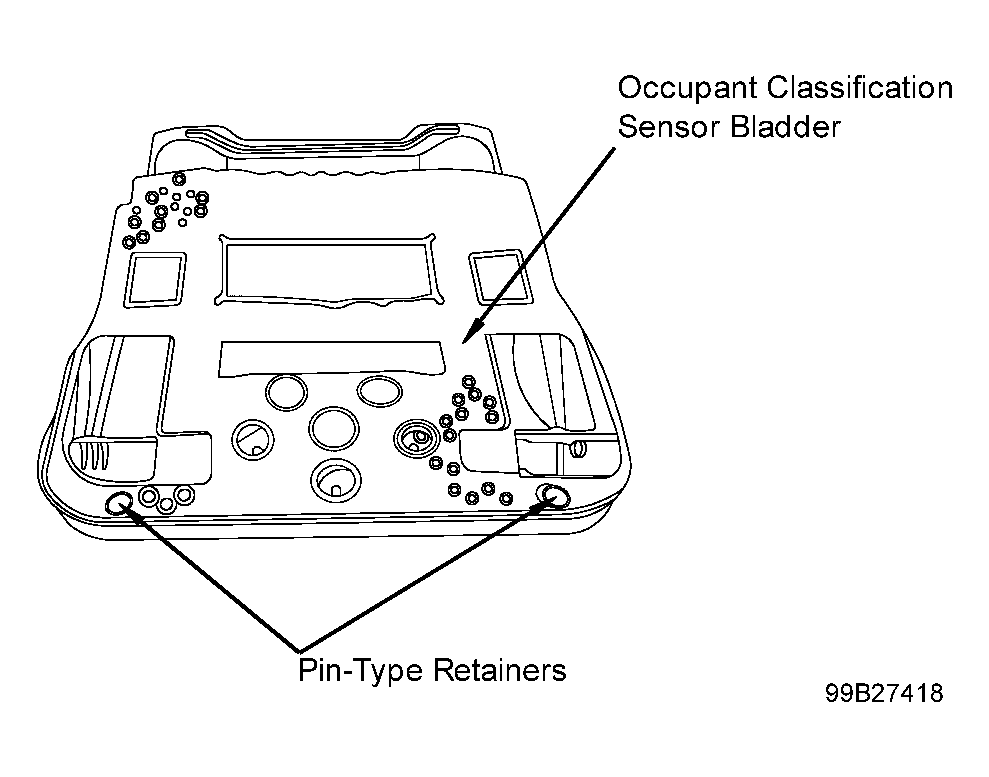

Fig 2: Locating OCS Bladder Pin-type Retainers

Courtesy of FORD MOTOR CO.

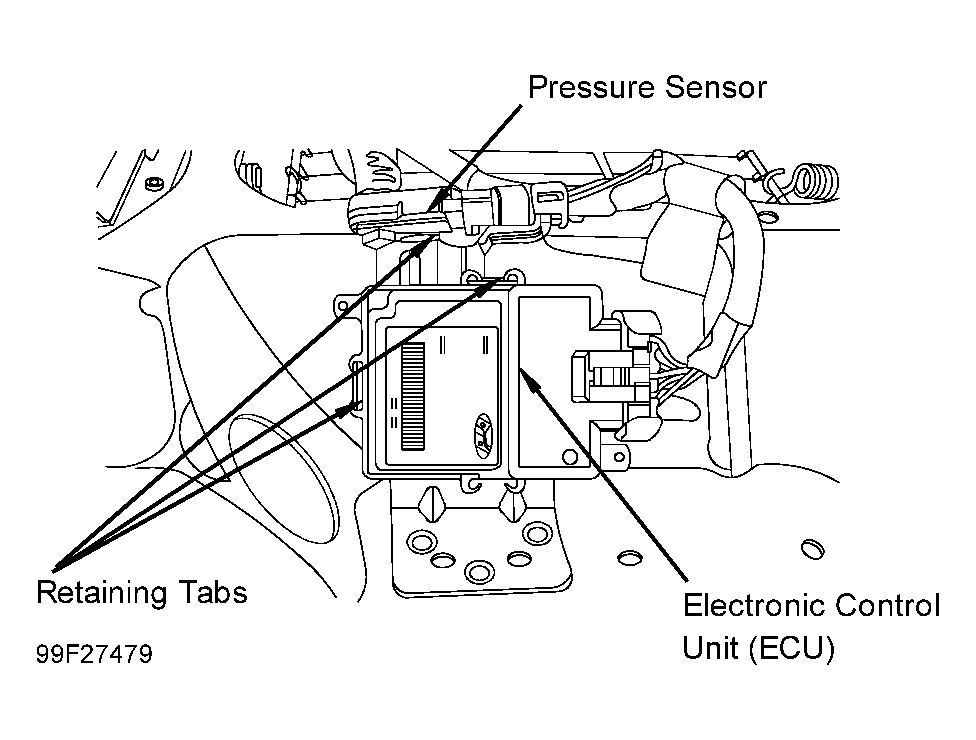

Fig 3: Identifying OCS Electronic Control Unit (ECU) & Pressure Sensor

Courtesy of FORD MOTOR CO.

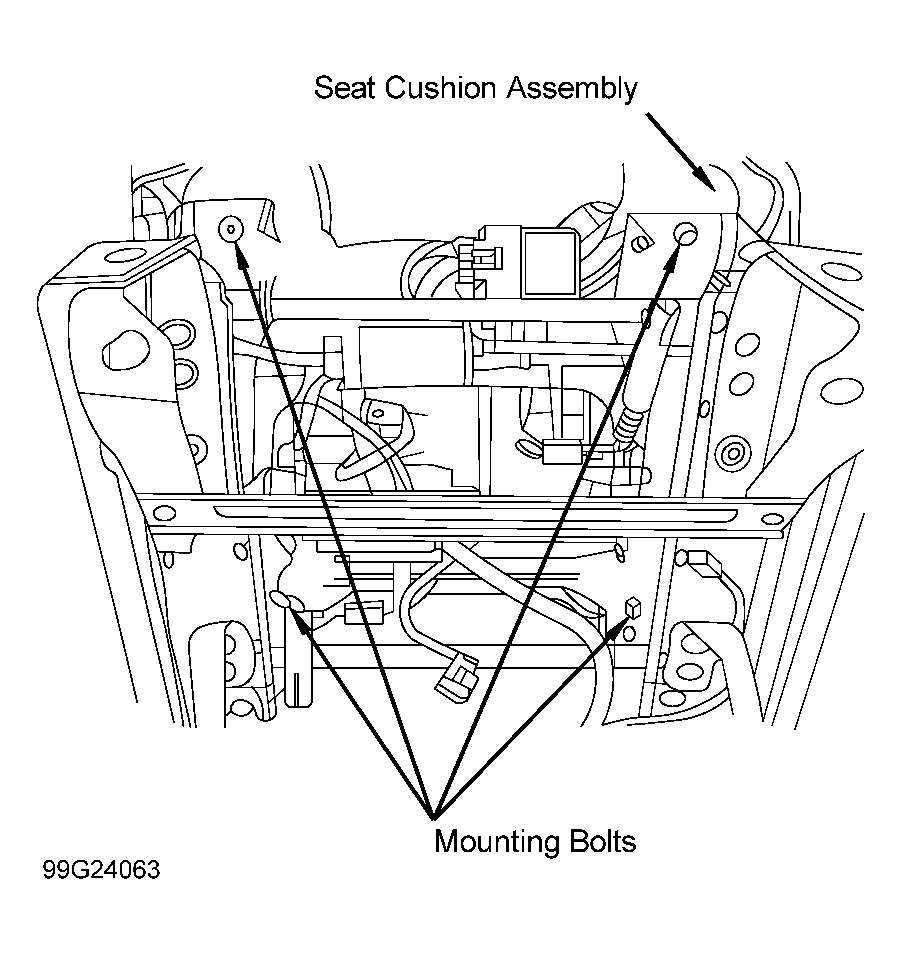

Fig 4: Identifying Seat Cushion Assembly Mounting Bolts

Courtesy of FORD MOTOR CO.
