RESTRAINT SYSTEM COMPONENT LOCATIONS
| Component |
Location |
| Clockspring |
On steering column, behind steering wheel |
| Dual-stage driver-side air bag module |
Center of steering wheel |
| Dual-stage passenger-side air bag module |
Right side of instrument panel, above glove box |
| Front crash sensor |
Under hood latch bracket |
| Front side crash sensors |
Under front seats, beneath carpet |
| Occupant Classification Sensor (OCS) |
Under left front seat cushion |
| Restraints control module |
On tunnel, under center console |
| Rear side crash sensors |
Base of right and left C-pillars |
| Seat belt buckle switches |
Integrated with front seat belt buckles |
| Seat belt pretensioners |
Integrated with front seat belt buckles |
| Seat belt tension sensor |
Integrated with right front seat belt |
| Seat track position sensor |
On left front seat track frame |
| Side air bag modules |
In front seat backs |
| Side air bag bridge resistors |
On side air bag harness connectors |
| Side curtain air bag modules |
Behind right and left sides of headliner, between A-pillar and C-pillar |
| Side curtain air bag bridge resistors |
On side curtain air bag harness connectors |

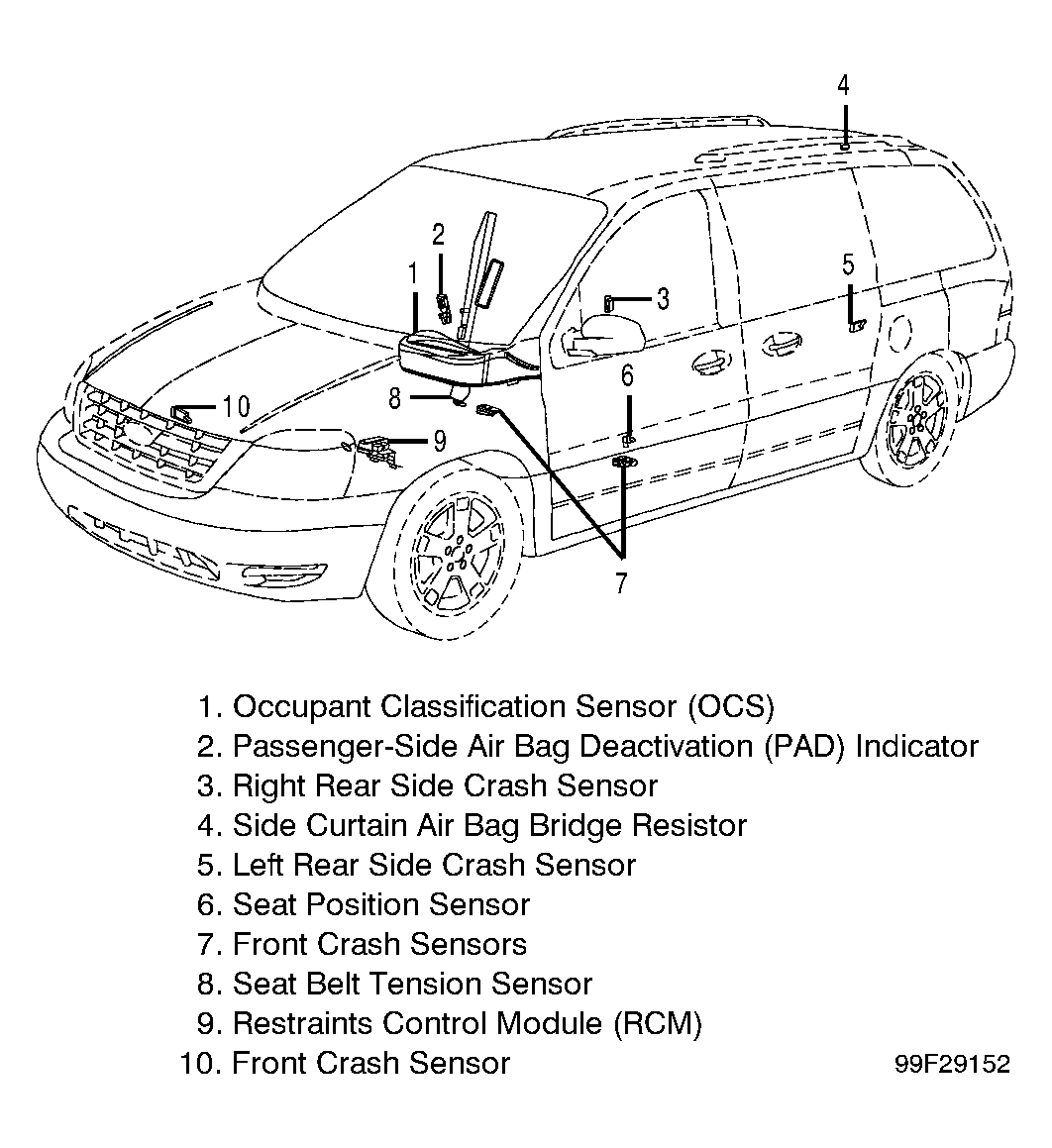

Courtesy of FORD MOTOR CO.

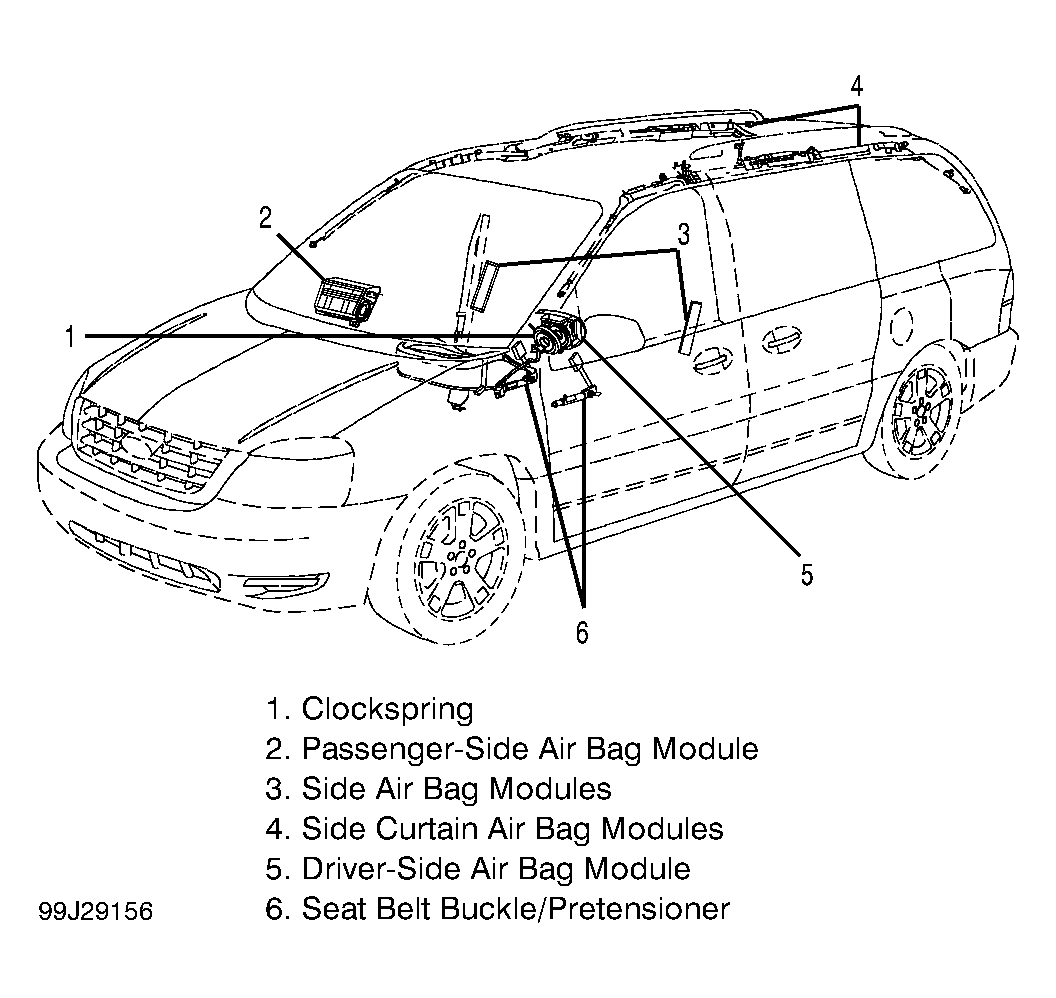

Courtesy of FORD MOTOR CO.
