Component Locations
WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

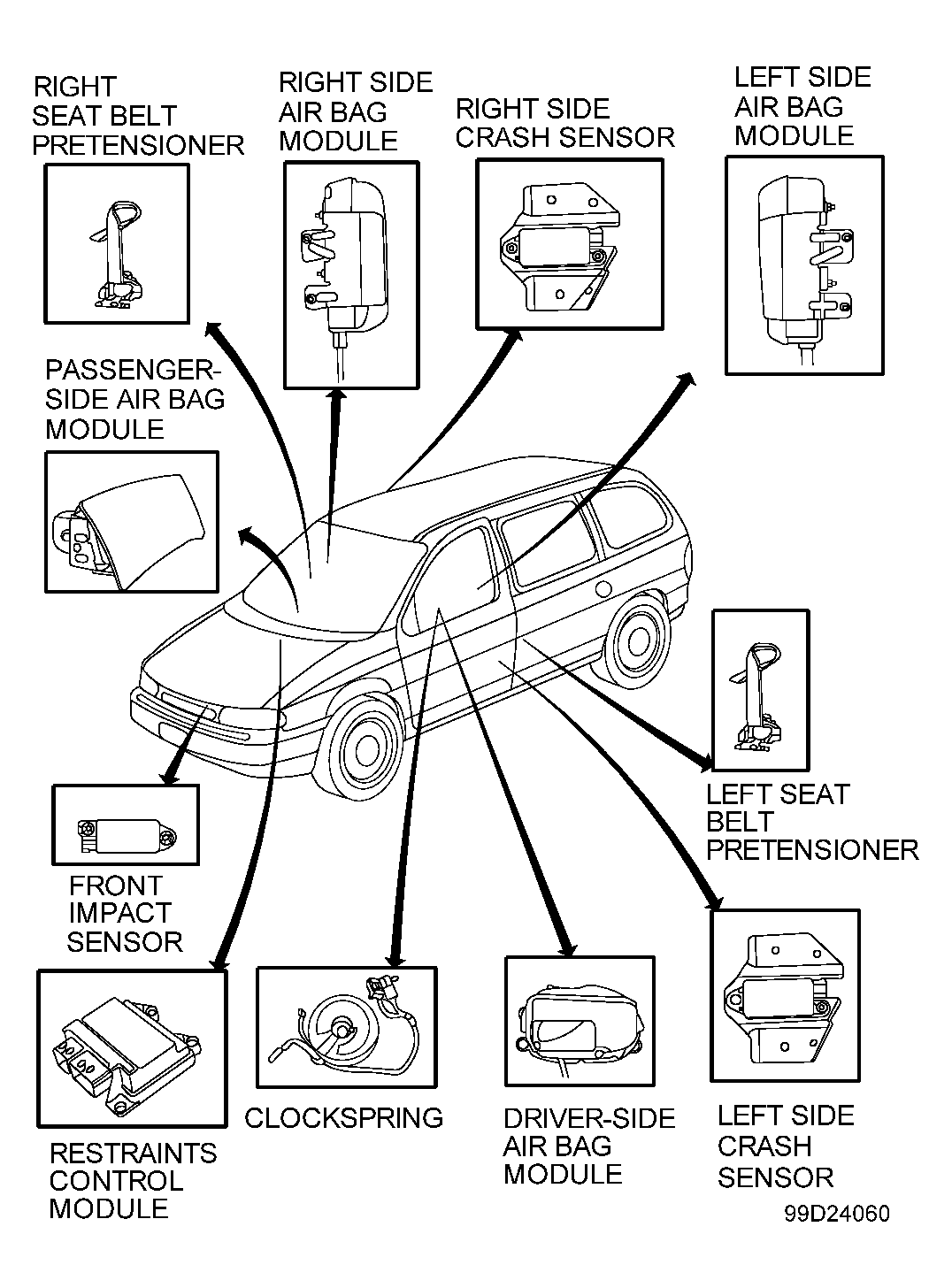

RESTRAINT SYSTEM COMPONENT LOCATIONS
| Component |
Location |
| Clockspring |
On steering column, behind steering wheel |
| Dual-stage driver-side air bag module |
Center of steering wheel |
| Dual-stage passenger-side air bag module |
Right side of instrument panel, above glove box |
| Front impact crash sensor |
Front center of vehicle, behind front grille |
| Occupant classification sensor |
Under right front seat cushion |
| Restraints Control Module (RCM) |
Center tunnel, behind utility compartment at lower center of instrument panel |
| Seat belt pretensioners |
Integrated with seat belt retractor assembly |
| Seat belt switch |
Integrated with seat belt buckle assembly |
| Seat track position sensor |
Under driver front seat, on outboard side of seat track |
| Side air bag crash sensors |
On floor, beneath carpet, under front seats |
| Side air bag modules |
Behind outboard bolster of front seat backs |
Courtesy of FORD MOTOR CO.
