Removal & Installation

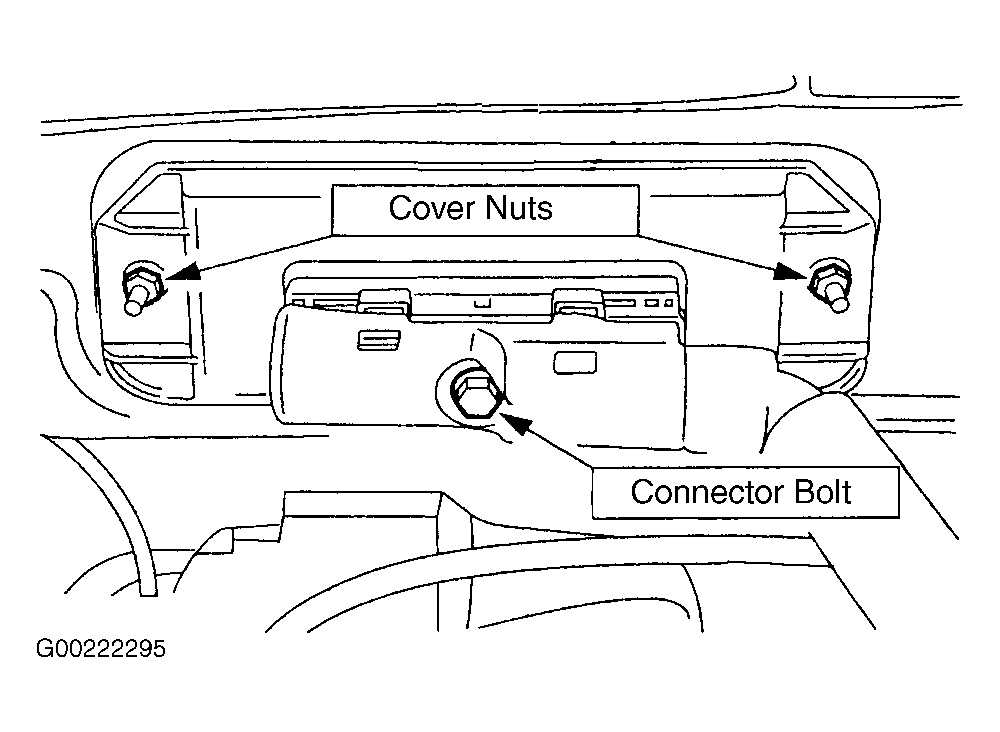

Disconnect negative battery cable. Loosen PCM connector retaining bolt, located in right rear of engine compartment on cowl. See Fig 1. Remove PCM cover and PCM. To install, reverse removal procedure. Tighten PCM cover bolts and connector bolt to specification. See TORQUE SPECIFICATIONS .
