Fuel Line Disconnect Fittings: Notes

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Fuel system is under pressure. Use care when servicing any fuel system components.

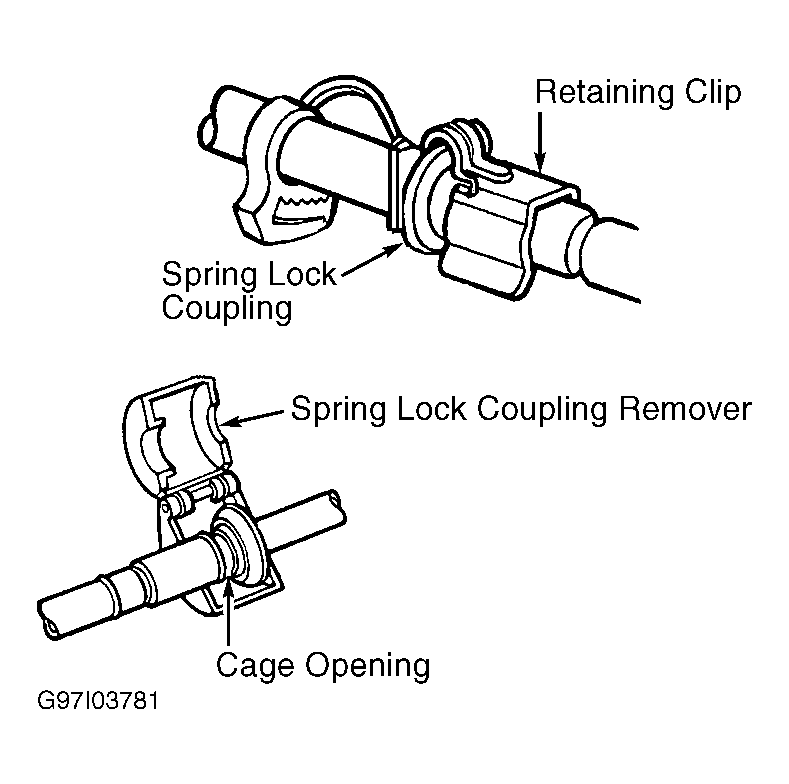

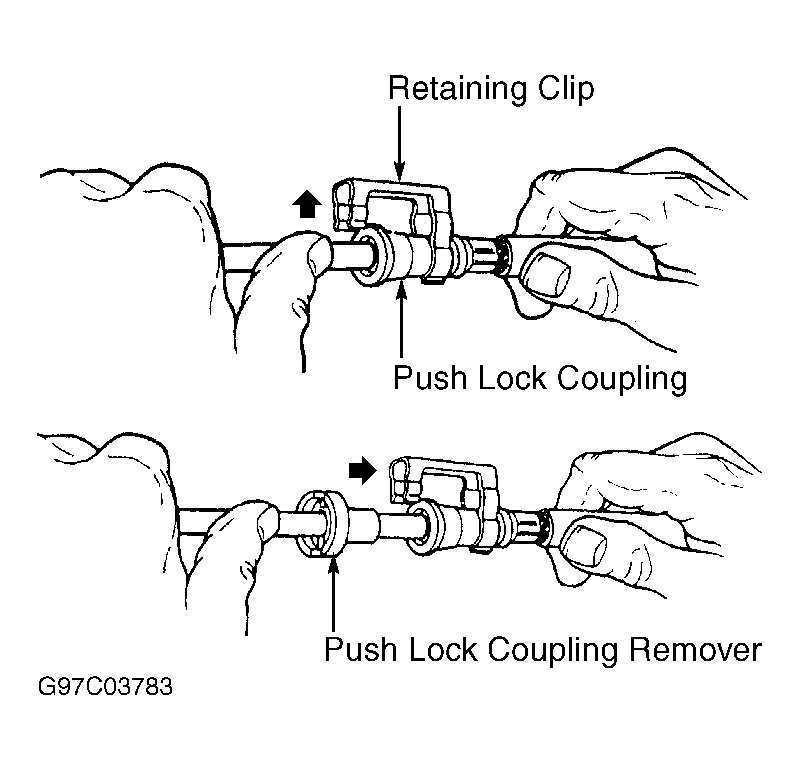

NOTE: Fuel lines may contain spring lock coupling or a push lock coupling. See Figure and Figure . Determine type of disconnect fitting used and use proper procedure for proper disconnect fitting.
