High-Pressure Oil Pump: Notes

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: High-pressure oil pump is used in high pressure oil system which supplies oil pressure for fuel injector operation. See Fig 1.

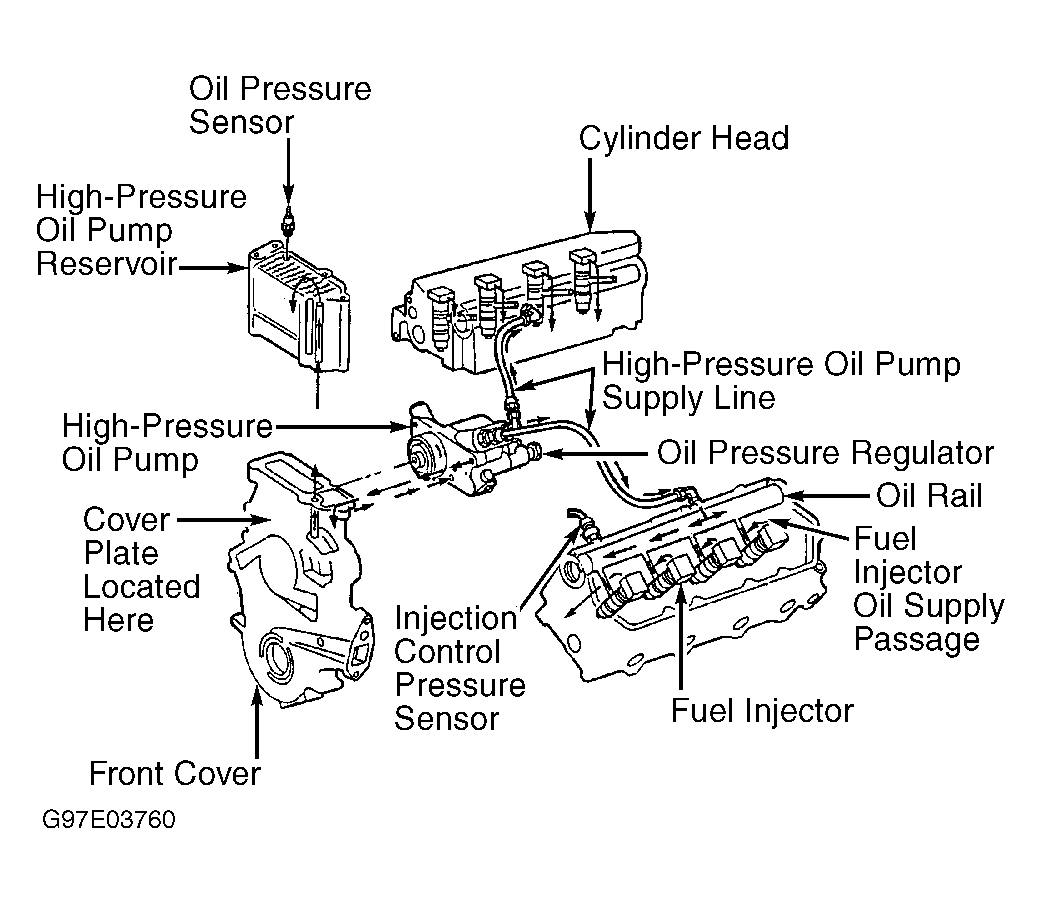

Fig 1: High Pressure Oiling System
G97E03760Courtesy of FORD MOTOR CO.
