Steering Wheel Rotation Sensor

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the components in the order indicated in Fig 1.

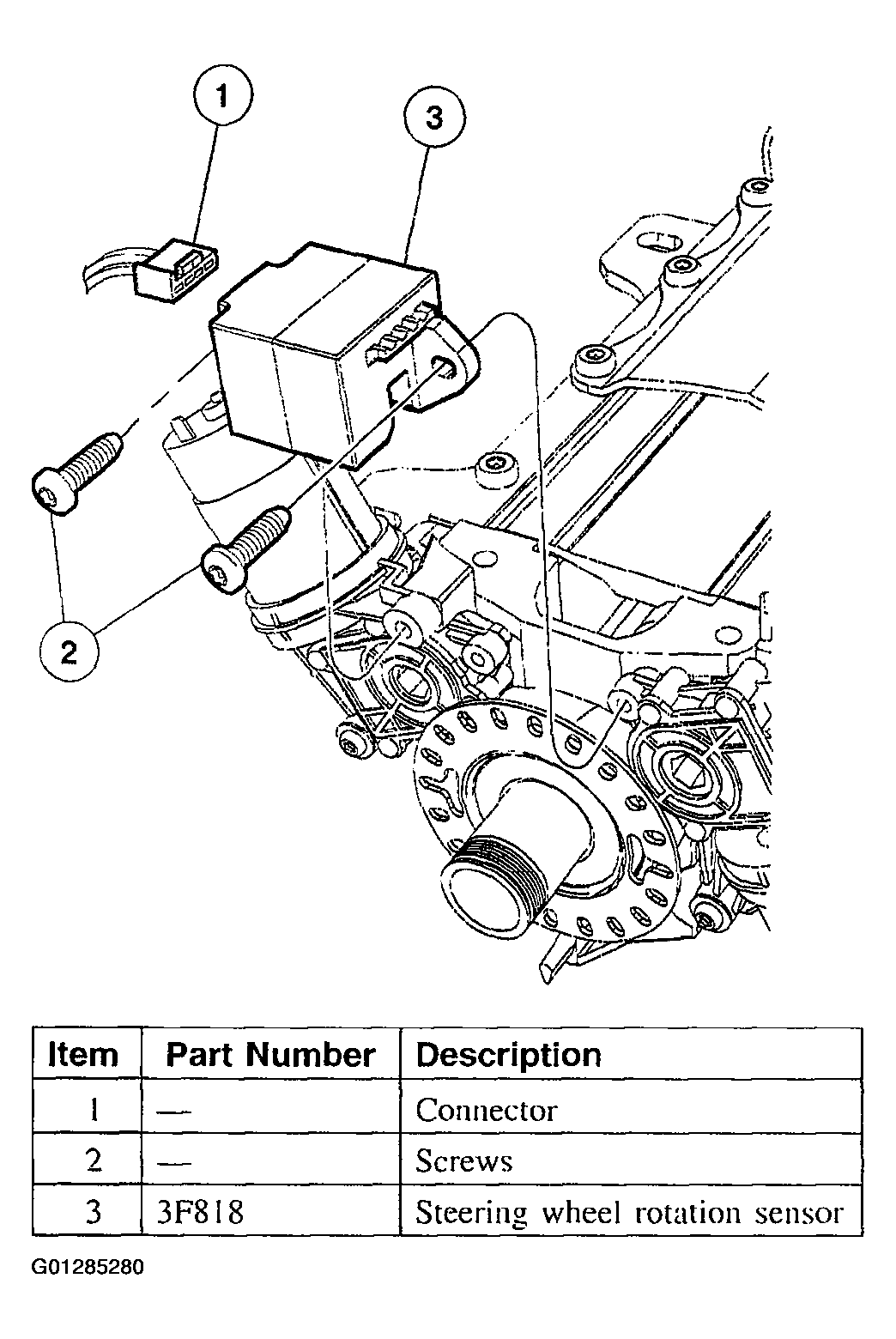

Fig 1: Identifying Removing Sequence Of Steering Wheel Rotation Sensor
Courtesy of FORD MOTOR CO.
