Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | Left front of engine compartment, below battery. See Figure . |
| Brake Shift Interlock | Near bottom of steering column.Figure . |

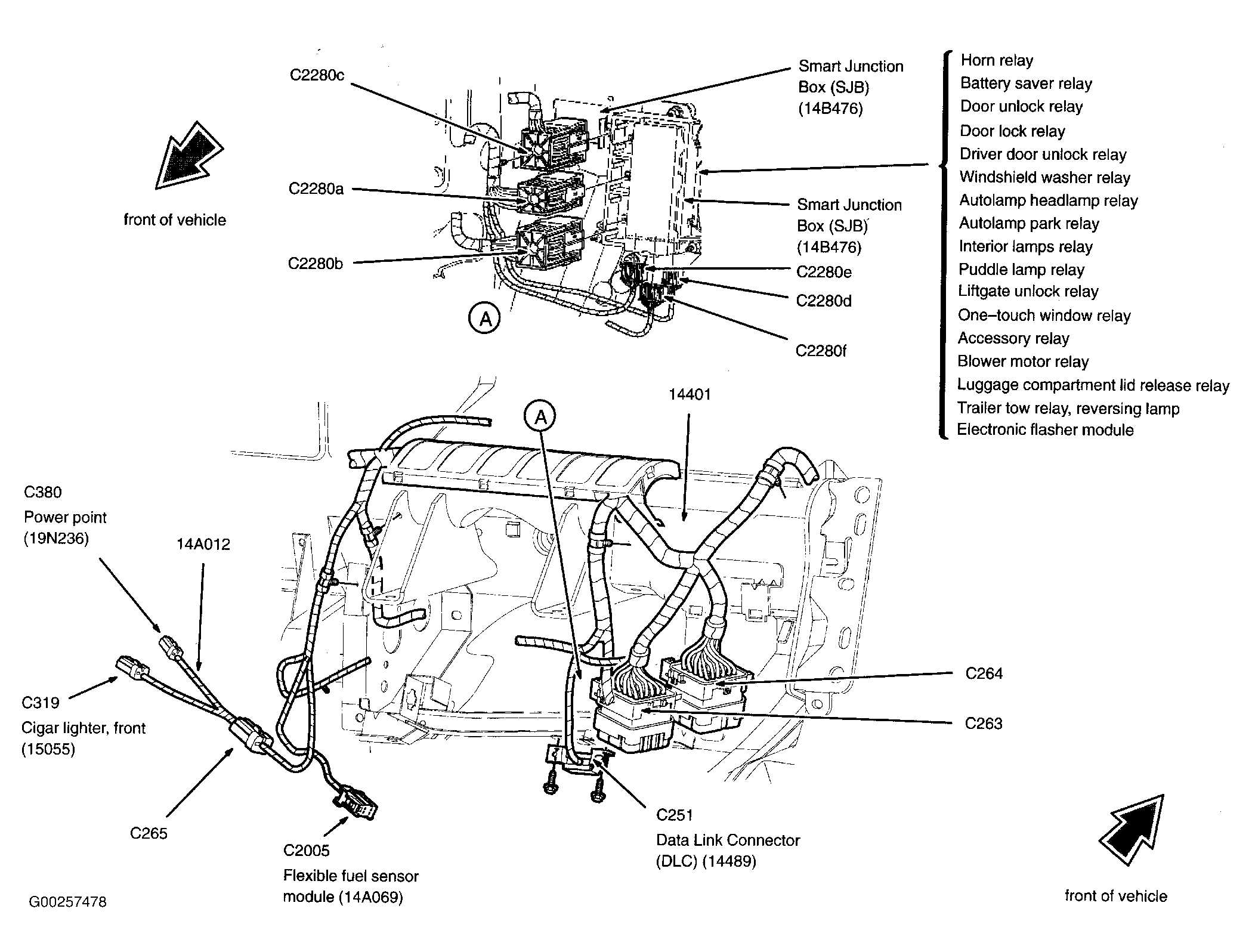

| Flexible Fuel Sensor Module | Behind center of dash, near instrument cluster. See Figure . |

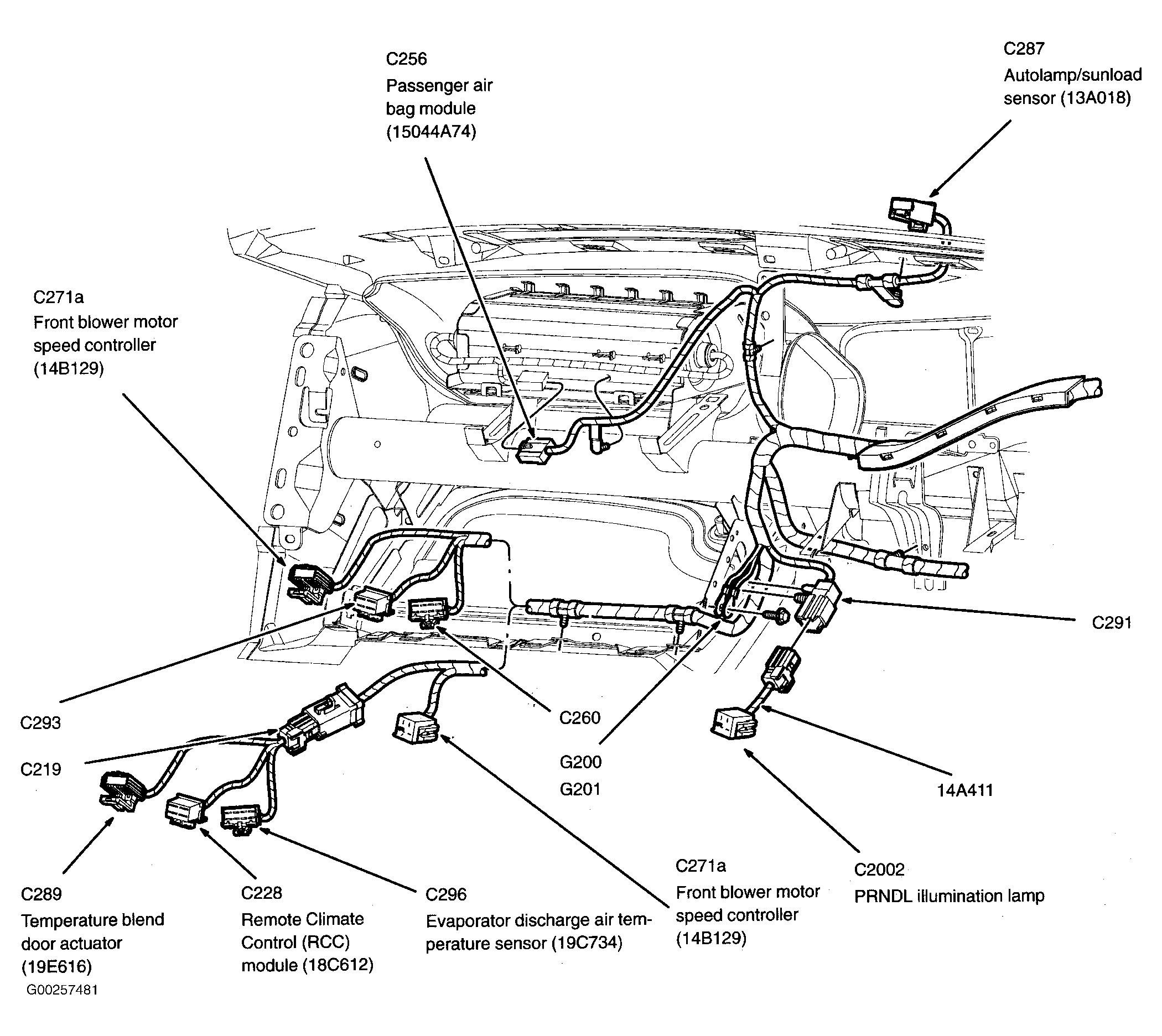

| Front Blower Motor Speed Controller | Behind center of dash, near HVAC unit. See Figure . |

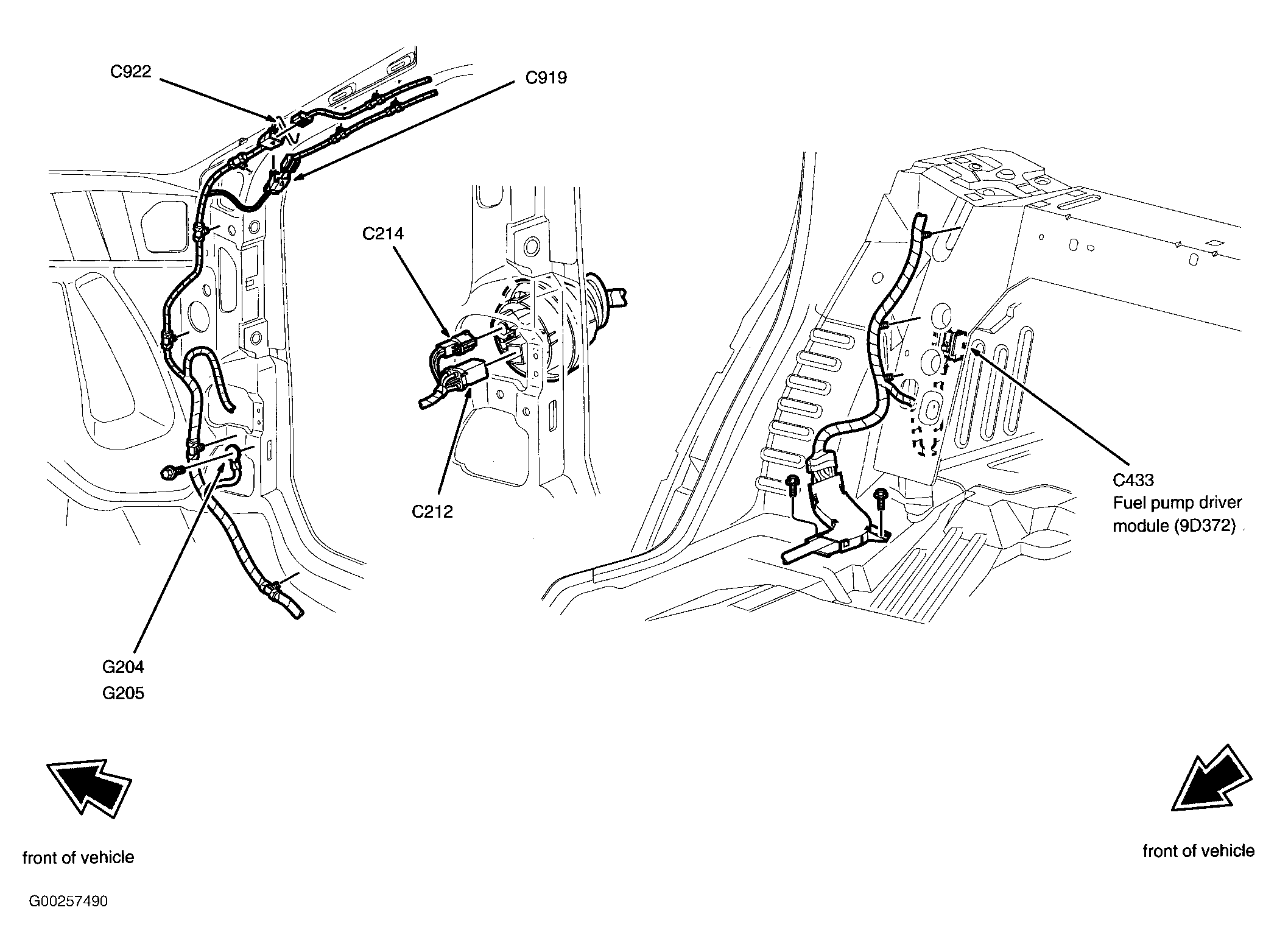

| Fuel Pump Driver Module (Sedan) | Behind right side luggage compartment trim panel. See Figure . |

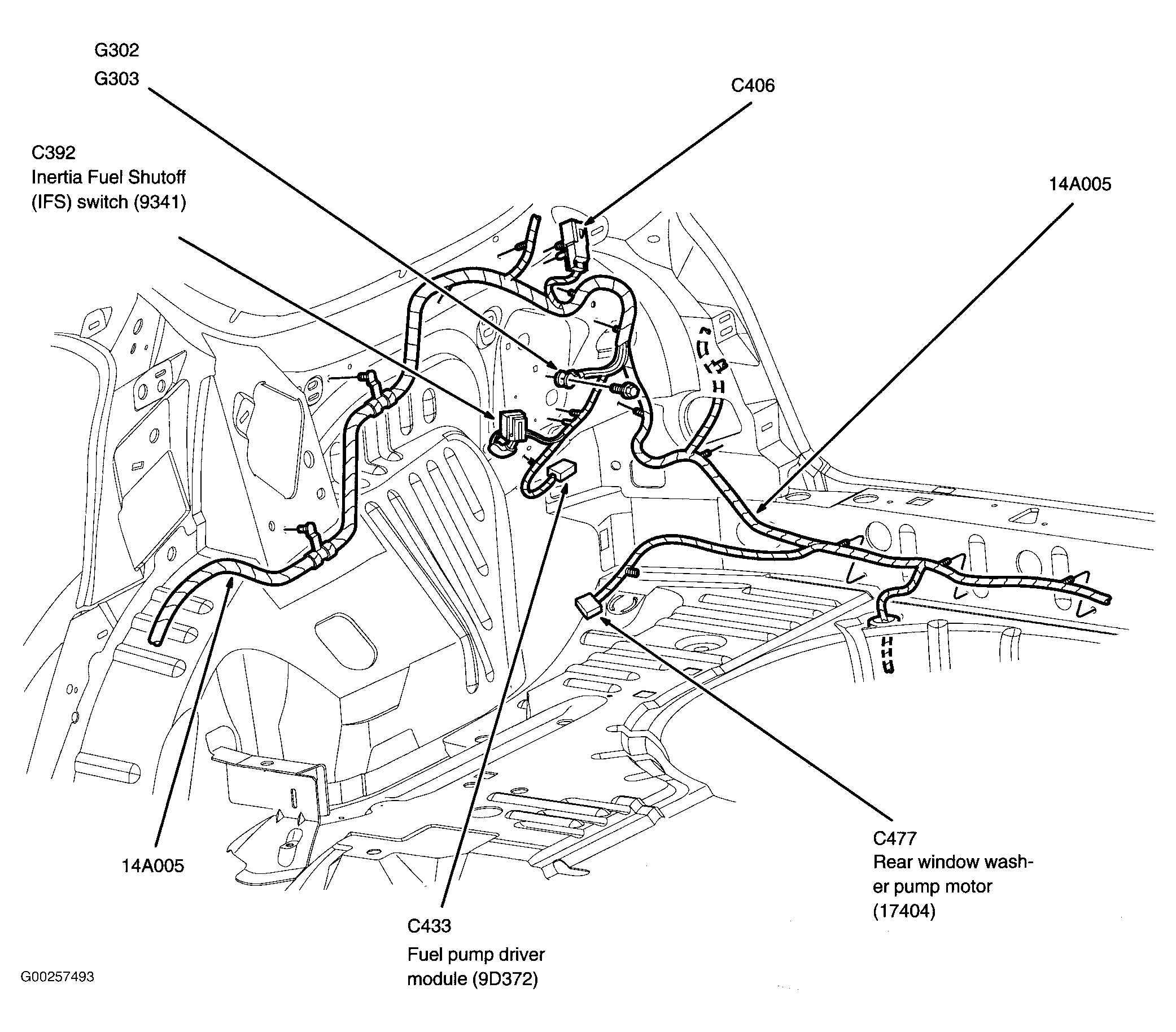

| Fuel Pump Driver Module (Wagon) | Behind right side luggage compartment trim panel. See Figure . |

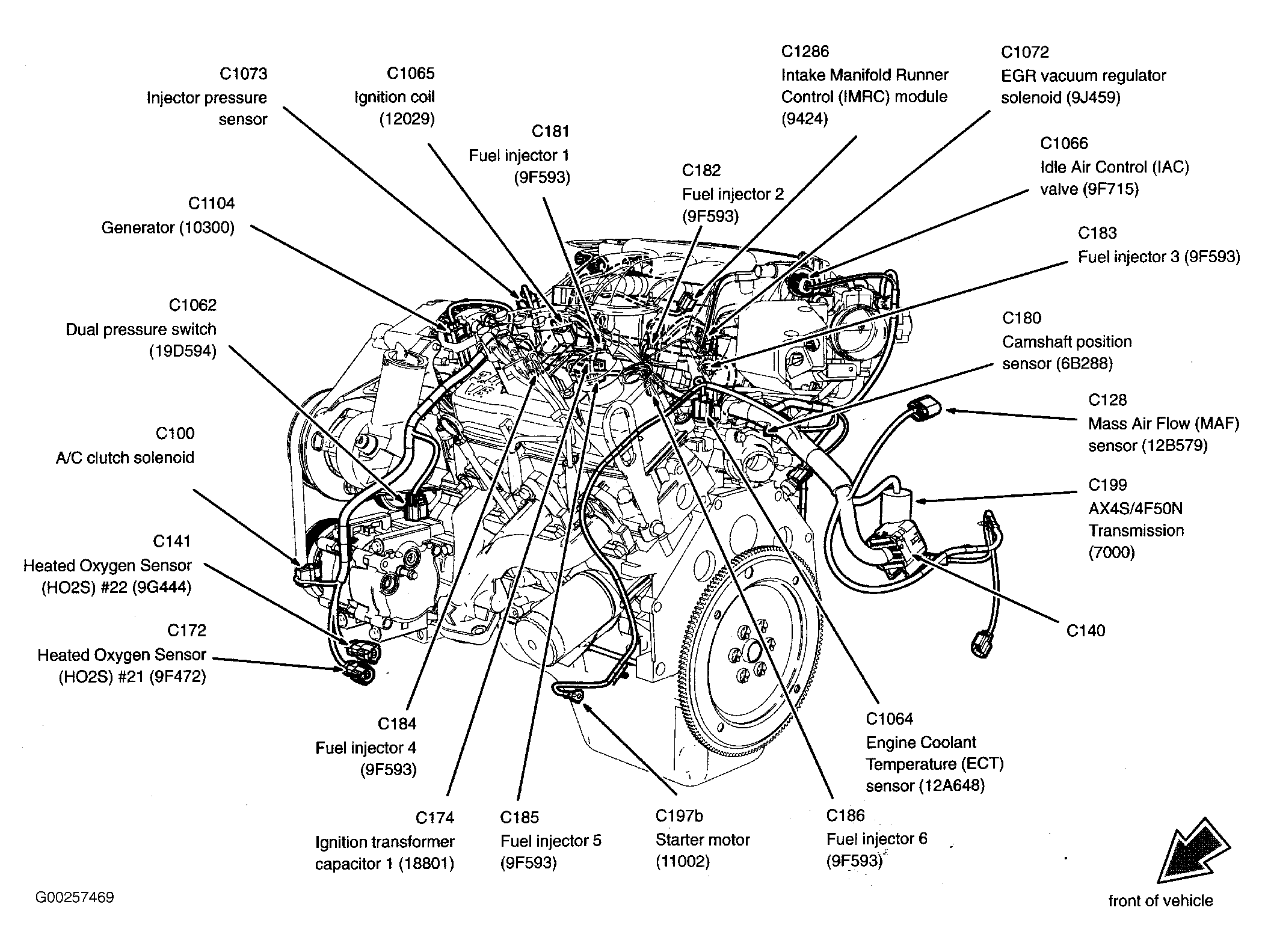

| Intake Manifold Runner Control (IMRC) Module | Top rear of engine. See Figure . |
| Passenger's Air Bag Module | Behind right side of dash, near glove box. See Figure . |

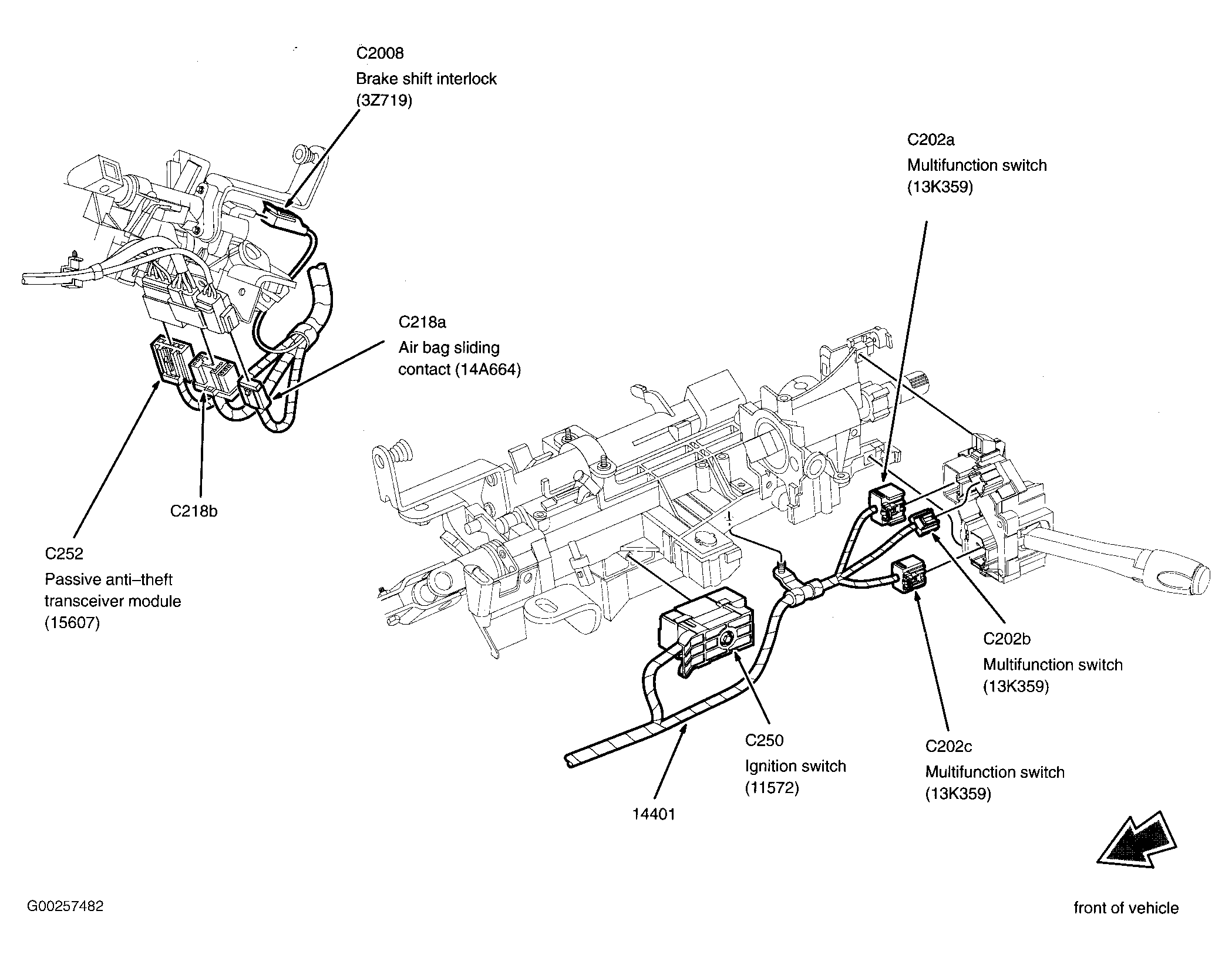

| Passive Anti-Theft System Transceiver Module | On steering column, near ignition switch. See Figure . |

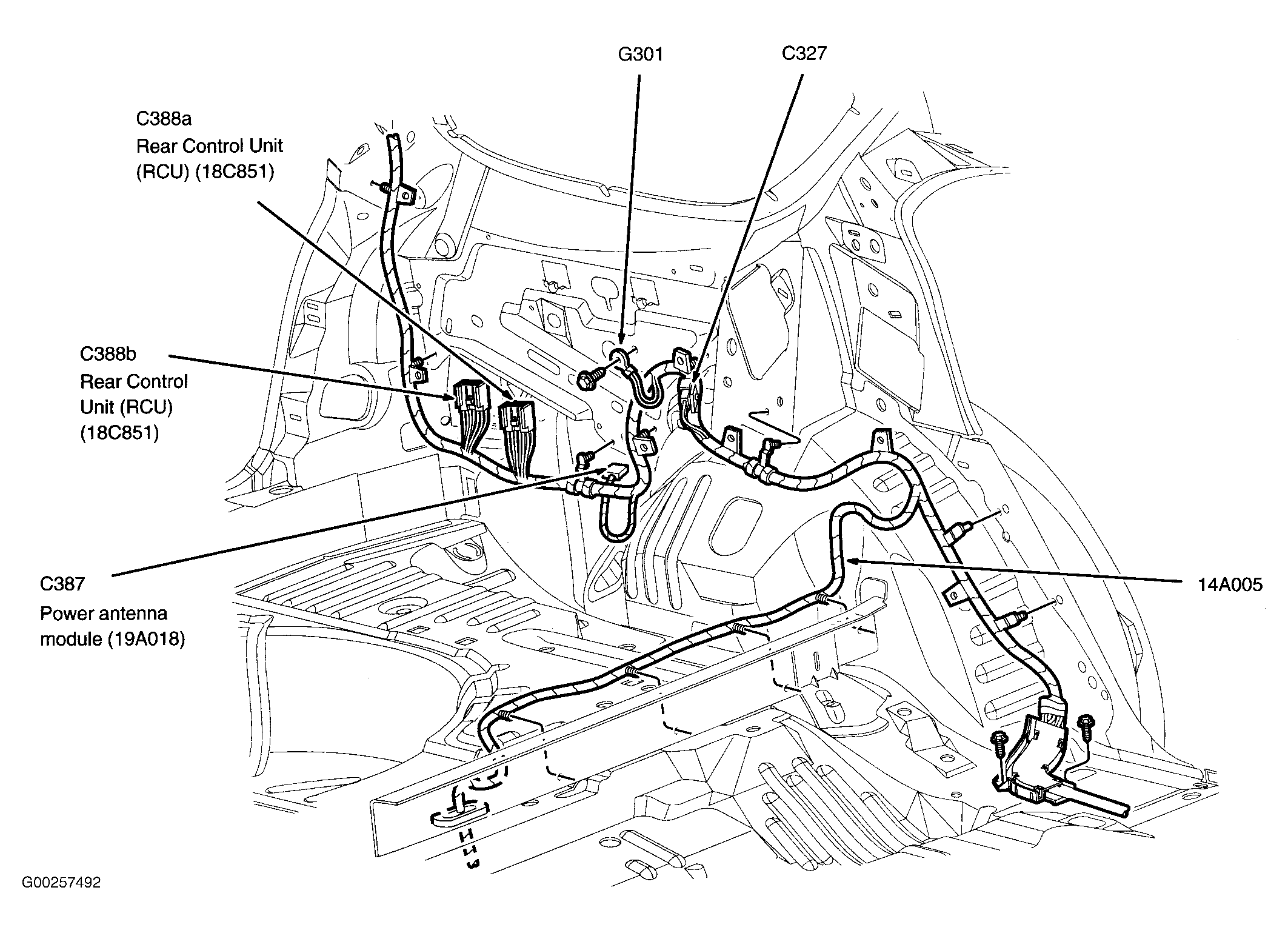

| Power Antenna Module | In left side of luggage compartment. See Figure . |

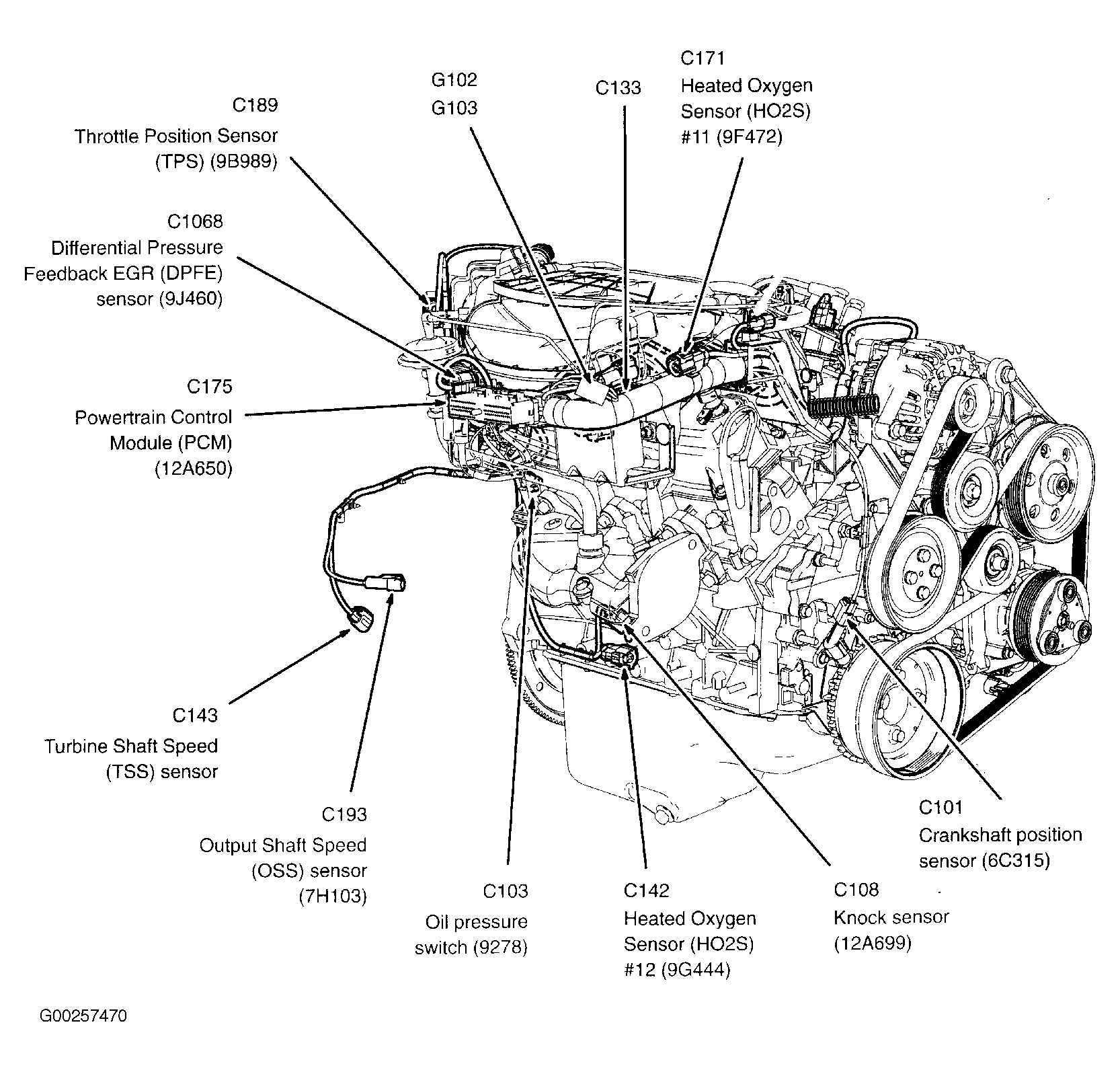

| Powertrain Control Module (3.0L, 2V) | Right rear corner of engine compartment. See Figure . |

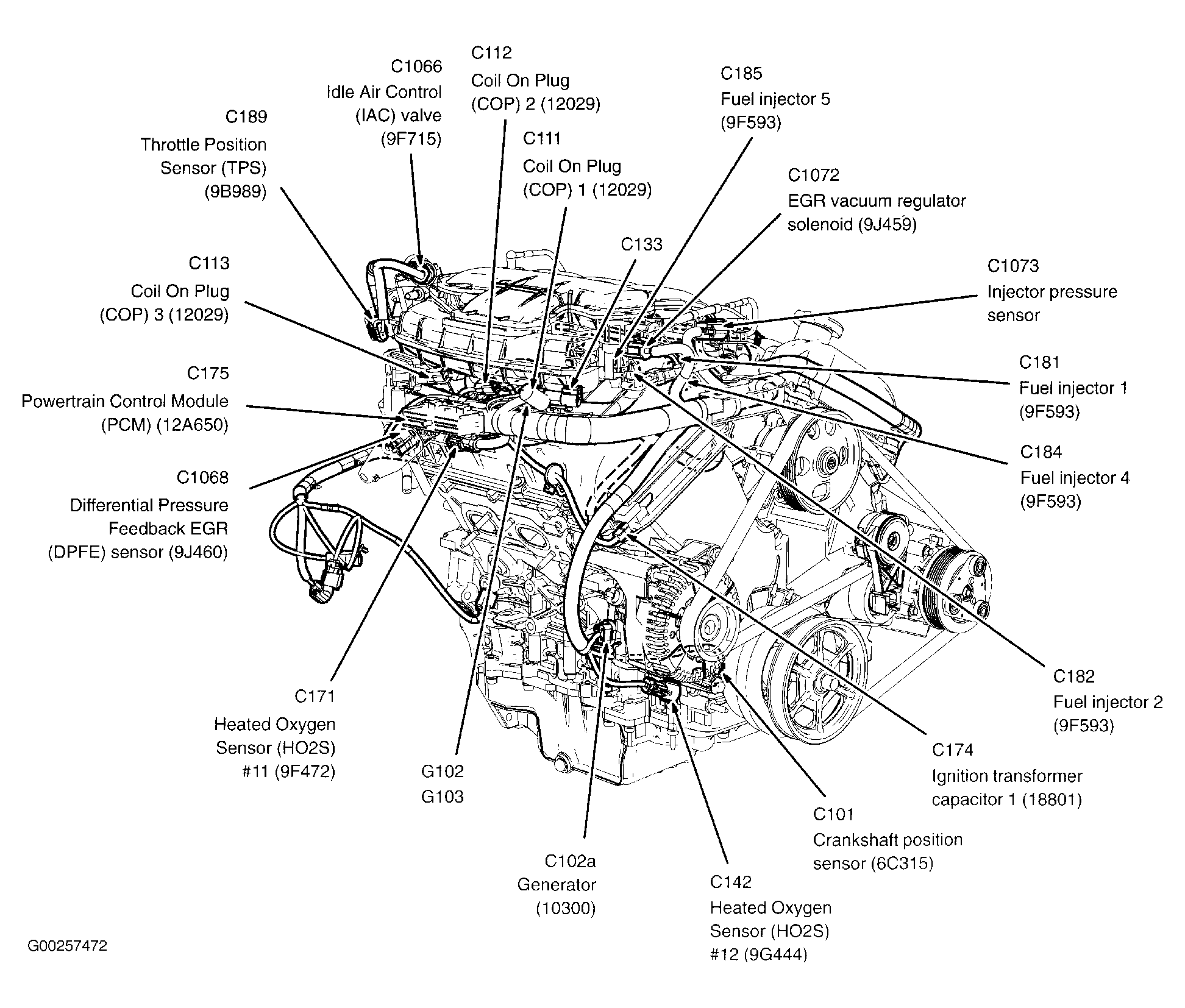

| Powertrain Control Module (3.0L, 4V) | Right rear corner of engine compartment. See Figure . |

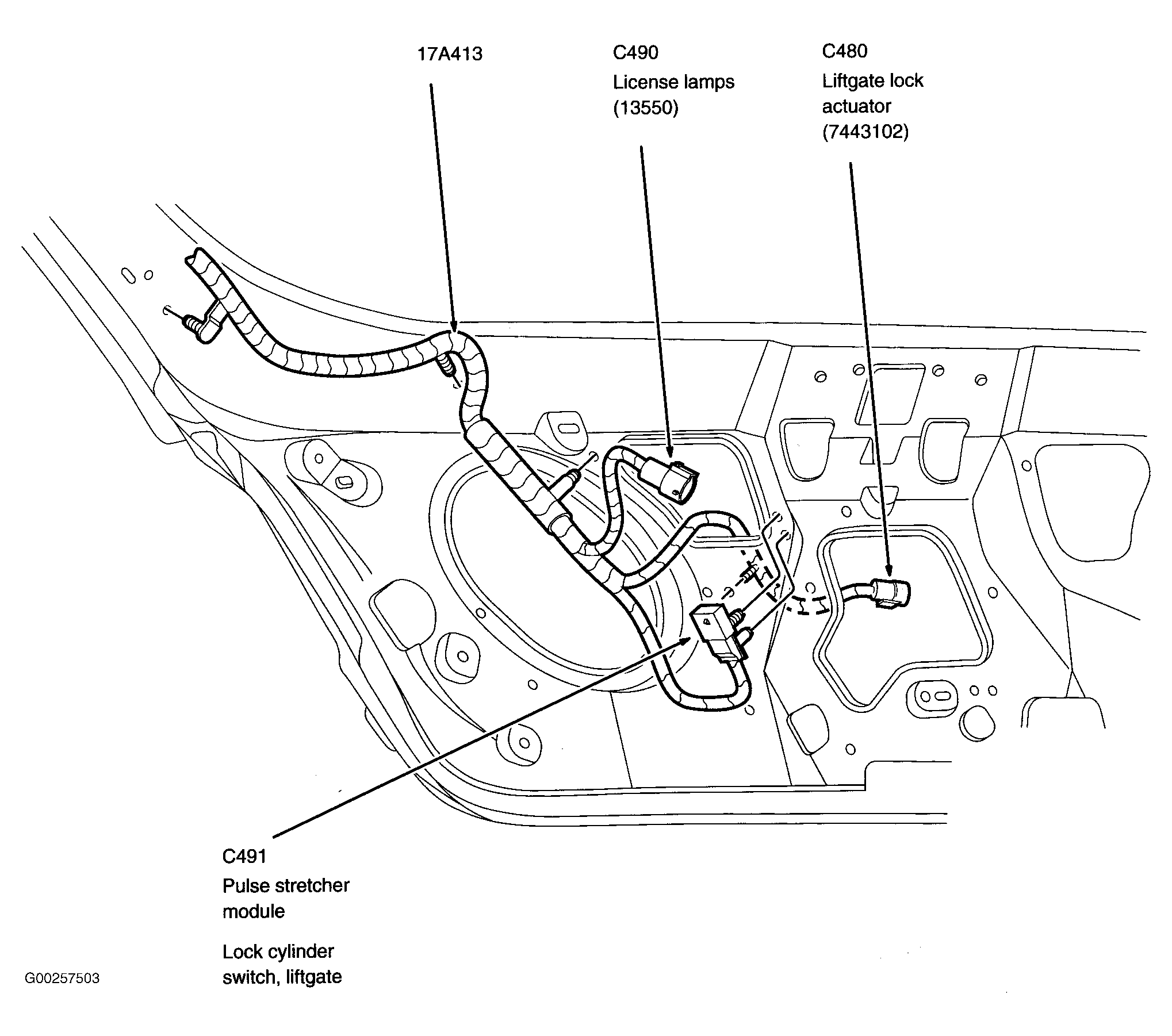

| Pulse Stretcher Module (Wagon) | In liftgate. See Figure . |
| Rear Control Unit | In left side of luggage compartment. See Figure . |
| Remote Climate Control (RCC) Module | Behind center of dash, near glove box. See Figure . |
| Restraints Control Module | Under center of dash. See Figure . |

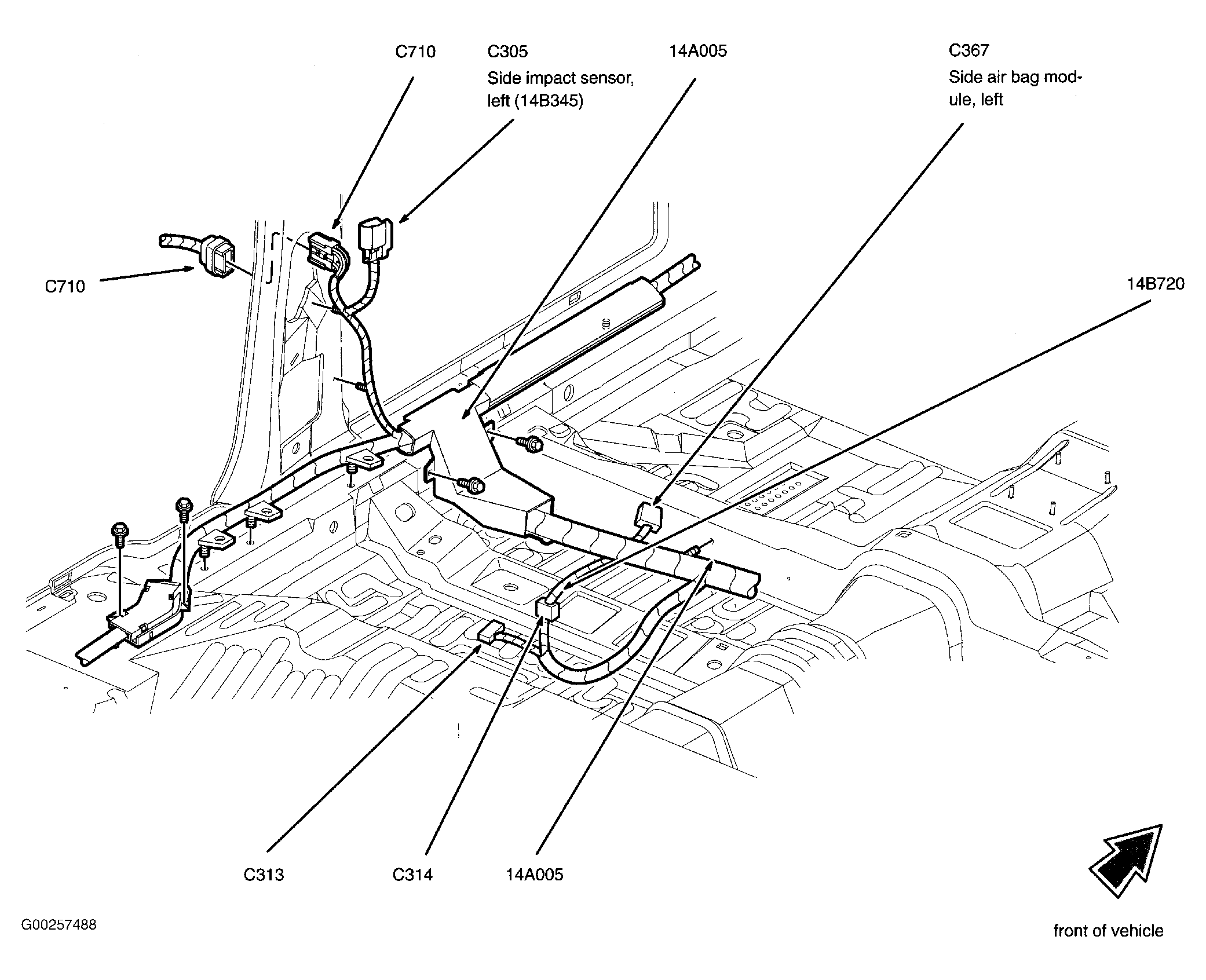

| Side Air Bag Module, Left | Inside outer portion of left front seat back.Figure . |
| Side Air Bag Module, Right | Inside outer portion of right front seat back.Figure . |
