Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | On left side of engine compartment. See Figure . |
| Central Security Module | Behind top right side of dash. See Figure . |
| Daytime Running Lamps (DRL) Module | Left front corner of engine compartment. See Figure . |

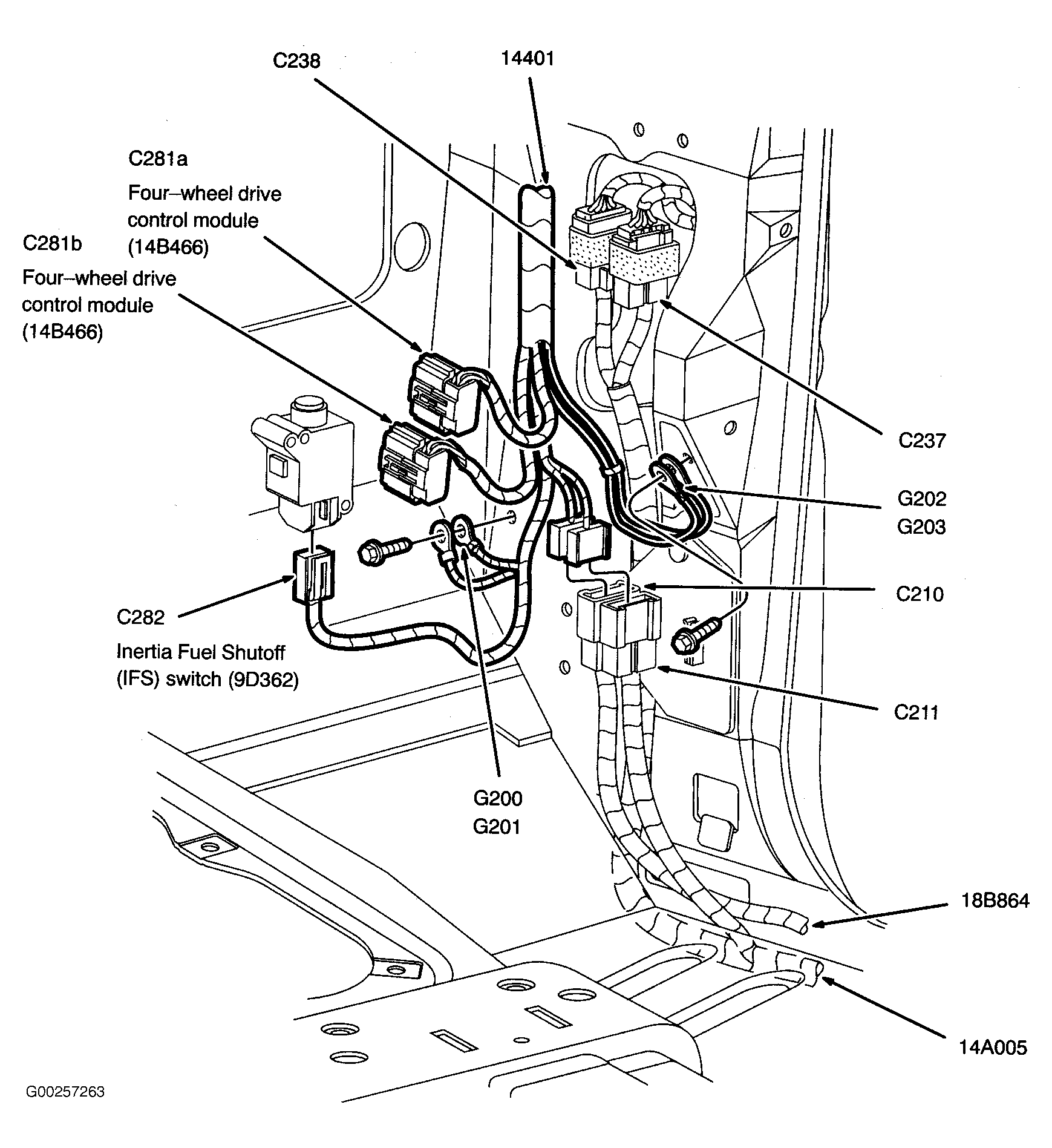

| Four-Wheel Drive Control Module | At right kick panel. See Figure . |

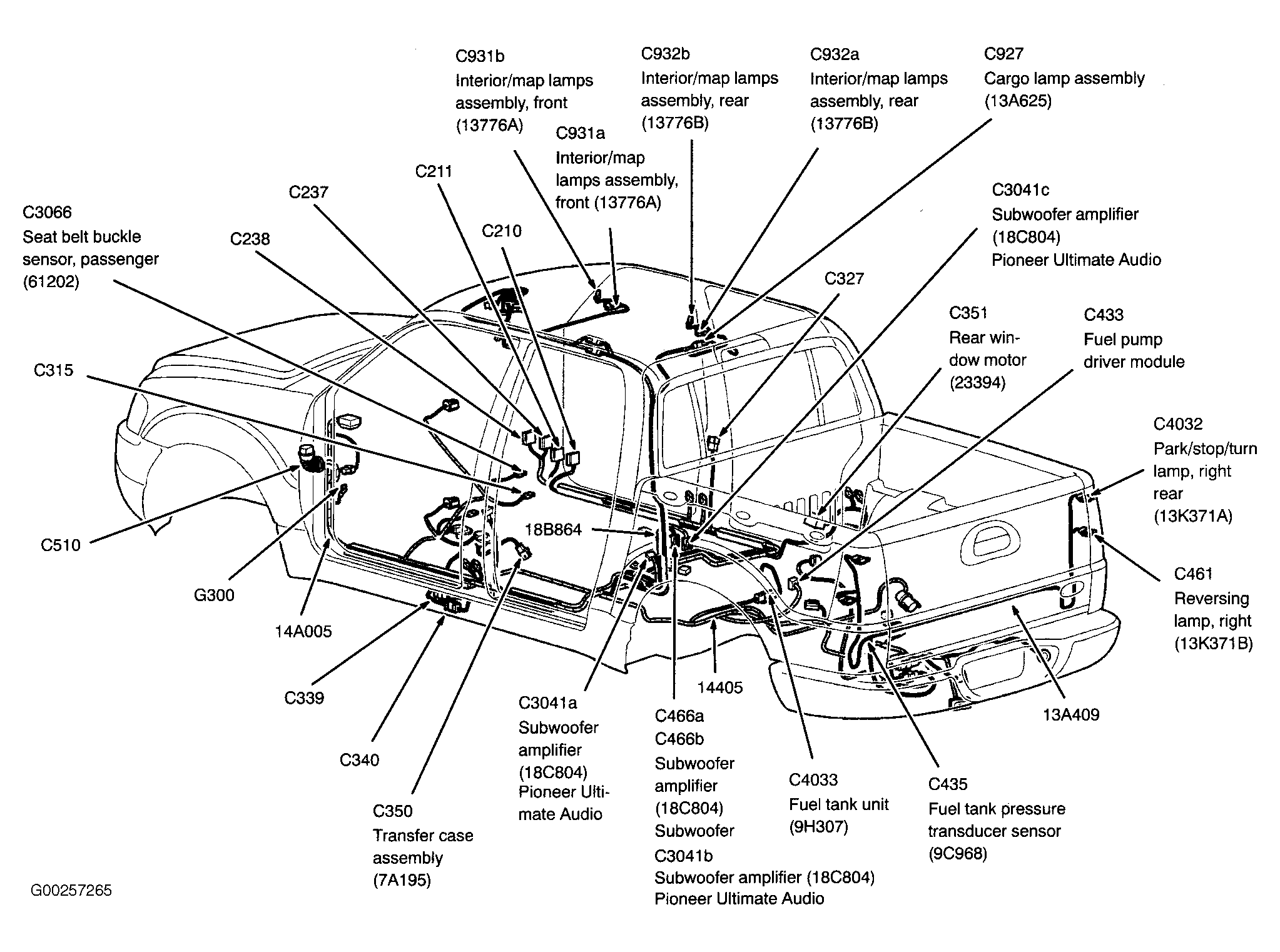

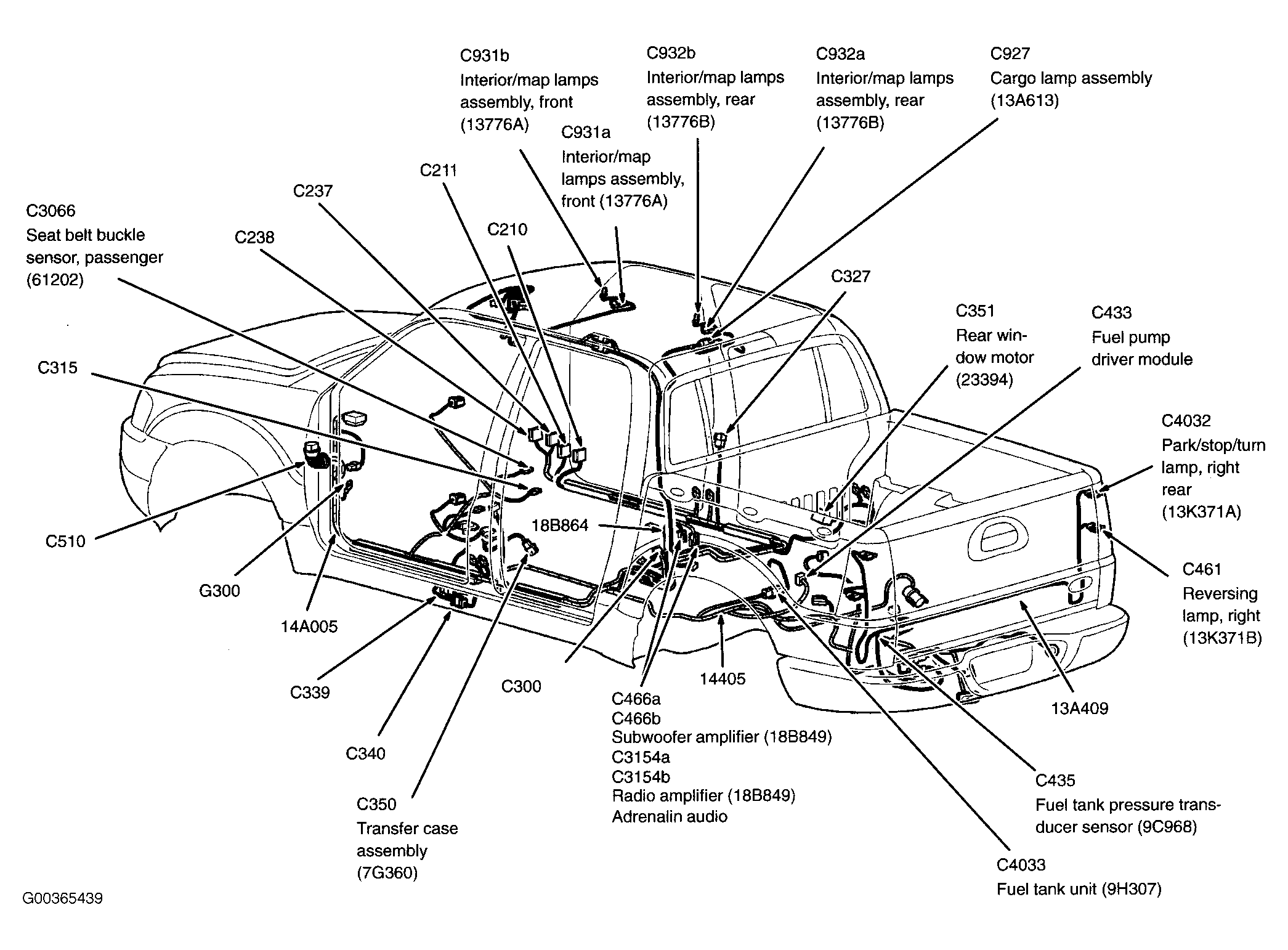

| Fuel Pump Driver Module | Near fuel tank. See Figure . |

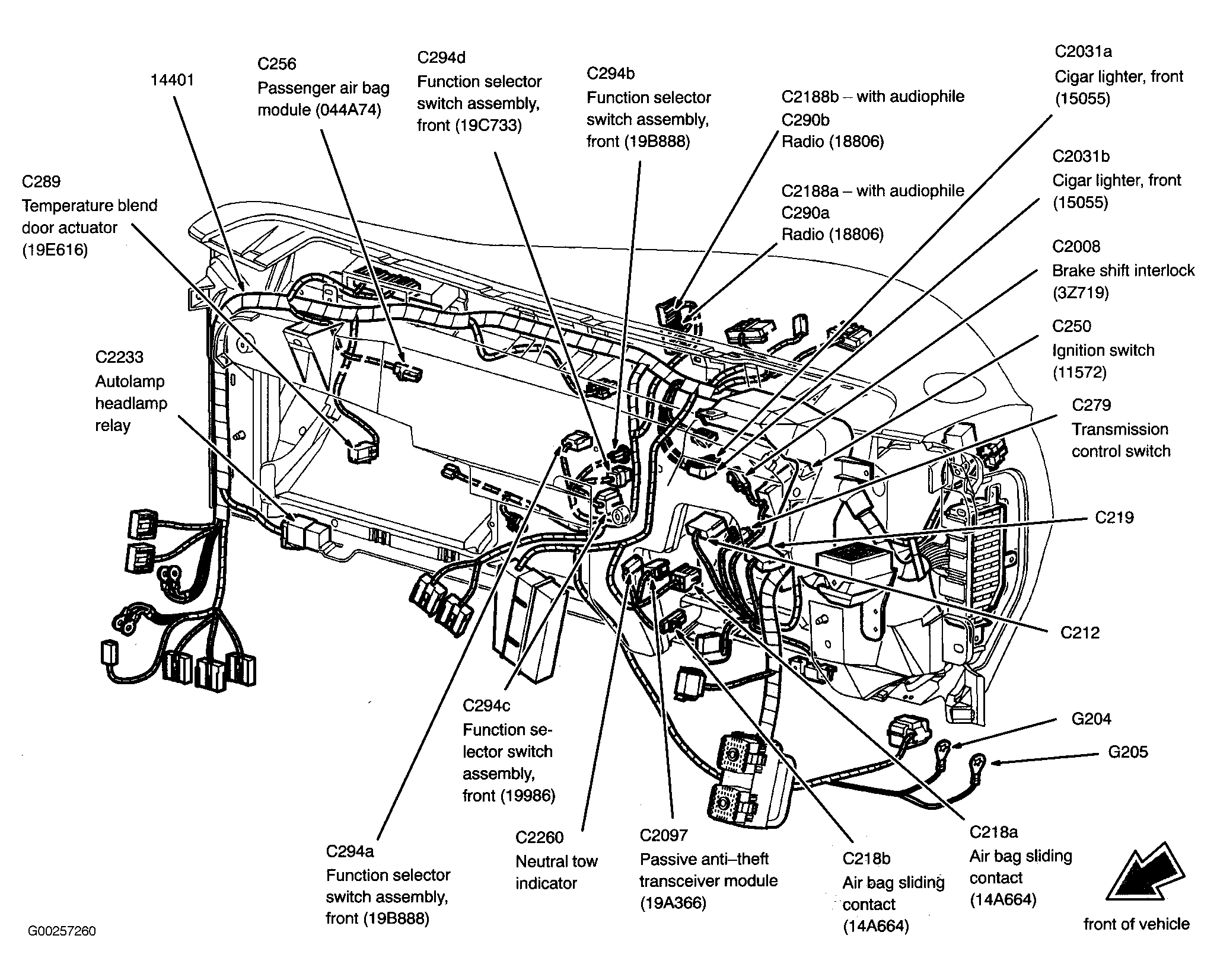

| Passenger Air Bag Module | On right side of dash. See Figure . |

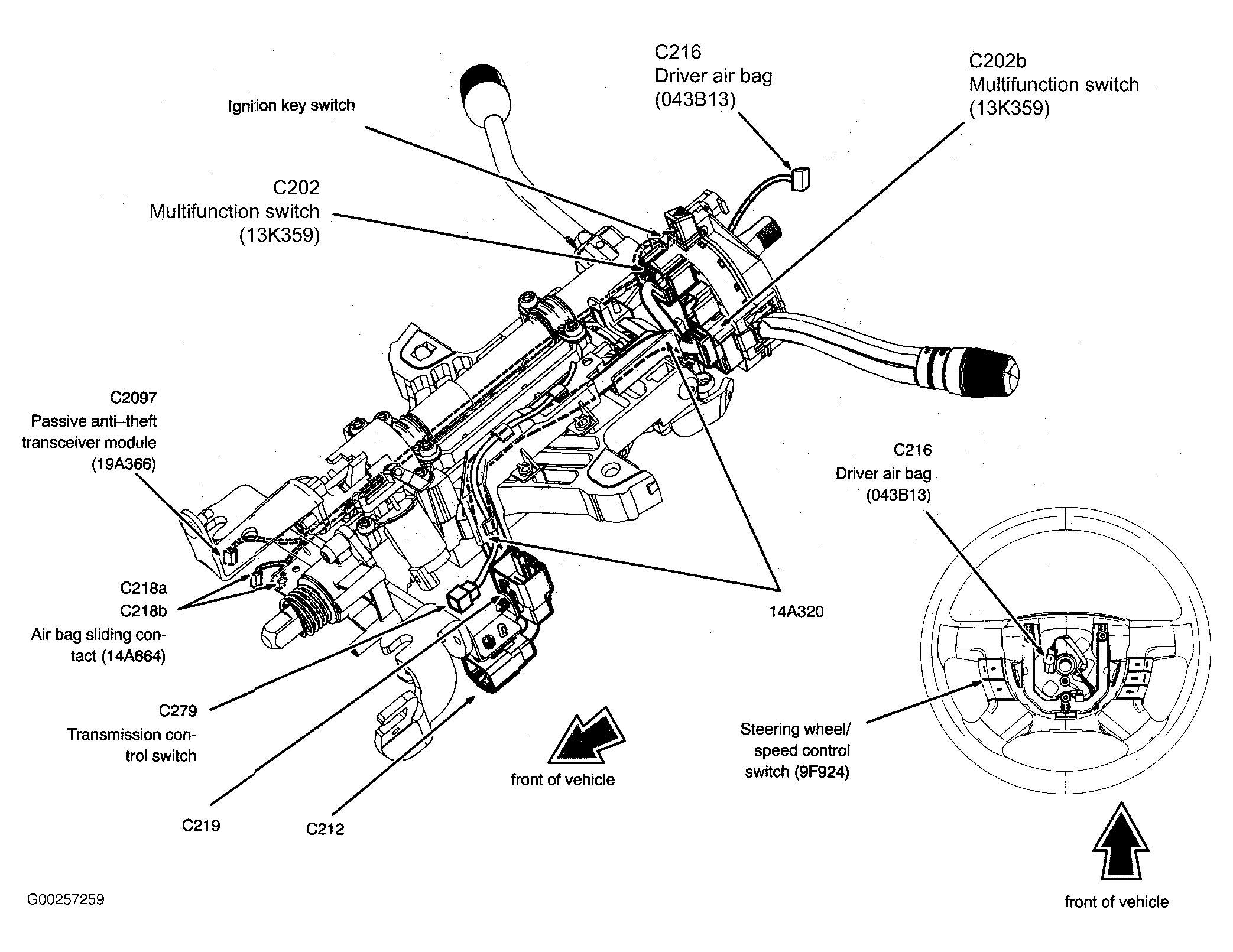

| Passive Anti-Theft Transceiver Module | In steering column assembly. See Figure . |
| Powertrain Control Module (PCM) | Mounted through firewall. See Figure . |

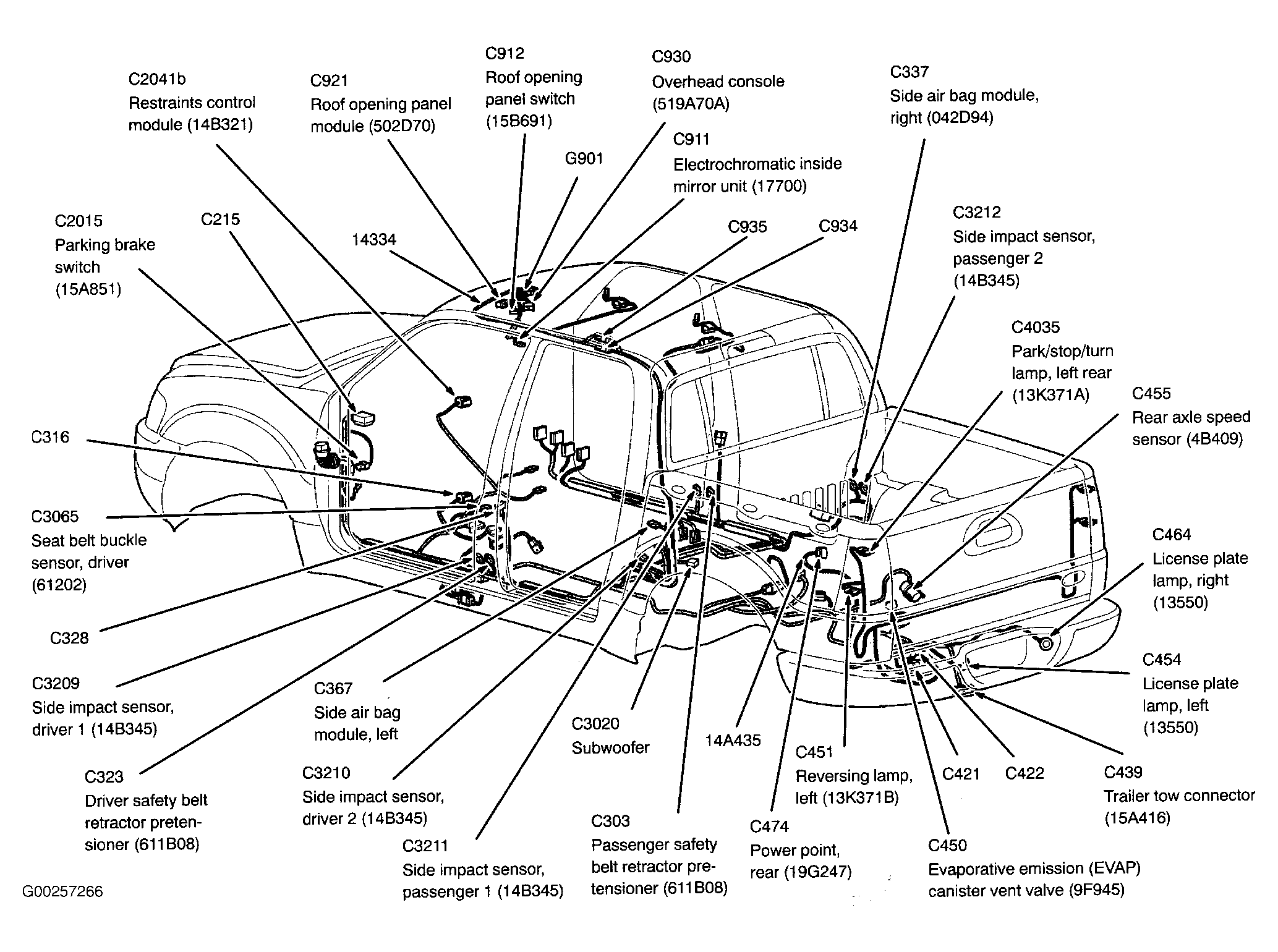

| Restraints Control Module | Behind lower center of dash. See Figure . |
| Roof Opening Panel Module | At front center of roof. See Figure . |
| Side Air Bag Module (Left) | On center of left "C" pillar. See Figure . |
| Side Air Bag Module (Right) | On center of right "C" pillar. See Figure . |
