Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

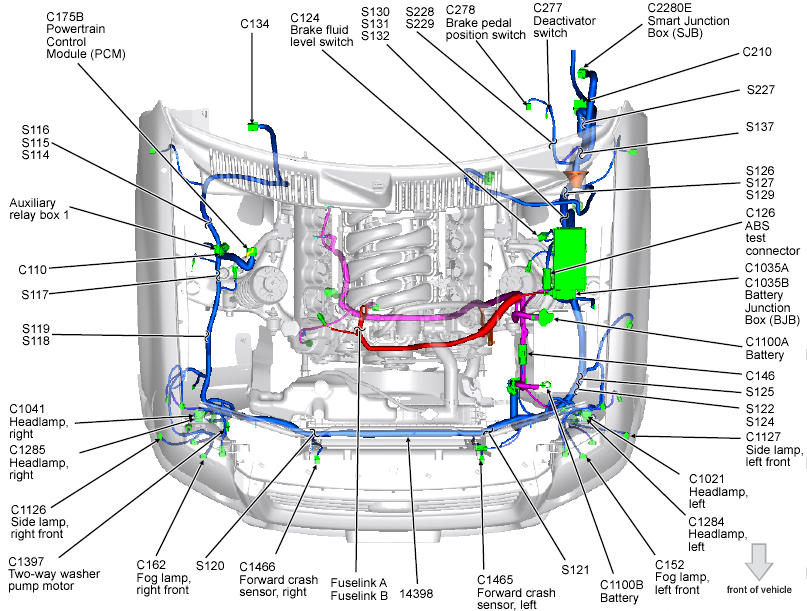

| ABS Control Module | Left front of engine compartment. See Figure. |

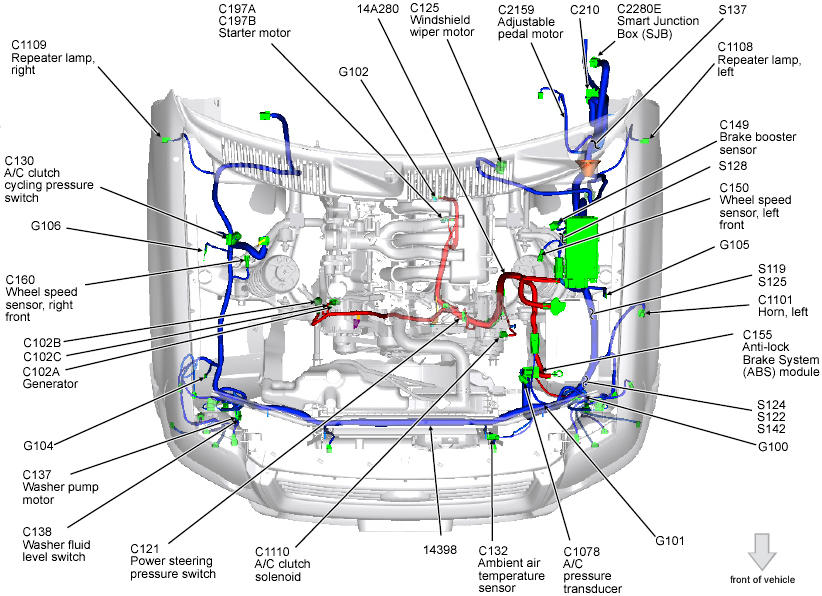

| Anti-Lock Brake System (ABS) Module | Left front of engine compartment. See Figure. |
| Driver Seat Module | Driver's seat. See Figure. |

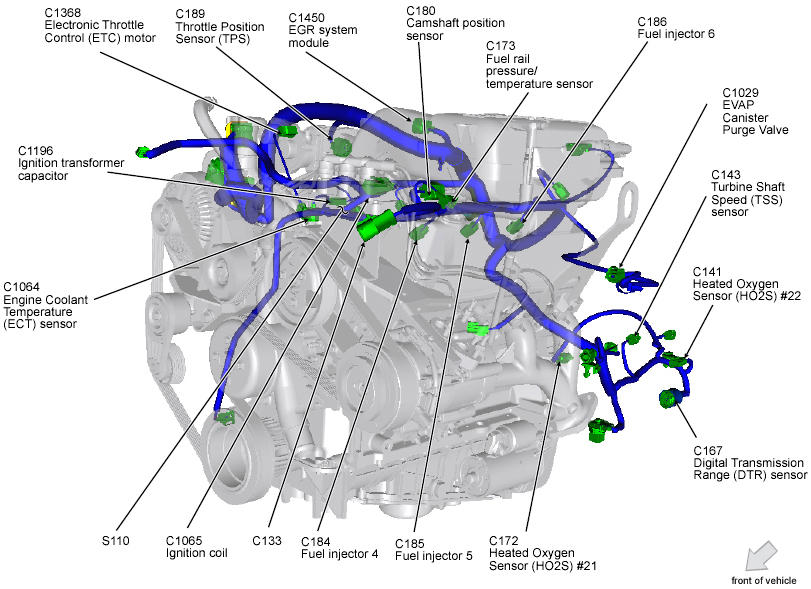

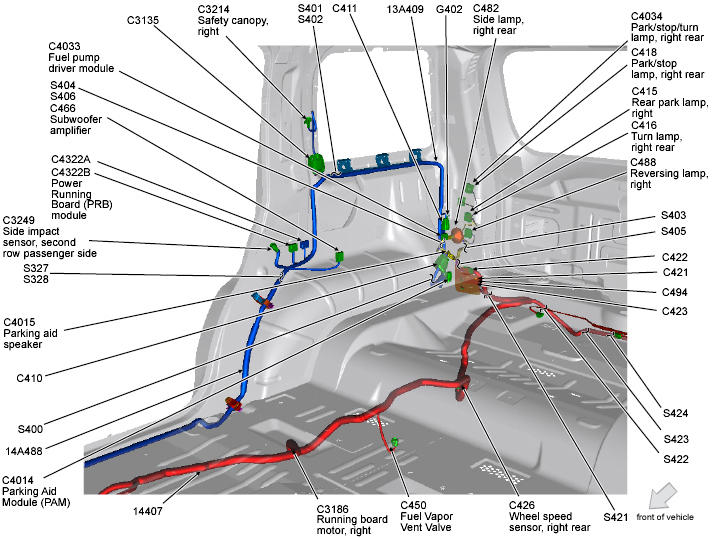

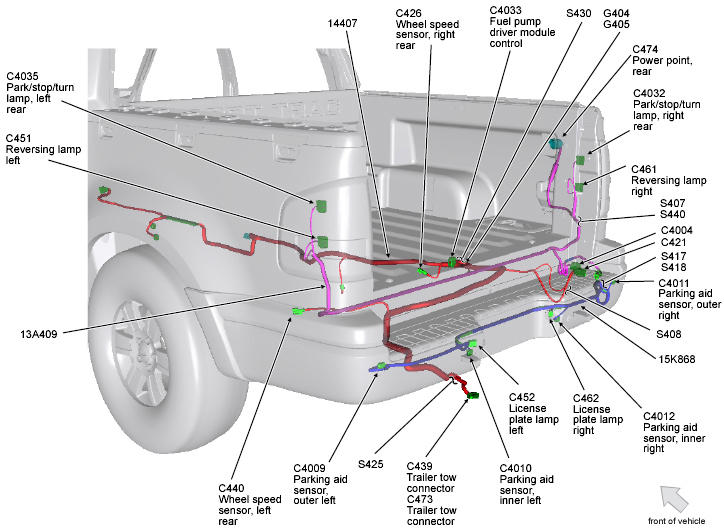

| EGR System Module | Top of engine. See Figure. |
| Four-Wheel Drive Control Module | Right side of dash. See Figure. |
| Front Blower Motor Speed Controller | Center of HVAC unit. See Figure. |
| Fuel Pump Driver Module (Except Sport Trac) | Right "D" pillar. See Figure. |
| Fuel Pump Driver Module (Sport Trac) | Right rear of vehicle. See Figure. |

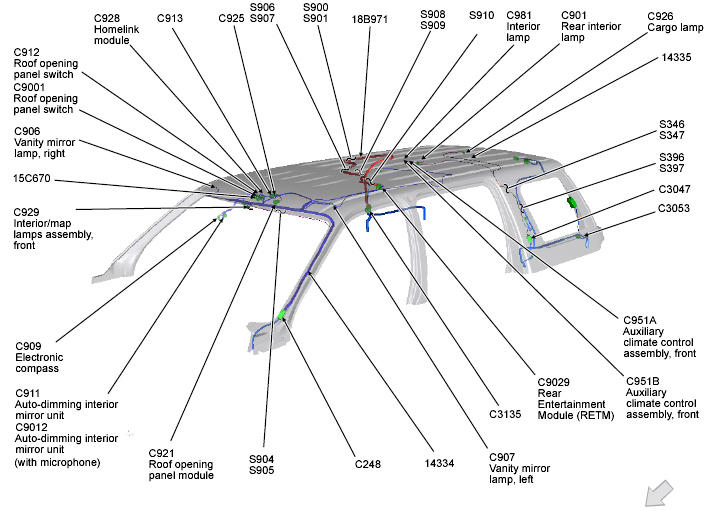

| Homelink Module | Center front of roof. See Figure. |
| HVAC Module (DATC) | Center of dash. See Figure. |
| Occupant Classification Sensor (OCS) Module | Front passenger's seat. See Figure. |
| Parking Aid Module (PAM) | Right "D" pillar. See Figure. |
| Passenger Air Bag Module | Right side of dash. See Figure. |
| Passive Anti-Theft Transceiver | Steering column. See Figure. |
| Power Running Board (PRB) Module | Above right wheelwell. See Figure. |

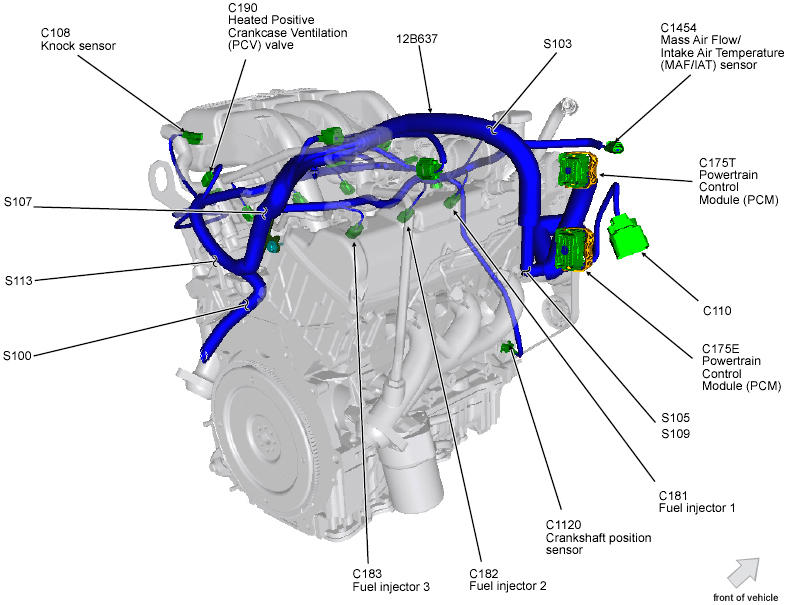

| Powertrain Control Module (PCM) (4.0L) | Right side engine. See Figure. |
| Powertrain Control Module (PCM) (4.6L) | Right side of engine. See Figure. |
| Rear Wiper Module | Center of liftgate. See Figure. |

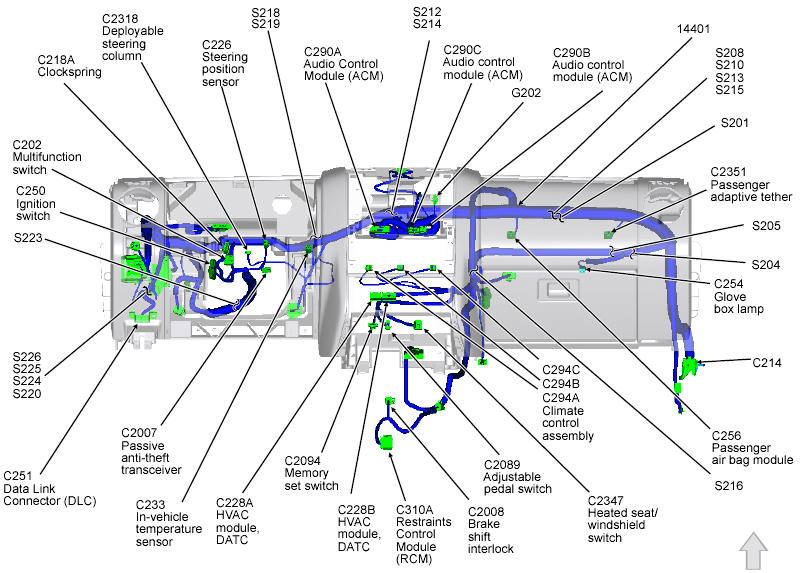

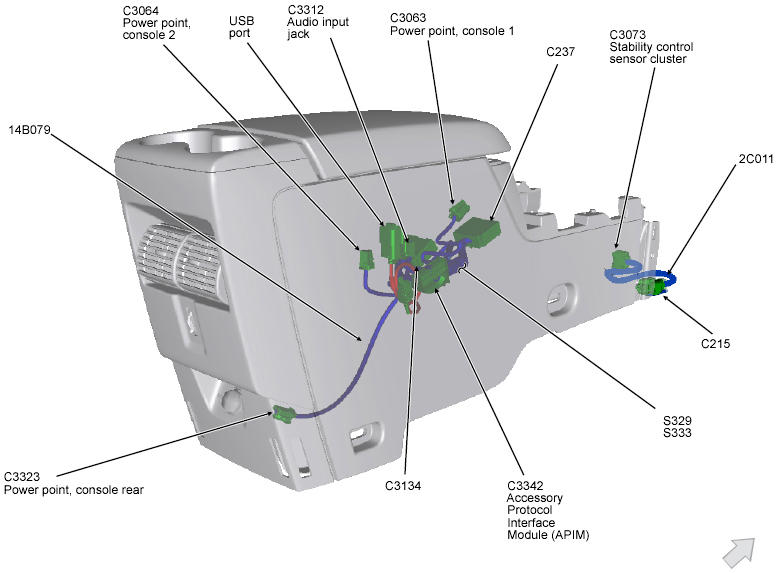

| Restraints Control Module (RCM) | Center floor console. See Figure. |
| Roof Opening Panel Module | Center front of roof. See Figure. |

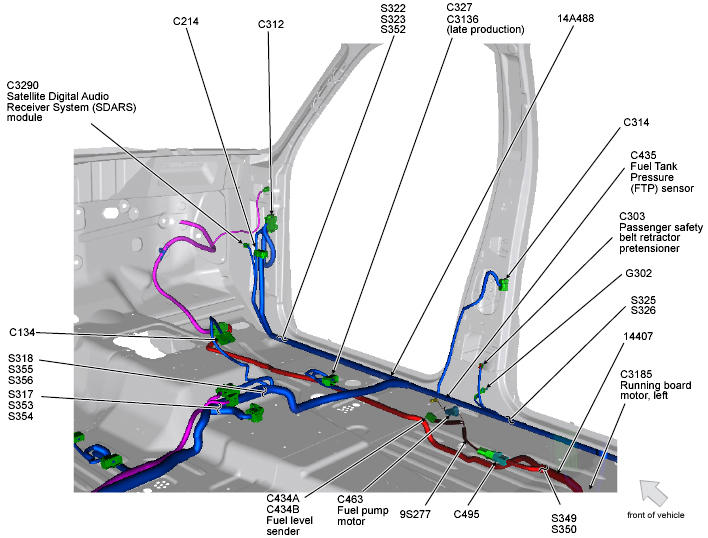

| Satellite Digital Audio Receiver System (SDARS) Module | Right kick panel. See Figure. |
| Side Air Bag Module (Left) | Left side of driver's seat back. See Figure. |
| Side Air Bag Module (Right) | Right side of front passenger's seat back. See Figure. |

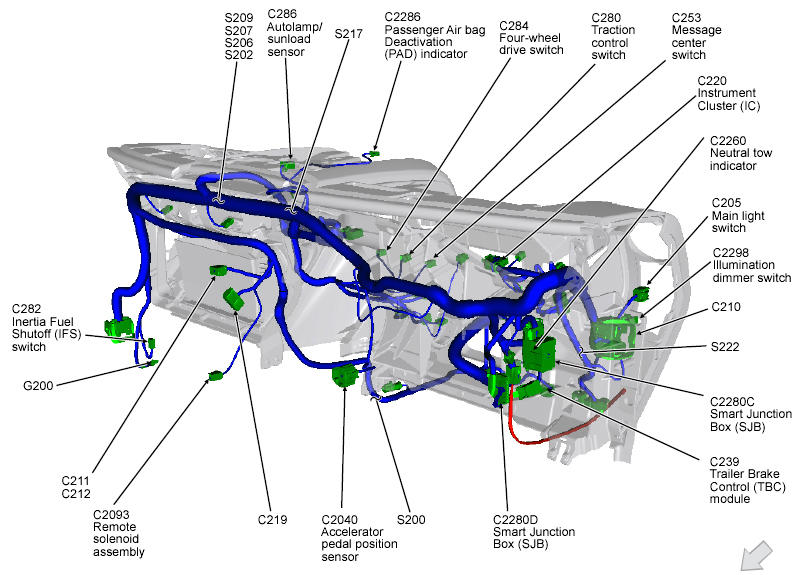

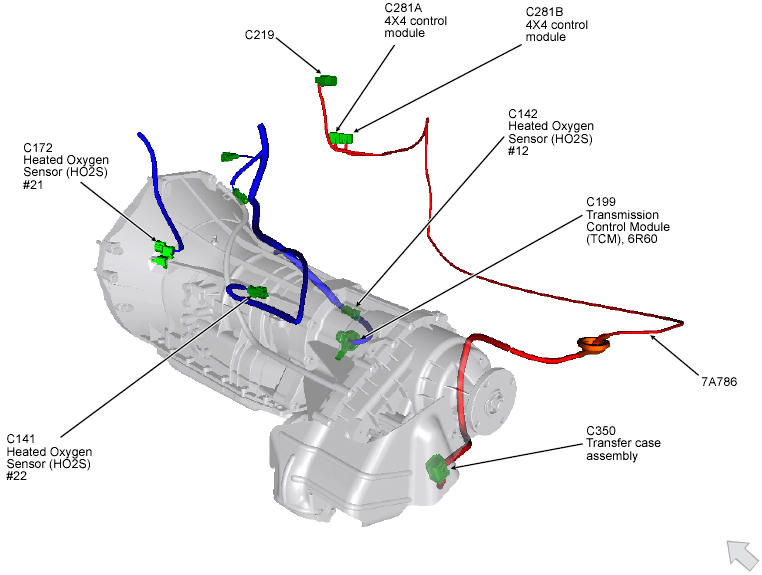

| Trailer Electronic Brake Control Module | Left side of dash. See Figure. |
| Transmission Control Module (TCM) | Right side of transmission. See Figure. |
