Transfer Case

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
If equipped. Remove the skid plate bolts and the skid plate.

Courtesy of FORD MOTOR COMPANY
If the transfer case is to be disassembled, drain the fluid from the transfer case. Refer to: Transfer Case Draining and Filling .
Remove the rear driveshaft Refer to: Rear Driveshaft .
Remove the Front driveshaft. Refer to: Front Driveshaft .
Remove the transmission support insulator. Refer to: Transmission Support Insulator .
Disconnect the vent hose from the transfer case.

Courtesy of FORD MOTOR COMPANY
Disconnect the transfer case range sensor connector and detach the wiring harness retainer clip from the transfer case.

Courtesy of FORD MOTOR COMPANY
Detach the wiring harness retainer clips from the transfer case.

Courtesy of FORD MOTOR COMPANY
Disconnect the electrical connector and detach the wiring harness retainer clip from the transfer case.

Courtesy of FORD MOTOR COMPANY

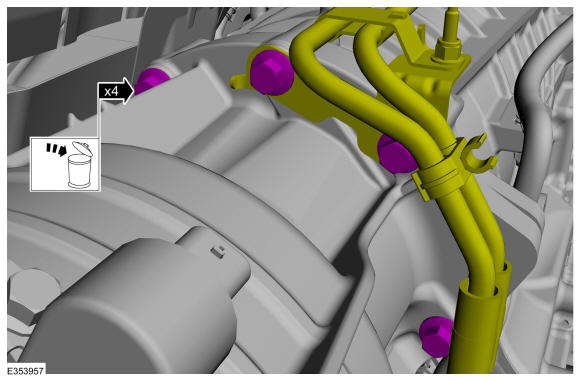

Remove and discard the transfer case-to-transmission bolts.

Courtesy of FORD MOTOR COMPANY

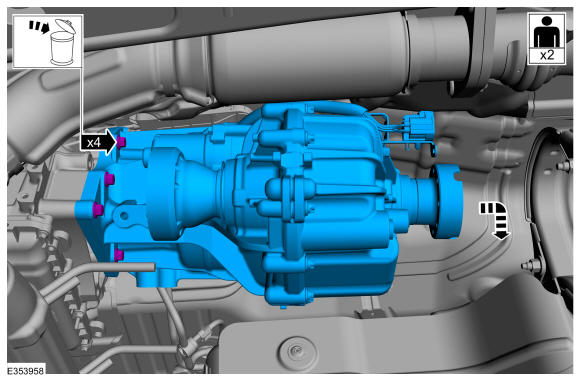

NOTE: An assistant will be required to remove the transfer case.
- Remove and discard the transfer case-to-transmission bolts.
- Separate the transfer case from the transmission.
- Remove the transfer case and lower it from the vehicle.
Courtesy of FORD MOTOR COMPANY
If installing a new transfer case: Disconnect the electrical connector and electrical wiring harness retainer.

Courtesy of FORD MOTOR COMPANY
If installing a new transfer case: Remove the retainers and wiring harness.

Courtesy of FORD MOTOR COMPANY
