Power Transfer Unit

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

  1. NOTE: This step is only necessary when installing a new component.

    If equipped, install the PTU temperature sensor harness bracket.

    Torque

    : 11 Nm

    GFD814270Courtesy of FORD MOTOR COMPANY

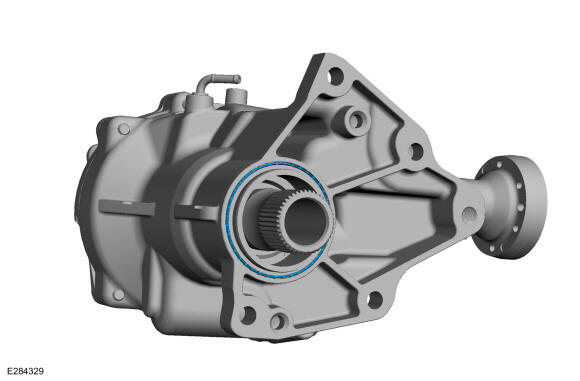

  2. Install the new PTU to transmission compression seal.
    GFD814323Courtesy of FORD MOTOR COMPANY

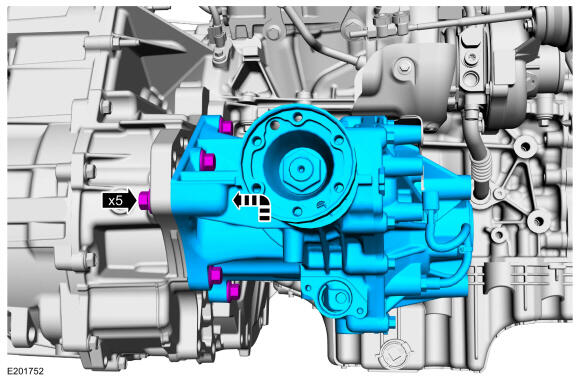

  3. Install the PTU and mounting bolts.

    Torque

    : 103 Nm

    GFD814360Courtesy of FORD MOTOR COMPANY
  4. Install the PTU support bracket and bolts.

    Torque

    : 48 Nm

    GFD812487Courtesy of FORD MOTOR COMPANY
  5. Install the intermediate shaft. Refer to: Intermediate Shaft .

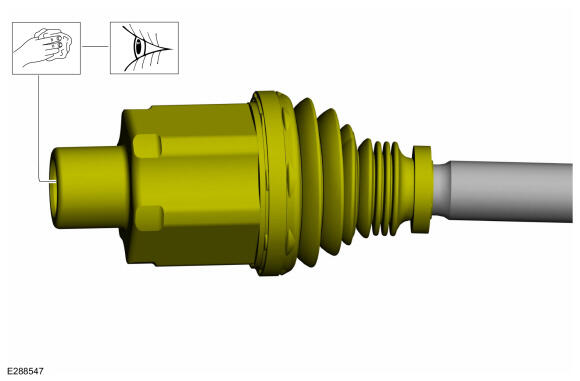

  6. Clean and inspect the inboard end of the halfshaft.
    GFD811265Courtesy of FORD MOTOR COMPANY

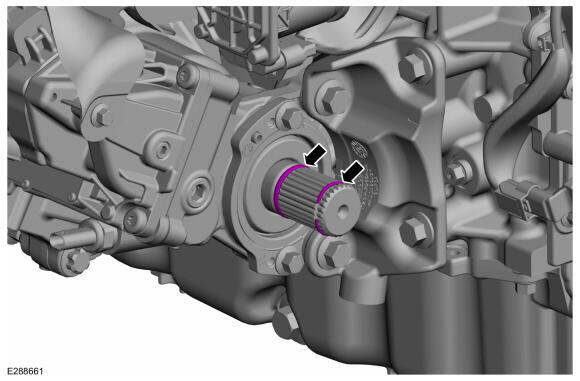

  7. Install the O-Ring and circlip on the intermediate shaft.
    GFD811267Courtesy of FORD MOTOR COMPANY

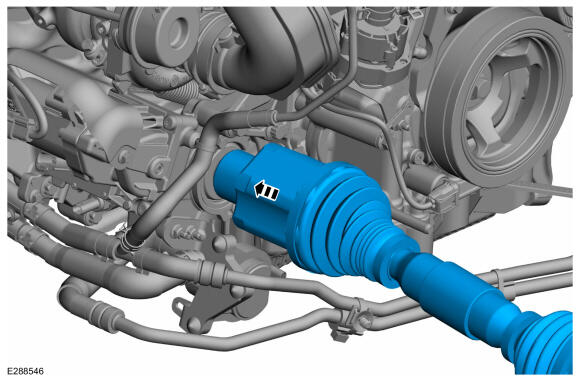

  8. Install the RH halfshaft on the intermediate shaft.
    GFD811271Courtesy of FORD MOTOR COMPANY
  9. Install the vent hose retainer.
    GFD814358Courtesy of FORD MOTOR COMPANY
  10. Connect the PTU vent hose.
    GFD814313Courtesy of FORD MOTOR COMPANY
  11. Install the coolant pump and hoses. Install the pump mounting nuts.

    Torque

    : 9 Nm

    GFD814312Courtesy of FORD MOTOR COMPANY
  12. Install the PTU cooling system hoses and connect the hose clamps. Remove the hose clamp pliers.
    GFD814278Courtesy of FORD MOTOR COMPANY
  13. If equipped, connect the PTU temperature sensor and install retainers.
    GFD814311Courtesy of FORD MOTOR COMPANY
  14. Connect the PTU motor connectors.
    GFD814310Courtesy of FORD MOTOR COMPANY
  15. Connect the auxillary pump connector and retainers.
    GFD814274Courtesy of FORD MOTOR COMPANY
  16. Install the PTU heat shield and PTU heat shield bolts.

    Torque

    : 11 Nm

    GFD814319Courtesy of FORD MOTOR COMPANY

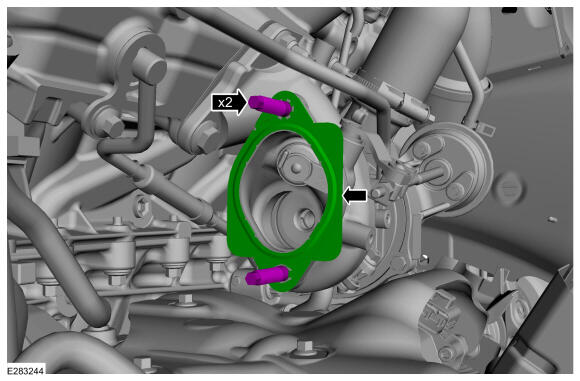

  17. NOTE: Make sure that new components are installed.

    Install new studs and gasket.

    Torque

    : 25 Nm

    GFD814361Courtesy of FORD MOTOR COMPANY

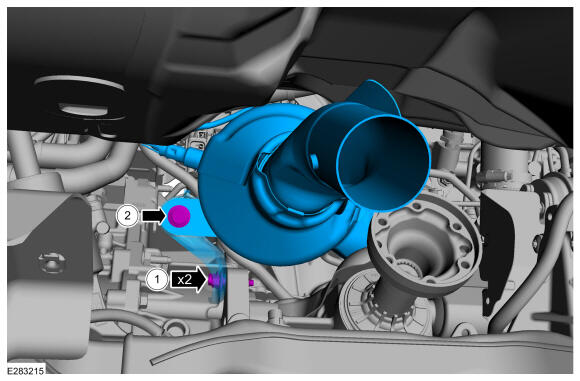

  18. NOTE: Only tighten the bolts finger tight at this stage.

    Position back the catalytic converter in the vehicle. Loosely install the catalytic converter mount bracket bolts.

    GFD814362Courtesy of FORD MOTOR COMPANY

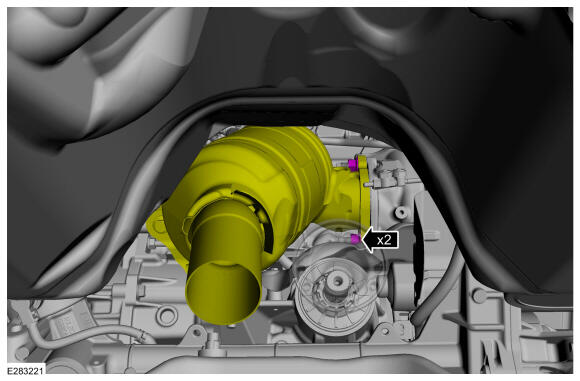

  19. Install the catalytic converter to turbo flange nuts.

    Torque

    : 48 Nm

    GFD814363Courtesy of FORD MOTOR COMPANY

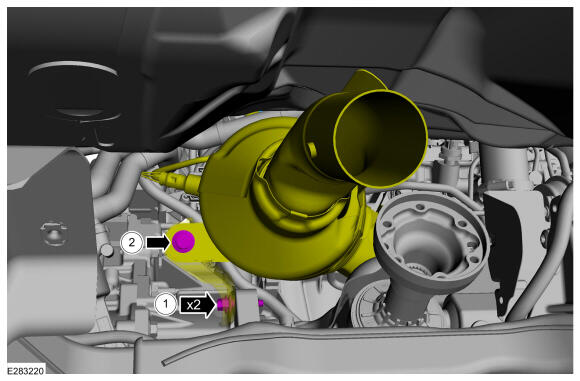

  20. Tighten the catalytic converter mount bracket bolts.

    Torque

    :Bolts: 30 NmThrough bolt: 48 Nm

    GFD814364Courtesy of FORD MOTOR COMPANY

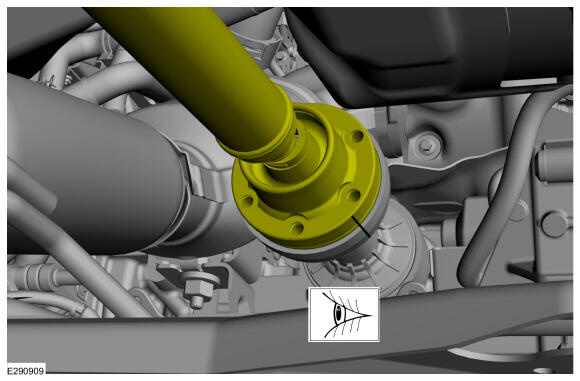

  21. NOTE: Make sure that the installation marks are aligned.
    GFD814324Courtesy of FORD MOTOR COMPANY

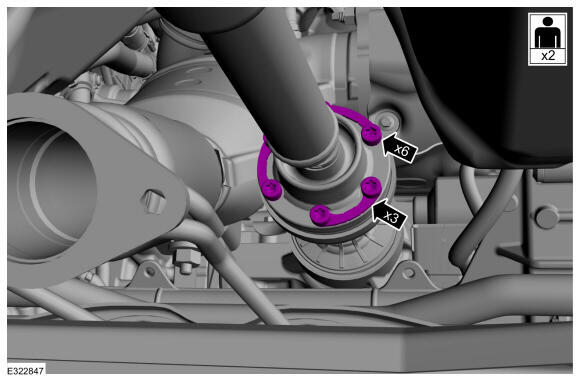

  22. Install new PTU flange bolts.

    Torque

    : 35 Nm

    GFD814365Courtesy of FORD MOTOR COMPANY
  23. Connect the catalyst monitor sensor.
    GFD813109Courtesy of FORD MOTOR COMPANY
  24. Connect the HO2S.
    GFD813127Courtesy of FORD MOTOR COMPANY
  25. Install the RHCAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
  26. Install the RH air cleaner outlet pipe. Refer to: AIR CLEANER OUTLET PIPE RH .
  27. Install the engine appearance cover.

    Torque

    :Nut: 4. 8 NmBolt: 10. 5 Nm

    GFD813011Courtesy of FORD MOTOR COMPANY
  28. Check PTU fluid level and adjust as necessary. Refer to: Power Transfer Unit Fluid Level Check .
  29. Install the front subframe. Refer to: Front Subframe .
  30. Check the engine coolant level and adjust as necessary. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  31. Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
