Fuel Tank: Removal
WARNING: This page is about a different car, the 2003 Pontiac Bonneville, 2003 Buick Park Avenue, and 2003 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.
- Release fuel system pressure. See FUEL SYSTEM PRESSURE RELEASE . Drain the fuel tank. See FUEL TANK DRAINING . Raise and support vehicle.

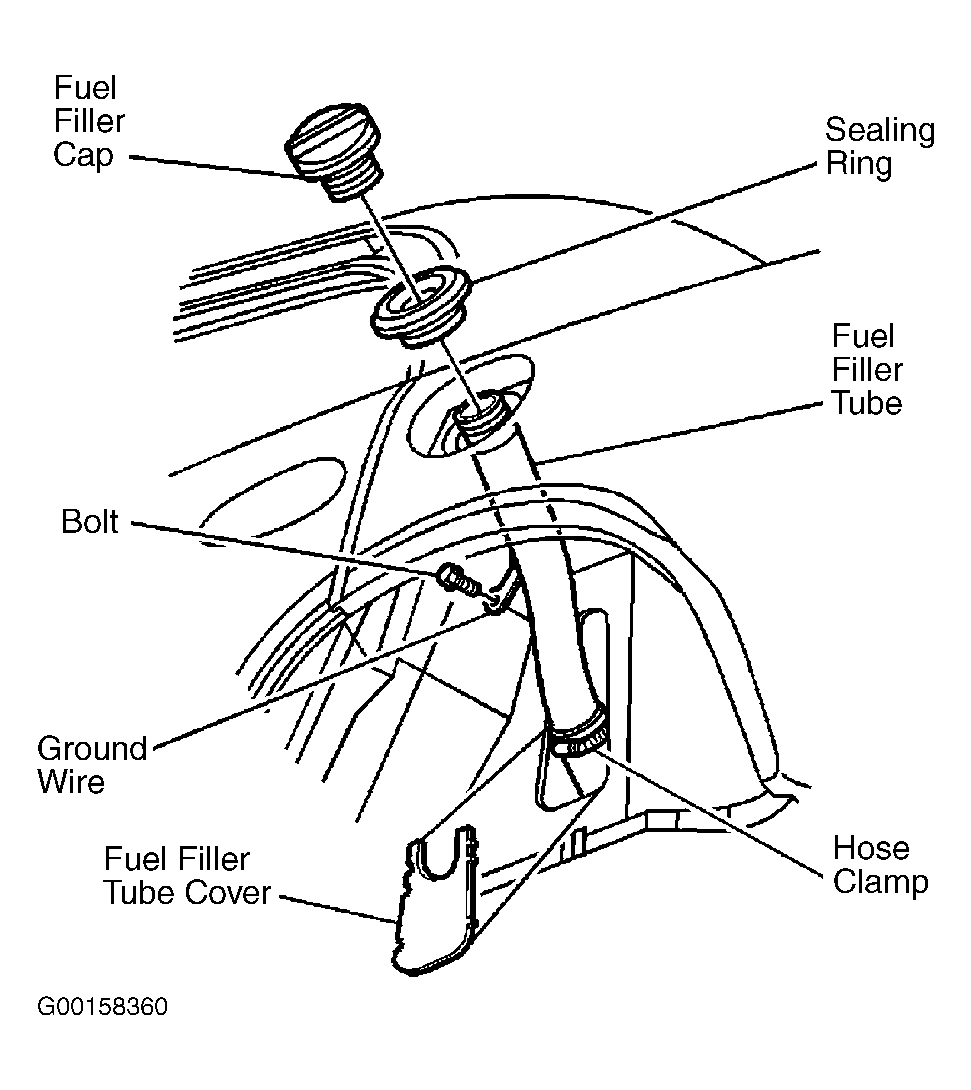

- Remove the filler pipe opening cover. See Figure. Disconnect the fuel fill hose from the fuel fill pipe. Remove the rear suspension support assembly. See appropriate REAR article in SUSPENSION.
- Disconnect the fuel feed pipe and the fuel return pipe. See FUEL LINE DISCONNECT FITTINGS . Disconnect the evaporative emission pipe from the EVAP canister.
- Remove the fuel and EVAP retainer from the frame. Disconnect the fuel sender electrical connector. Disconnect the fuel sender electrical harness from the retainers. Support the fuel tank. Remove the fuel tank strap bolts. Remove the fuel tank.
