Steering Column

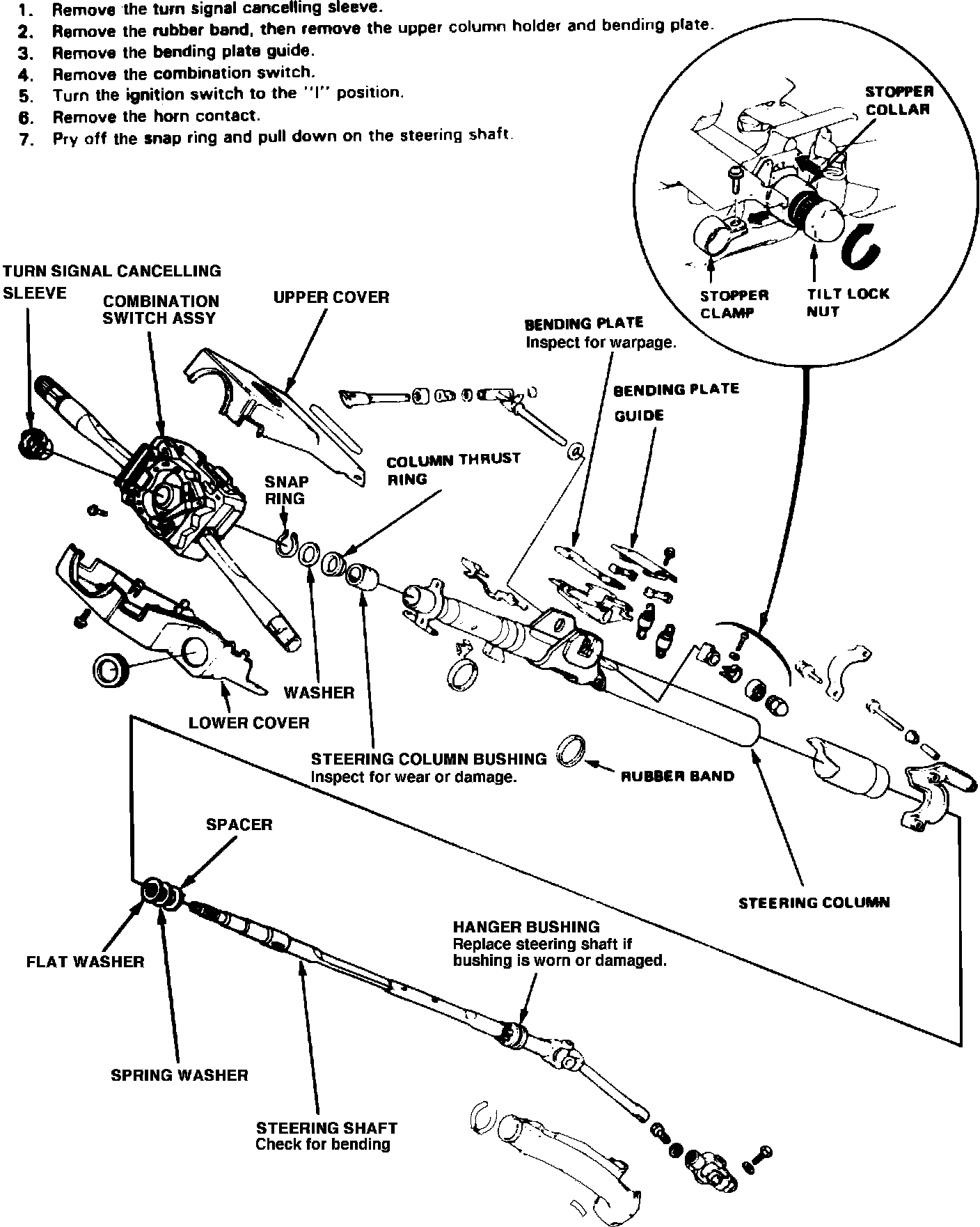

Fig. 4 Tilt steering column exploded view. 1984-87 Civic & CRX w/manual steering (conventional column similar):
