Emission Control Systems: Locations

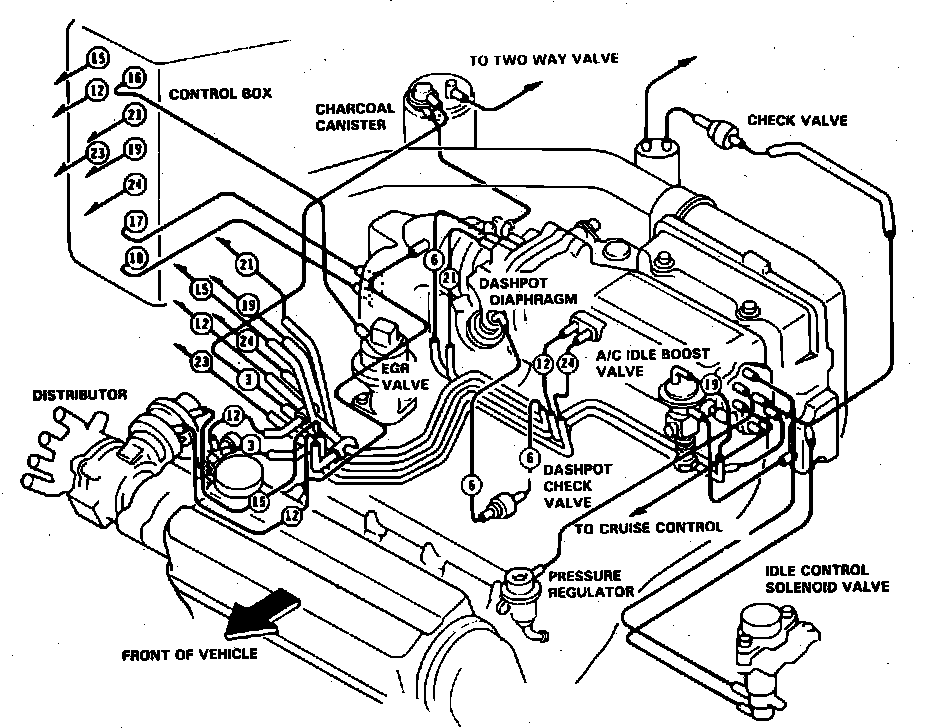

Vacuum Components & Connections (Part 1 Of 2).:

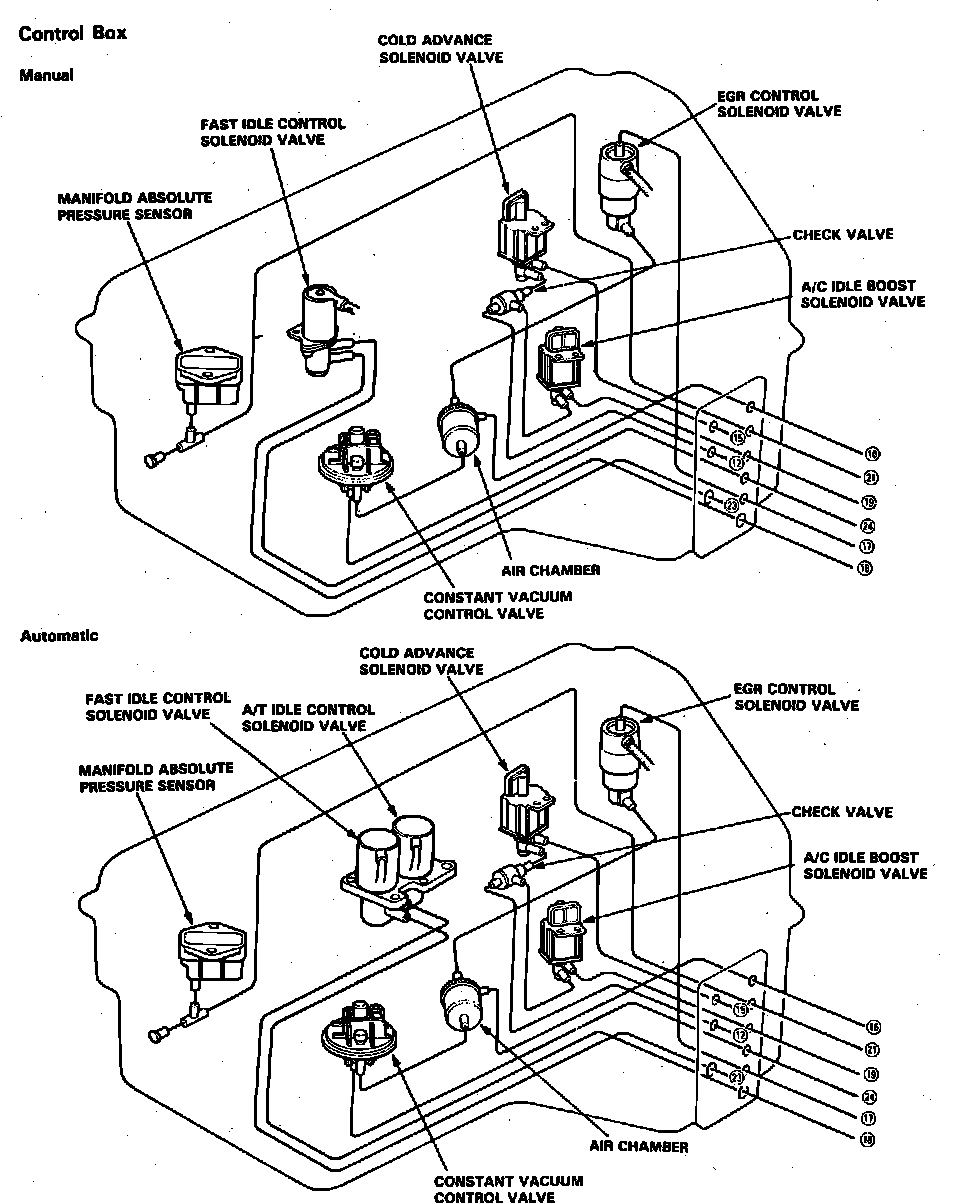

Vacuum Components & Connections (Part 1 Of 2).:




Engine Compartment

Applicable to: 1985-86 Fuel Injected Engine
